CC-DT-H 85/54 BL
CC-DT-H 85/54 BL

CC-DT-H 85/54 BL

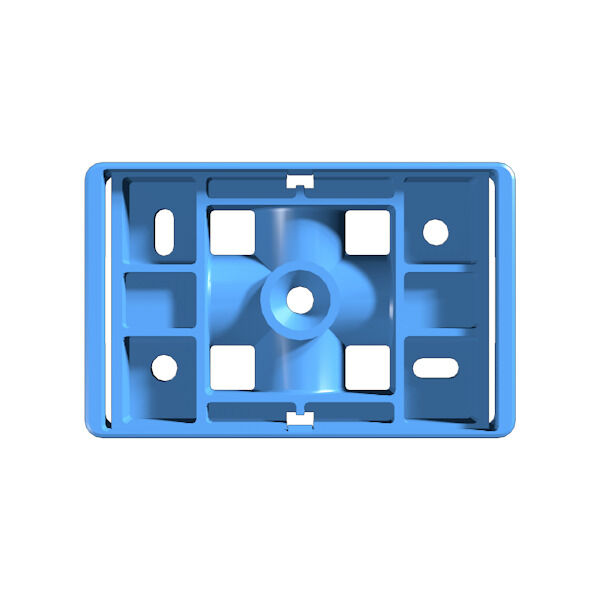

ClipCard, Accessories, 90 x 58 mm, blue

Ürün No. 2737770000
Veri sayfasını indir Pobieranie produktów
aksesuarıdır 4 İlgili ürünler 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
ClipCard, Accessories, 90 x 58 mm, blue
Order No.
2737770000
Type
CC-DT-H 85/54 BL
GTIN (EAN)
4064675211167
Qty.
20 adet

Dimensions and weights

Depth
13 mm
Depth (inches)
0,512 inch
Height
90 mm
Height (inches)
3,543 inch
Width
58 mm
Width (inches)
2,283 inch
Length
90 mm
Length (inches)
3,543 inch
Diameter
0 mm
Net weight
3,652 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    -0.003 kg CO2 eq.

General data

Ausführung
Marker holder
Basic material
Polyamide 66
Breite
58 mm
Colour
blue
Detectible in accordance with Rondotest
4.7 mm Al
Halogen
No
Length
90 mm
Number of markers per combination
1 MultiCard = Accessories
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Recommended industries
Food processing industry
UL 94 flammability rating
HB

Device markers

Diameter
0 mm
Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
