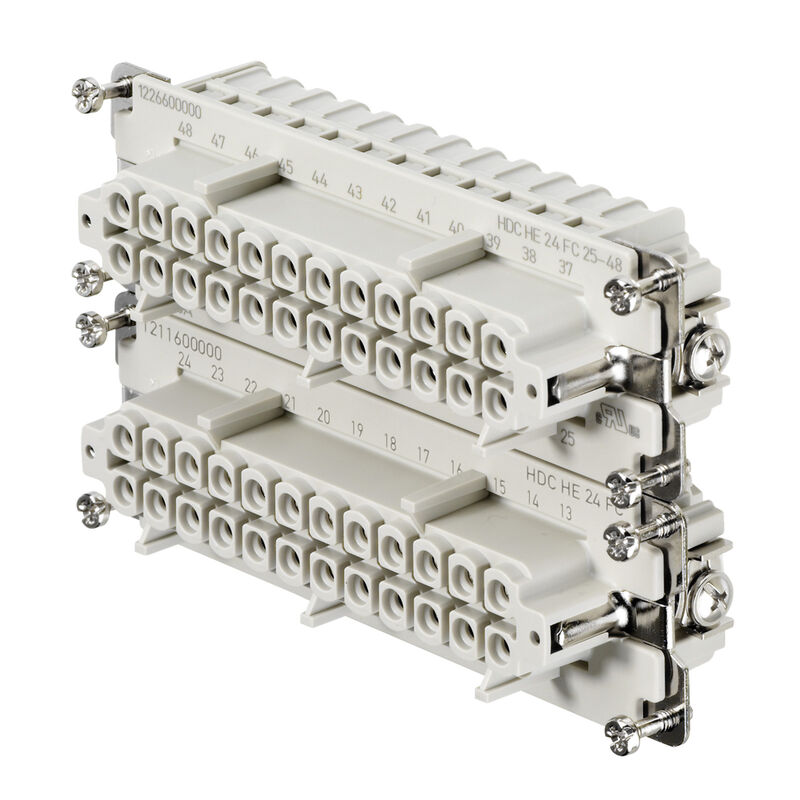

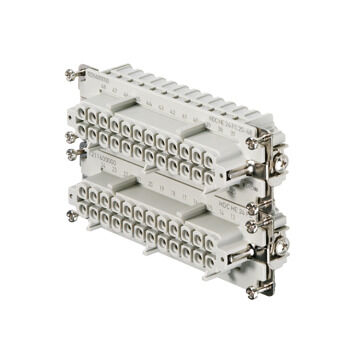

HDC insert, Female, 500 V, 16 A, Number of poles: 24, Crimp connection, Installation size: 8

Tuotteen tunnus 1226600000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 16 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 24, Crimp connection, Installation size: 8
Order No.
1226600000
Type
HDC HE 24 FC 25-48
GTIN (EAN)
4008190165567
Qty.
1 items

Dimensions and weights

Depth
111 mm
Depth (inches)
4,37 inch
Height
33,5 mm
Height (inches)
1,319 inch
Width
34 mm
Width (inches)
1,339 inch
Net weight
66 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

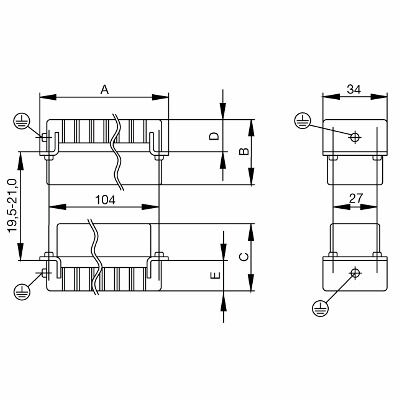

Dimensions

Bredd
34 mm
Height of socket
33,5 mm
Total length base
111 mm

General data

Basic material
Copper alloy
BG
8
Colour
beige
Conductor cross-section
4 mm²
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Number of poles
24
Number of power contacts
24
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Female
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

BG
8
Conductor cross-section, max.
4 mm²
Installation size
8
Průřez propojení AWG, max.
AWG 12
Resistencia de paso
≤2 mΩ
Sección de conexión del conductor AWG, min.
AWG 20
Sezione di collegamento cavo, rigido, min.
0,5 mm²
Stripping length, rated connection
7,5 mm
Type of connection
Crimp connection
Vezeték keresztmetszet, tömör, max.
4 mm²
Основной материал
Copper alloy
Поперечное сечение соединительного провода, мин.
0,5 mm²
配線接続断面、ワイヤエンドフェルール付 DIN 46228/4 の細径撚線、最大
4 mm²
와이어 결선 단면, 가는 꼬임, 최대
4 mm²
와이어 결선 단면, 가는 꼬임, 최소
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
