Eigenschappen

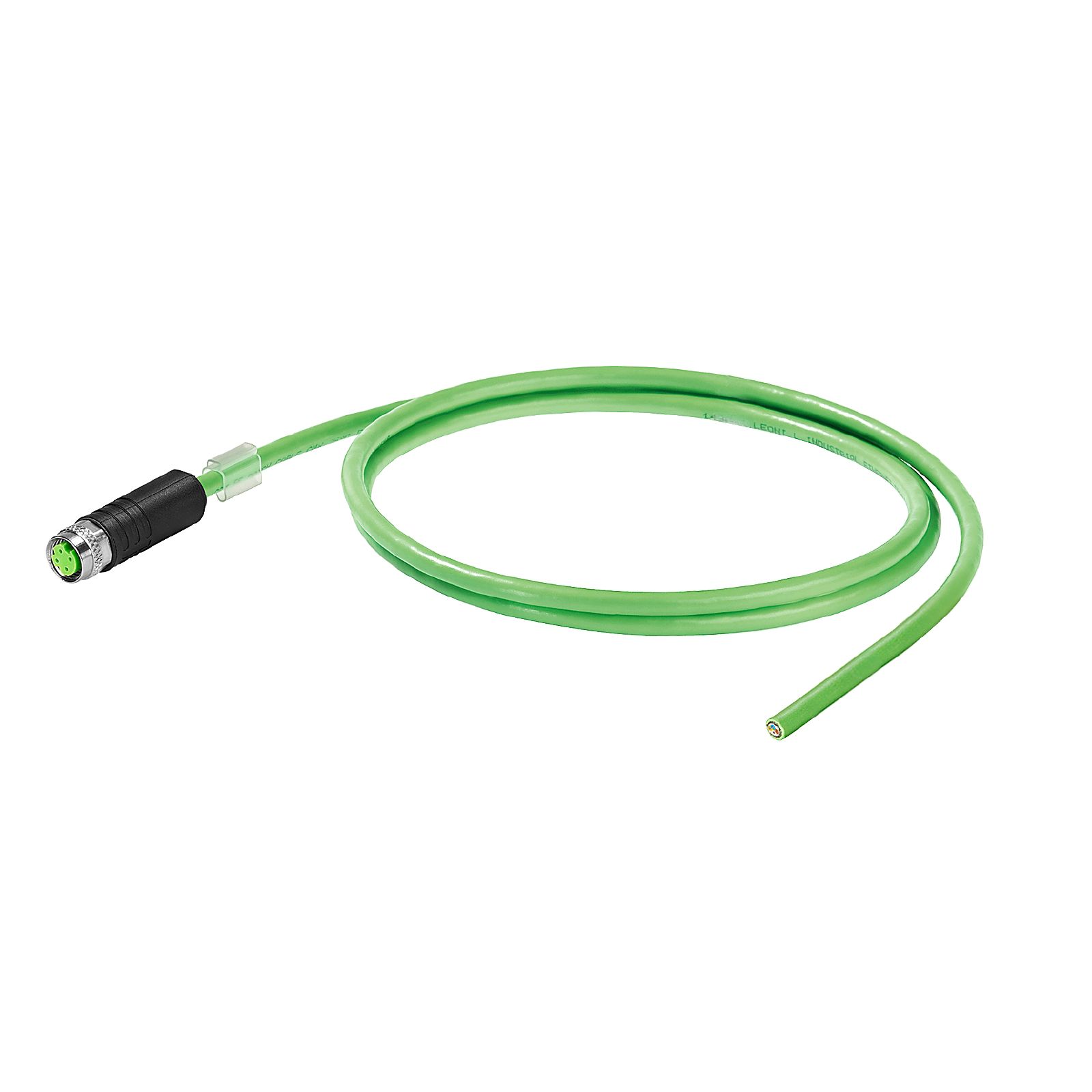

| Version | Dragline cable, PROFINET, M8 D-code - IP67 straight socket, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m |
| Order No. | 2706260100 |
| Type | IE-C5DD4UG0100DSSXXX-E |
| GTIN (EAN) | 4050118742879 |
| Qty. | 1 items |
| Length | 10 m |
| Length (inches) | 393,701 inch |
| Net weight | 619 g |
| Storage temperature | -50 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Installation temperature | -20 °C...60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Connector standard | IEC 61076-2-114 |
| Connector standard | IEC 61076-2-114 |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Arrangement of wire cores | Star-quad |
| Colour sequence or wires - wire pairs | white, yellow, blue, orange |
| Complete shielding |
Aluminium foil
Shielding braid made from copper wiring |
| Cross-section | 4*AWG 22/7 - 0.32 mm² |
| Diameter of inner sheathing | 3,9 mm |
| Filler | As central element |
| Insulation | PE |
| Insulation cross-section | 1,5 mm |
| Material sheath | PUR |
| Number of wires | 4 |
| Overlap of shielding braid | 85 % |
| Sheath diameter, max. | 6,7 mm |
| Sheath diameter, min. | 6,3 mm |
| Sheathing colour | green (RAL 6018) |
| Sheathing material thickness | 0,9 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0,13 mm |
| Standard designations | 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC |
| Strands | 7 |
| Wire core insulation thickness | 0,38 mm |
| Wire material | Stranded tin-plated copper wire |
| Capacity at 1 kHz | 52 nF/km |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Delay skew | 40 ns/100m |
| Loop resistance | 120 Ω/km |
| Operating voltage (UL rating) | 600 V |
| Operating voltage, UL | 600 V |
| Resistance differential | 3 % |
| Signal propagation time | 5,3 ns/m |
| Speed | 180 m/min |
| Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
| Transfer impedance | 20 mΩ/m at 10 MHz |
| Abrasion resistance | very good |
| Acceleration | 4 m/s² |
| Bending cycles | 3 Mio |
| Fire propagation | No |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 7.5 x cable diameter |
| Pulling force | ≤ 150 N |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| Speed | 180 m/min |
| UV-resistant | Yes |
| Plug left | M8, D-coded, IP67, female contact, straight, plug, Plastic, shielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293135) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2706260100) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| ROHS | Conform |
