Properties

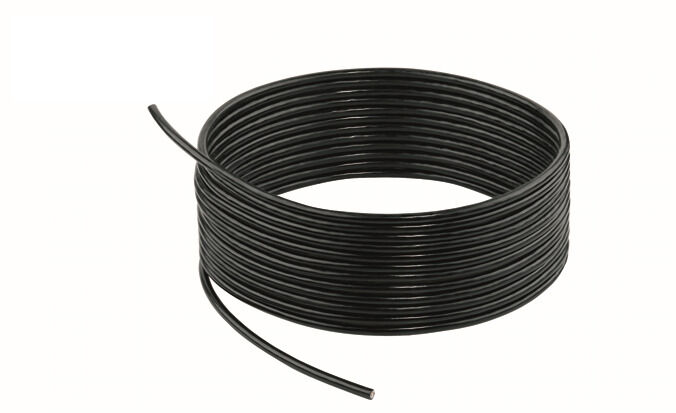

| Version | System cable, Single Pair Ethernet (SPE), T1-B, PUR, 500 |
| Order No. | 2924360000 |
| Type | IE-S1ES2UE-500 |
| GTIN (EAN) | 4099986624801 |
| Qty. | 1 items |
| Length | 500 m |
| Length (inches) | 19,685.039 inch |
| Net weight | 16,872 g |
| Operating temperature | -40 °C...80 °C |
| Colour coding | white / blue |
| Configurable cable length | No |
| Halogen |
halogen-free, according to IEC 60754-1
halogen-free, according to IEC 60754-2 |
| Insulation | PE |
| Number of poles | 2 |
| Number of wires | 2 |
| Resistance to spread of flame | in accordance with IEC 60332-1-2 |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | Yes |
| Suitable for cable carriers | No |
| Impervious to smoke | According to IEC 61034 |
| Impervious to smoke | According to IEC 61034 |

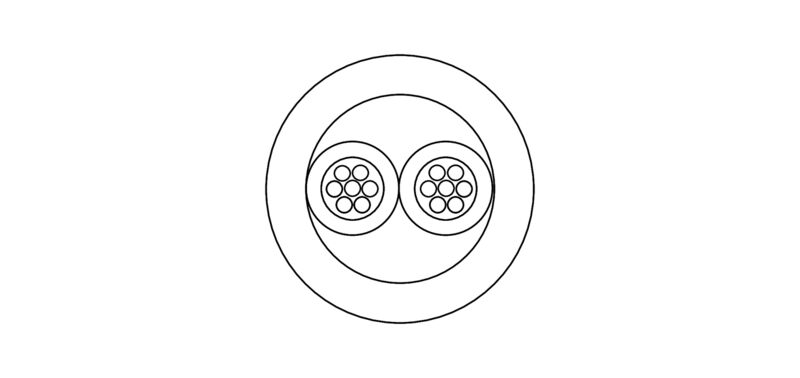

| Arrangement of wire cores | Twisted pair |
| Colour coding | white / blue |
| Complete shielding | Shielding braid made from copper wiring |
| Cross-section | 1 x 2 x AWG 26/7 - 0.132 mm² |
| Insulation | PE |
| Insulation cross-section | 1.15 mm |
| Material sheath | PUR |
| Number of wires | 2 |
| Sheath diameter, max. | 4.3 mm |
| Sheathing colour | black |
| Shielding | S/FTP |
| Strands | 7 |
| Tensile force, max. | 14 N |
| Wire pair shielding | Aluminium foil |
| Category | T1-B |
| Coupling attenuation 1 to 600 MHz | Type I |
| Coupling attenuation up to 1000 MHz | 70 dB |
| Separating class according to EN 50174-2 | d |
| Colour | black |
| Halogen |
halogen-free, according to IEC 60754-1
halogen-free, according to IEC 60754-2 |
| Impervious to smoke | According to IEC 61034 |
| Min. bending radius, once only | 28 mm |
| Min. bending radius, repetitive | 56 mm |
| Resistance to spread of flame | in accordance with IEC 60332-1-2 |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| ETIM 9.0 | EC003249 |
| ECLASS 9.0 | 27-06-18-05 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-18-01 |
| ECLASS 11.0 | 27-06-18-01 |
| ECLASS 12.0 | 27-06-18-01 |
| ECLASS 13.0 | 27-06-18-01 |
| ROHS | Conform |
