SAIL-M12GM12G-4-3.0T
SAIL-M12GM12G-4-3.0T
Detailed drawing
Male, straight
SAIL-M12GM12G-4-3.0T
Detailed drawing
Straight socket
SAIL-M12GM12G-4-3.0T
Pole scheme
M12 = A-coded
SAIL-M12GM12G-4-3.0T
Pole scheme
M12 = A-coded
SAIL-M12GM12G-4-3.0T
Wiring diagram

SAIL-M12GM12G-4-3.0T

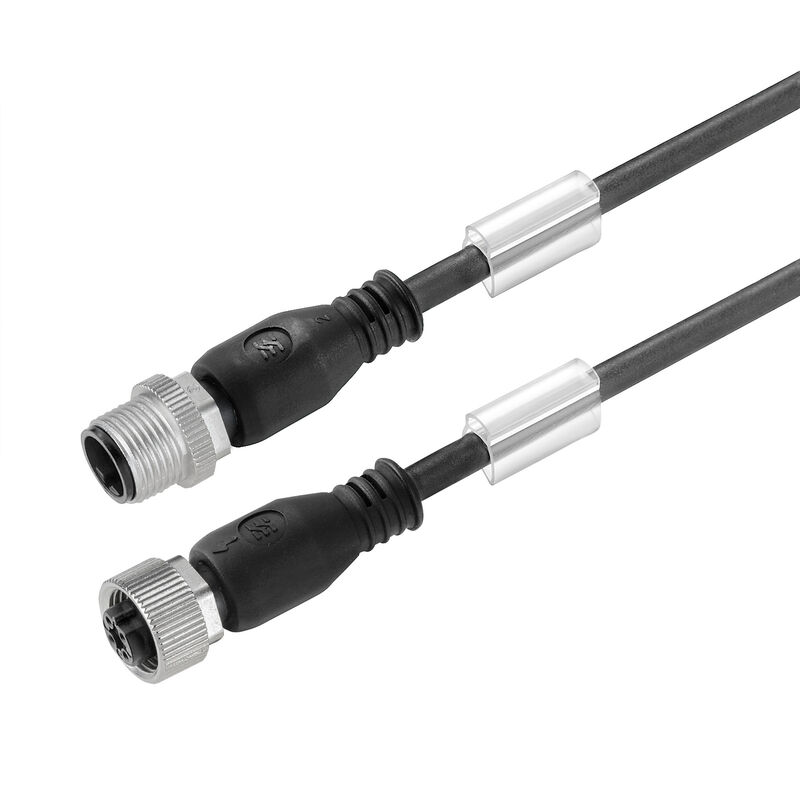

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1021730300
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 7 Samankaltaiset tuotteet 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable General technical data Electrical properties 일반 표준 Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1021730300
Type
SAIL-M12GM12G-4-3.0T
GTIN (EAN)
4032248735389
Qty.
1 items

Dimensions and weights

Net weight
124 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Datos técnicos del cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x 케이블 직경
Bending radius, min., stationary
4 x 케이블 직경
Cable length
3 m
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
4
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Outside diameter
4.9 mm ± 0.2 mm
Resistant to welding beads
Yes
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
200 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-30...105 °C
Temperature range, stationary
-40...105 °C
Torsion resistance
360 °/m
Welding spark resistance
Yes

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
позолоченный
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Materiál kroužku se závitem
Diecast zinc
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Rozsah teplot krytu
-25…+85 °C
Utahovací moment
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

일반 표준

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Zástrčka vlevo
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Zástrčka vpravo
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
