SAIL-M12WM12G-8-2.0U
SAIL-M12WM12G-8-2.0U
SAIL-M12WM12G-8-2.0U
Dimensioned drawing
Male, angled
SAIL-M12WM12G-8-2.0U
Dimensioned drawing
Straight socket
SAIL-M12WM12G-8-2.0U
Pole scheme
Male
SAIL-M12WM12G-8-2.0U
Pole scheme
Socket
SAIL-M12WM12G-8-2.0U
Wiring diagram

SAIL-M12WM12G-8-2.0U

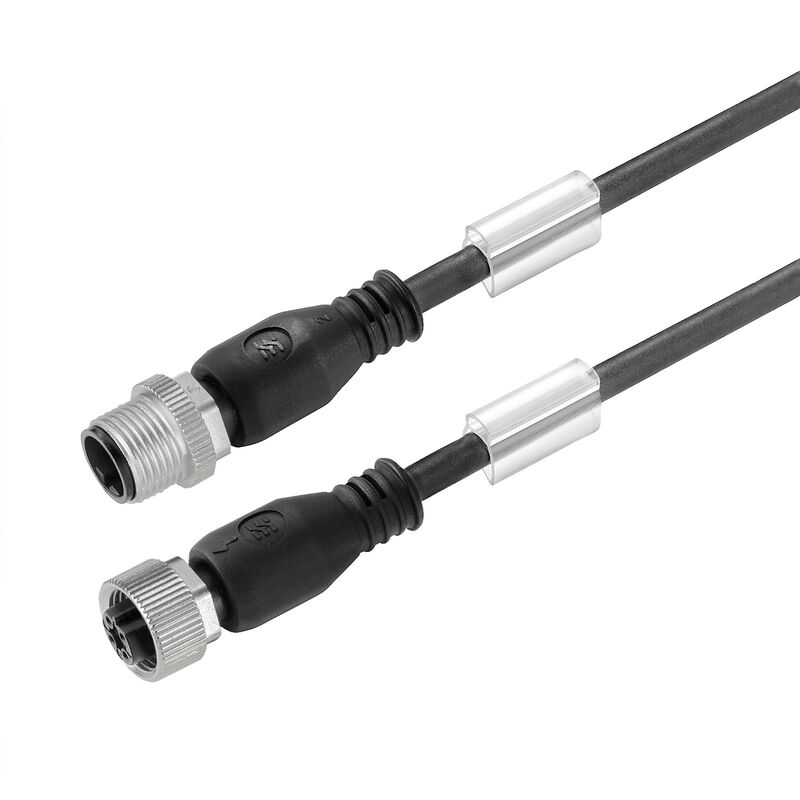

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 8, 2 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1937470200
Gegevensblad downloaden Product Downloads Engineering Support
Toebehoren 7 Verwante producten 1
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 8, 2 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1937470200
Type
SAIL-M12WM12G-8-2.0U
GTIN (EAN)
4032248608614
Qty.
1  items

Dimensions and weights

Net weight
113  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5  m/s²
Bending cycles
1 mill.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
2  m
Colour coding
blue
red
white
brown
green
yellow
grey
pink
Configurable cable length
Yes
Core cross-section
0,25  mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
8
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
5.9 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5  m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Torsion resistance
180  °/m
Welding spark resistance
No

General technical data

AF size
13  mm
Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation strength
108 Ω
jumpered
No
LED
No
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
IP69
IP65
IP66
Rated current
2  A
Rated voltage
30  V
Shock and vibration proof according to
Section B
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, angled - bush straight

Electrical properties

Insulation strength
108 Ω
Rated current
2 A (8-pole) / 1.5 A (12-pole)
Rated voltage
30  V

General standards

Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP67, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP67, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ECLASS 10.0
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
