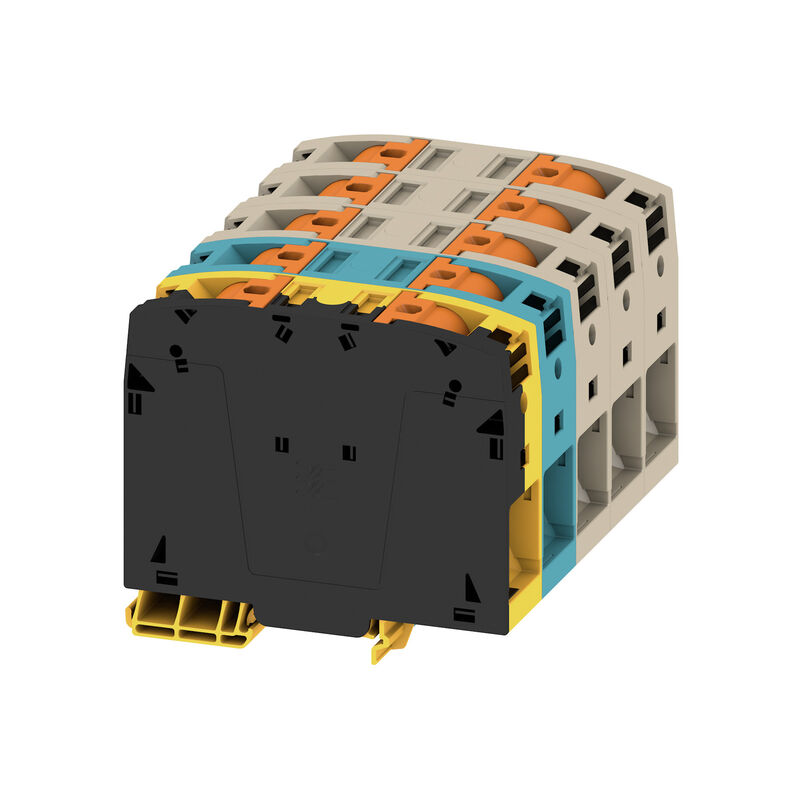

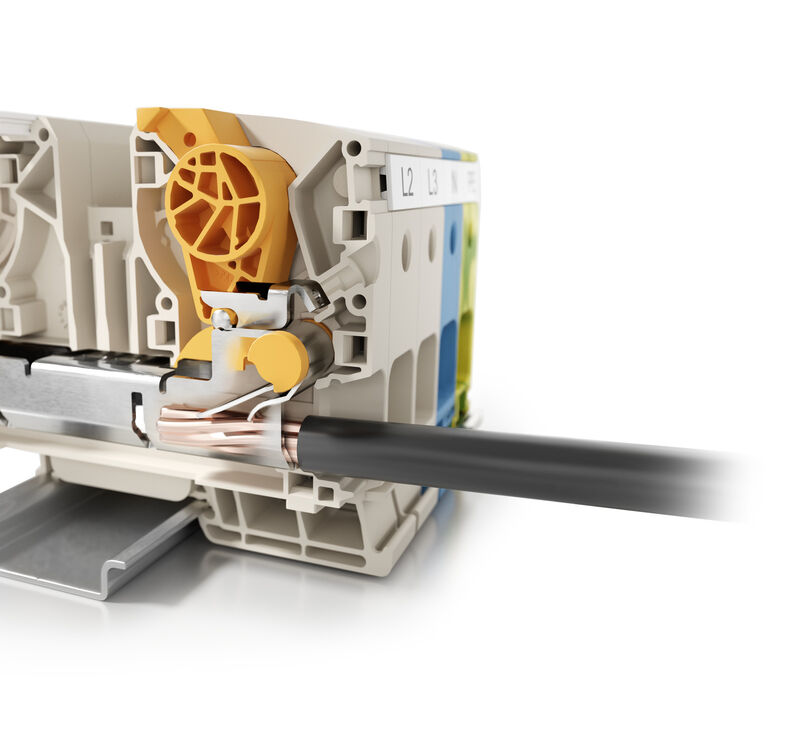

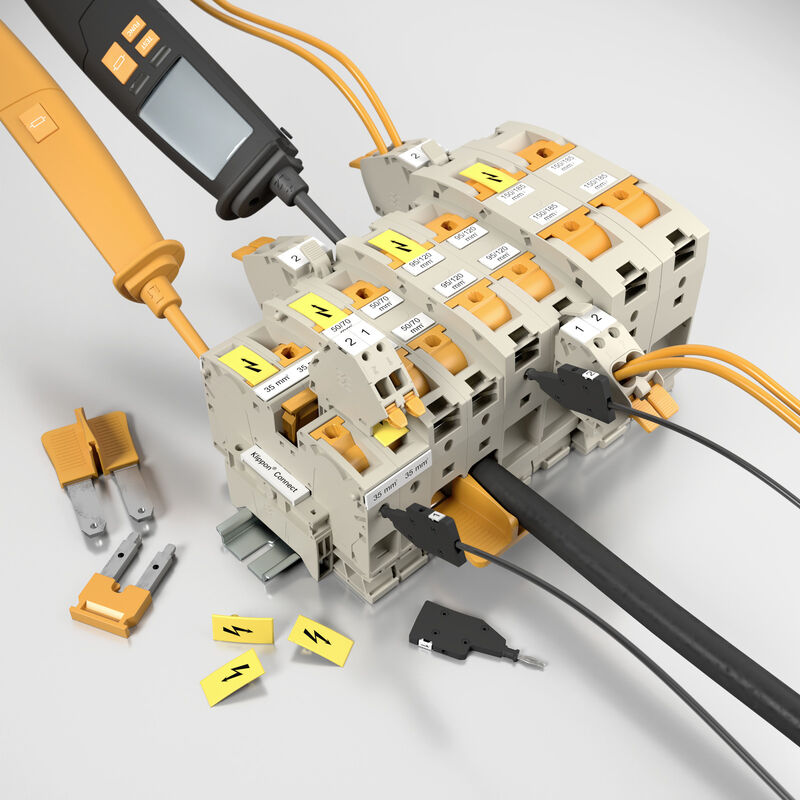

A2C 95/120 3FT-N-FE

Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige

Produkt ID 2694100000

Egenskaber

General ordering data

Version	Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
Order No.	2694100000
Type	A2C 95/120 3FT-N-FE
GTIN (EAN)	4064675266488
Qty.	1 Styk

Dimensions and weights

Depth	90 mm
Depth (inches)	3,543 inch
Height	101,5 mm
Height (inches)	3,996 inch
Width	125 mm
Width (inches)	4,921 inch
Net weight	850 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

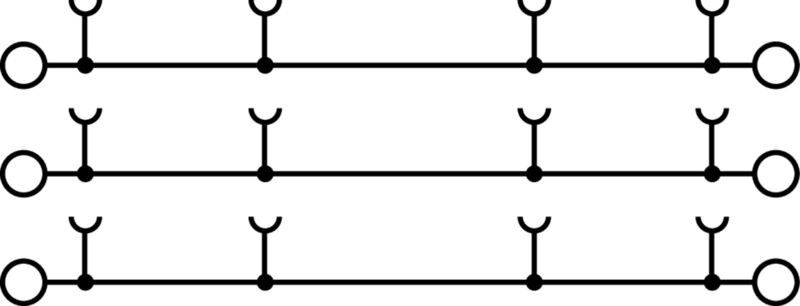

System specifications

End cover plate required	No
Number of levels	1
Number of clamping points per level	10
Number of potentials per tier	5
Levels cross-connected internally	No
Rail	TS 35
PEN function	No

Additional technical data

Explosion-tested version	Yes
Open sides	closed
Type of fixing	TS 35
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

PUSH IN

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	120 mm²
Clamping range, min.	25 mm²
Connection cross-section, stranded, max.	120 mm²
Connection cross-section, stranded, min.	25 mm²
Connection direction	on side
Number of connections	2
Stripping length	40 mm
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 3/0
Wire connection cross section AWG, min.	AWG 4
Wire connection cross section, finely stranded, max.	120 mm²
Wire connection cross section, finely stranded, min.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	95 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	95 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	25 mm²
Wire connection cross-section, solid core, max.	120 mm²
Wire connection cross-section, solid core, min.	25 mm²

CSA rating data

Certificate No. (CSA)	200039-80115835
Current size B (CSA)	255 A
Current size C (CSA)	255 A
Voltage size B (CSA)	600 V
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	250 kcmil
Wire cross section min. (CSA)	4 AWG

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 3/0
Wire connection cross section AWG, min.	AWG 4

Rating data

Rated cross-section	95 mm²
Rated voltage	1.000 V
Rated DC voltage	1.500 V
Rated current	232 A
Current at maximum wires	232 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0,14 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	7,42 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	250 kcmil
Conductor size Factory wiring min. (cURus)	4 AWG
Conductor size Field wiring max. (cURus)	250 kcmil
Conductor size Field wiring min. (cURus)	4 AWG
Current size B (cURus)	255 A
Current size C (cURus)	255 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V

Important note

Product information

The max. connectable wire reduces by one wire size if a cross connector is used that has to be mounted in the wire entry.

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253716) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253939) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58128) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58163) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_224975) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_224977) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253942) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153831)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205887)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2694100000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2694100000)
User Documentation	[Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_103803) [User Manual A2C 50-185](https://mdcop.weidmueller.com/mediadelivery/asset/900_229210) [NTI A2C 95/120](https://mdcop.weidmueller.com/mediadelivery/asset/900_253719)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01
ECLASS 14.0	27-25-01-01

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
