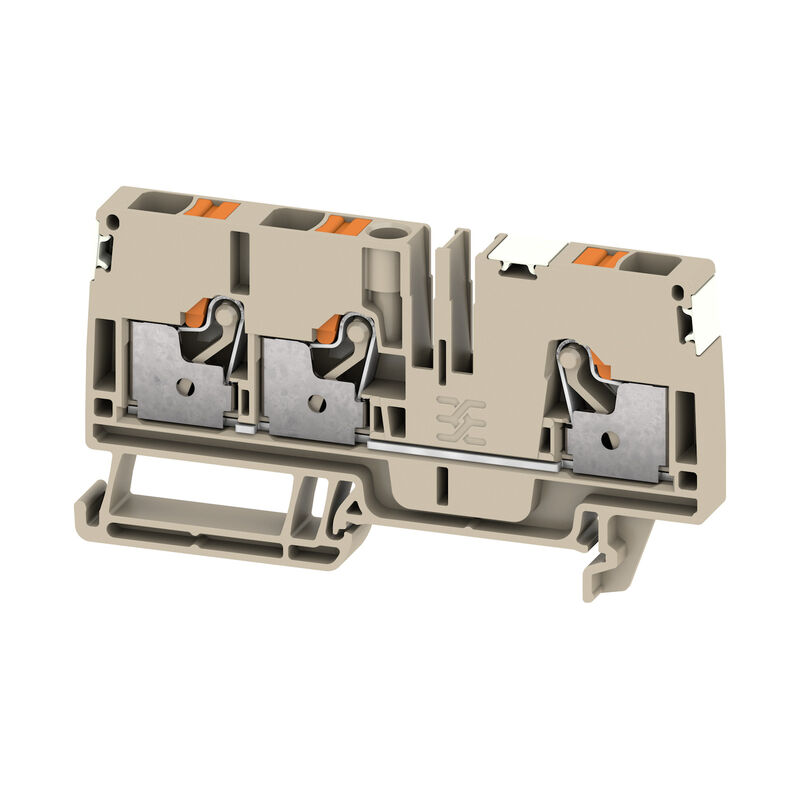

Feed-through terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige

Tuotteen tunnus 2674900000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 30 Samankaltaiset tuotteet 1057
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Ausfuehrung
Feed-through terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige
Best.-Nr.
2674900000
Type
A3C 6 DL
GTIN (EAN)
4050118715989
CPZ
50 items

Dimensions and weights

Tiefe
45,5 mm
Depth (inches)
1,791 inch
Depth including DIN rail
46 mm
Height
84,5 mm
Height (inches)
3,327 inch
Width
8,1 mm
Width (inches)
0,319 inch
Net weight
23,08 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Termék karbonlábnyoma
  • Cradle to gate:
    0.526 kg CO2 eq.

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Tanúsítvány száma (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Áram (ATEX)
36 A
Wire cross section max. (ATEX)
6 mm²
Max. feszültség (IECEX)
550 V
Current (IECEX)
36 A
Vezetékkeresztmetszet, max. (IECEX)
6 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Number of potentials per tier
1
Levels cross-connected internally
No
Mounting rail
TS 35

Additional technical data

Explosion-tested version
Yes
Open sides
right

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Blade size
1.0 x 5.5 mm
Clamping range, max.
10 mm²
Clamping range, min.
0,34 mm²
Connection direction
top
Długość rurki dla okucia z zakończeniem kablowym bez kołnierza z tworzywa sztucznego DIN 46228/1
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      6 mm²
    • max.:
      10 mm²
Długość rurki dla podwójnej końcówki tulejkowej
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      1 mm²
    • max.:
      1,5 mm²
Długość rurki dla tulejki kablowej z kołnierzem z tworzywa sztucznego zgodnie z przekrojem
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    1,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    2,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    6 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
Gauge to IEC 60947-1
A5
Number of connections
3
Rörlängd för tvillingändhylsa enligt area
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    0,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    0,75 mm²
  • Cross-section, max.:
    0,75 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    1 mm²
  • Cross-section, max.:
    1,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
Sección del conductor, flexible con terminales tubulares DIN 46228/1, máx.
10 mm²
Sezione di collegamento cavo, nucleo rigido, max.
6 mm²
Sezione di collegamento cavo, nucleo rigido, min.
0,34 mm²
Sezione di collegamento, flessibile, min.
0,34 mm²
Sezione di collegamento, semirigida, max.
6 mm²
Sezione di collegamento, semirigida, min.
0,34 mm²
Stripping length
12 mm
Terminali doppi, max.
1,5 mm²
Terminali doppi, min.
0,5 mm²
Type of connection
PUSH IN
Vezeték csatlakozás keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, névleges csatlakozás, min.
0,34 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, max.
10 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, min.
0,34 mm²
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Длина трубки кабельного наконечника без пластиковой манжеты согласно поперечному сечению
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    6 mm²
  • Cross-section, max.:
    6 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
와이어 엔드 페룰의 튜브 길이, 플라스틱 칼라 DIN 46228/4 채용
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      4 mm²
    • max.:
      6 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
38 A
Current size C (CSA)
38 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
22 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22

Rating data

Rated cross-section
6 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
41 A
Current at maximum wires
41 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
8 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
38 A
Current size C (cURus)
38 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
