Egenskaber

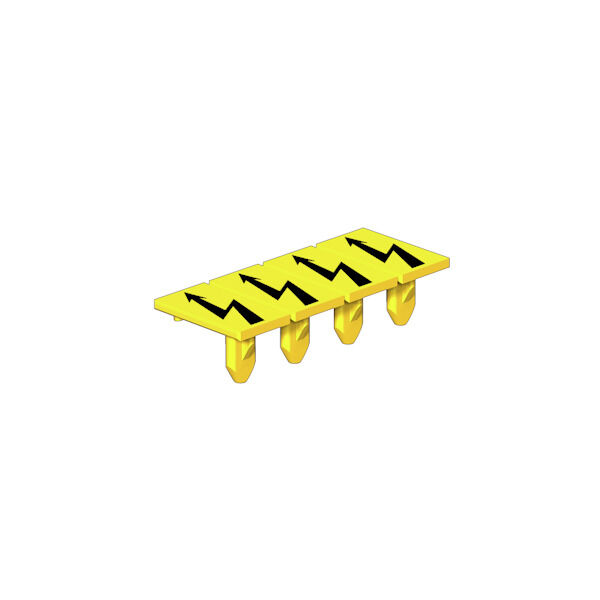

| Version | Terminal marker, 10 x 6.1 mm, Pitch in mm (P): 6.00 yellow |
| Order No. | 2635560000 |
| Type | AAM 4 YE FLASH |
| GTIN (EAN) | 4050118674507 |
| Qty. | 40 Styk |
| Depth | 5,8 mm |
| Depth (inches) | 0,228 inch |
| Height | 10 mm |
| Height (inches) | 0,394 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 0,088 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 6.6 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Operating temperature range | -40...100 °C |
| Pitch in mm (P) | 6 mm |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_213445) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2635560000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
