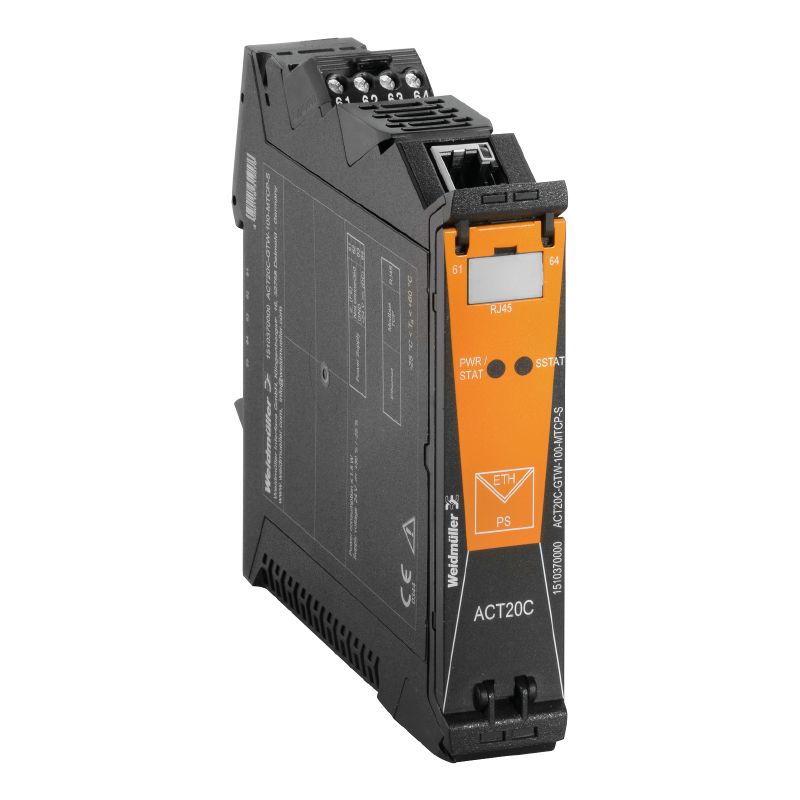

ACT20C-GTW-100-MTCP-S

Gateway for ACT20C station, Configurable, Modbus TCP/IP, Distributes supply voltage to rail bus

Produkt ID 1510370000

Egenskaber

General ordering data

Version	Gateway for ACT20C station, Configurable, Modbus TCP/IP, Distributes supply voltage to rail bus
Order No.	1510370000
Type	ACT20C-GTW-100-MTCP-S
GTIN (EAN)	4050118319606
Qty.	1 Styk

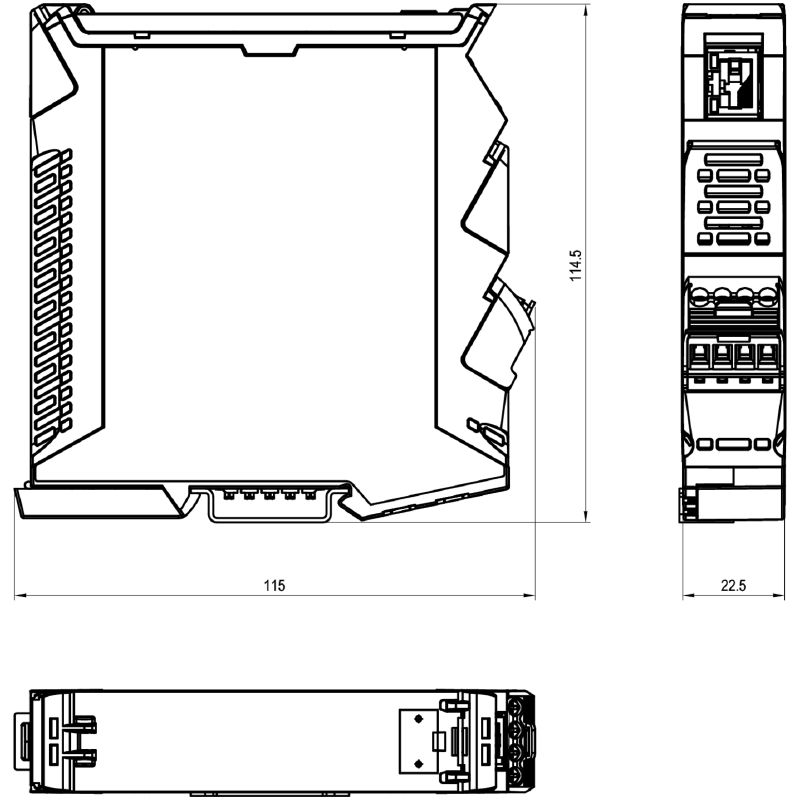

Dimensions and weights

Depth	113,6 mm
Depth (inches)	4,472 inch
Height	117,2 mm
Height (inches)	4,614 inch
Width	22,5 mm
Width (inches)	0,886 inch
Net weight	150 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...60 °C
Humidity	5...95 %, no condensation

Probability of failure

SIL in compliance with IEC 61508	None
MTTF	160 a

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	2f6dd957-421a-46db-a0c2-cf1609156924

Interface 1

Addressing	DHCP or manual adjustment
Interface	Communication via CH20M rail bus with all current measuring transducers (ACT20C-CMT-x)
Number of devices on the bus, max.	16
Protocol	Modbus/TCP DHCP Server/Client

General data

Configuration	With FDT/DTM software DHCP
Nominal power consumption	3 VA
Power consumption, max.	1,5 W
Protection degree	IP20
Rail	TS 35
Voltage supply	18.0 … 31.2 V DC

Insulation coordination

EMC standards	IEC 61326-1
Impulse withstand voltage	0,5 kV (1.2/50 μs)
Pollution severity	2
Rated voltage ⁄ test voltage: Ethernet interface to supply ⁄ functional earth to supply ⁄ Ethernet interface	30 V AC RMS
Surge voltage category	II
Test voltage	1,1 kV

Connection data

Type of connection	Screw connection RJ45 plug-in connector
Tightening torque, min.	0,5 Nm
Tightening torque, max.	3,5 Nm
Clamping range, rated connection	1,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	2,5 mm²
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross section, finely stranded, max.	2,5 mm²

Important note

Product information

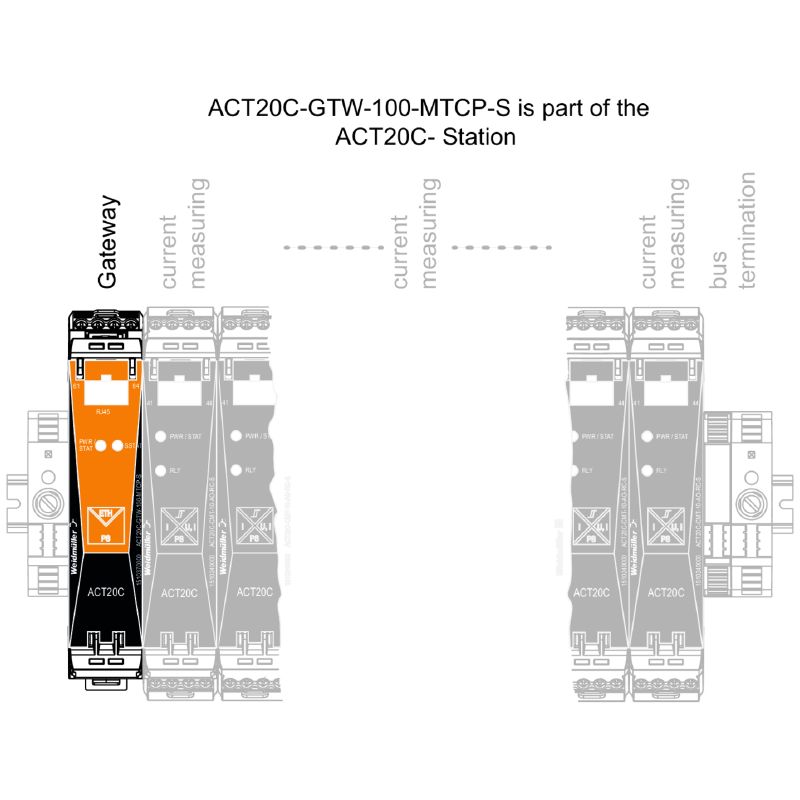

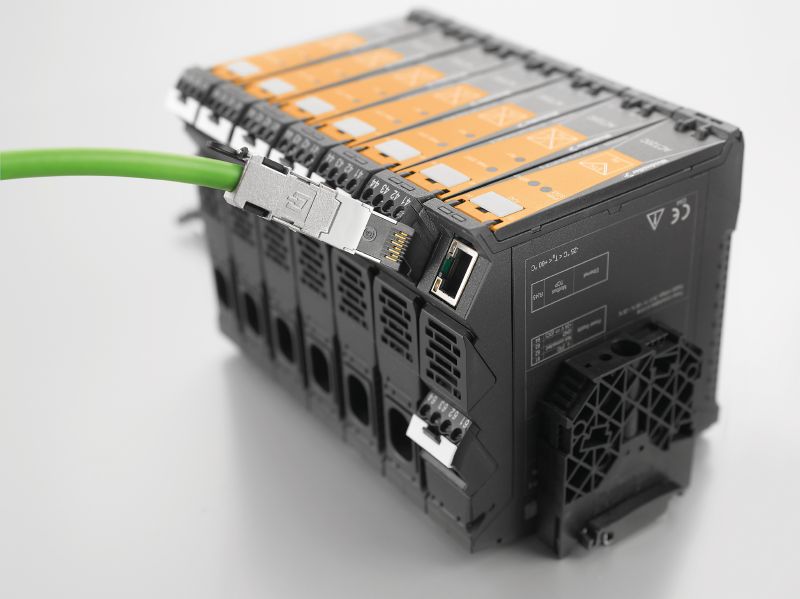

The ACT20C-GTW-100-MTCP-S gateway is a modbus TCP slave in accordance with IEC 61158. It connects ACT20C devices to an Ethernet network for diagnostic, configuration and status monitoring purposes.

Properties

RJ45 port with Ethernet TCP/IP
Jack socket for direct point-to-point communication via a CBX200 USB adapter
Configuration using the standard FDT/DTM
Station management with “Plug & Produce” and “Hot Swapping”
Operational status and error display on a front panel LED according to NE44, NE107

Downloads

Approval/Certificate/Document of Conformity	[Application notes -- UL certification (USA/Canada)](https://mdcop.weidmueller.com/mediadelivery/asset/900_52742) [Certification DNV GL](https://mdcop.weidmueller.com/mediadelivery/asset/900_152118) [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35446)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89469)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1510370000)
Software	[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364) [Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446)
User Documentation	[Device description -- Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_36029) [Application notes -- Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_39939) [20210120 Security Advisory - WI-Manager affected by MundM Software fdtCONTAINER vulnerability](https://mdcop.weidmueller.com/mediadelivery/asset/900_189001)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002475
ETIM 7.0	EC002475
ETIM 8.0	EC002475
ETIM 9.0	EC002475
ECLASS 9.0	27-21-01-23
ECLASS 9.1	27-21-01-23
ECLASS 10.0	27-21-01-23
ECLASS 11.0	27-21-01-23
ECLASS 12.0	27-21-01-23
ECLASS 13.0	27-21-01-23
ECLASS 14.0	27-21-01-23

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif)
ROHS	Conform
UL File Number Search	[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)	E141197
