Egenskaber
| Version | Temperature converter, Input : Temperature, PT100, Output : 0(4)-20 mA |
| Order No. | 7760054233 |
| Type | ACT20P-RTI-AO-S |
| GTIN (EAN) | 6944169696411 |
| Qty. | 1 Styk |
| Depth | 114 mm |
| Depth (inches) | 4,488 inch |
| Height | 117 mm |
| Height (inches) | 4,606 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 110 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 5...95 %, no condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2f6dd957-421a-46db-a0c2-cf1609156924 |
| Line resistance in measuring circuit | ≤ 50 Ω |
| Number of inputs | 1 |
| Sensor |
PT100 (3 wire)
Cu50 Cu100 |
| Temperature input range |
Configurable
PT100: -200…+850 °C min. measurement range 10°C (RTD) |
| Load impedance current | ≤ 550 Ω |
| Number of outputs | 1 |
| Output current |
Adjustable
0(4)...20 mA |
| Type |
active
connected control must be passive |
| Wire break detection |
Yes
Output value: 22 mA |
| Accuracy | 0.2 °C ⁄ 0.1% of end value |

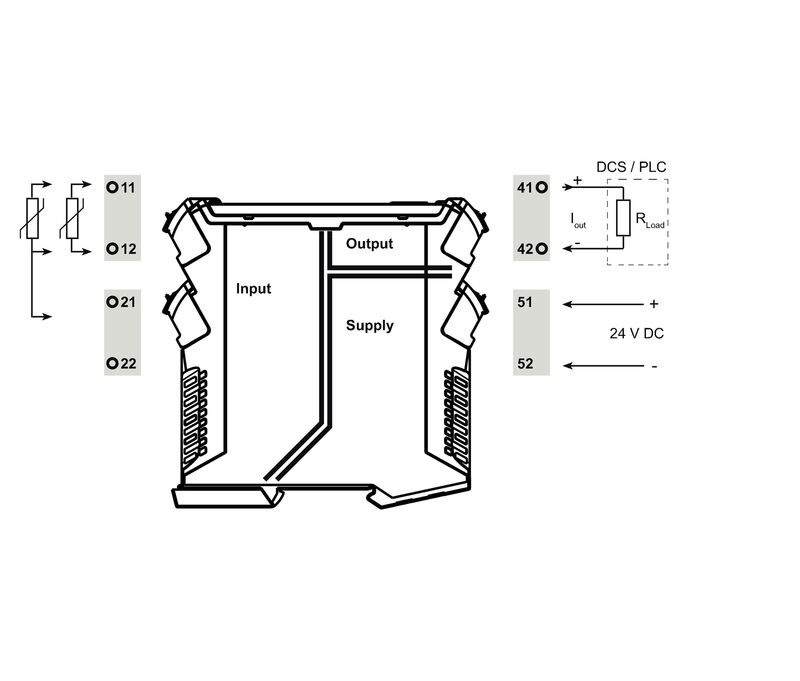

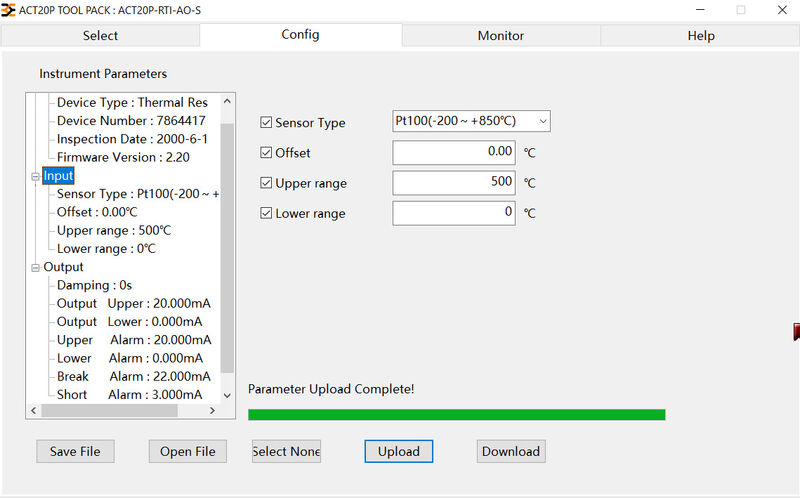

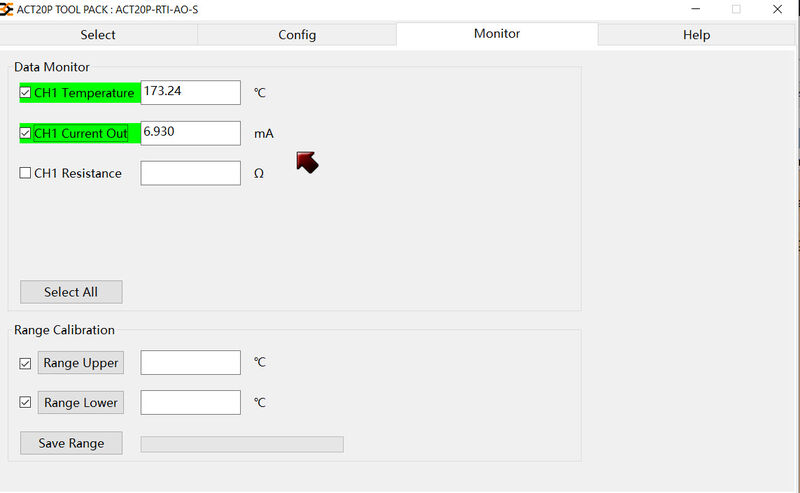

| Configuration |
With free software ACT20P TOOL PACK
Requires configuration adapter 8978580000 CBX200 USB + 2907490000 ADAPTER CBX200 - MINI USB |
| Current consumption | <50 mA @ IOUT = 20 mA |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Power consumption | ca. 1.5 W |
| Protection degree | IP20 |
| Rail | TS 35 |
| Step response time | ≤1s |
| Temperature coefficient | ≤ 100 ppm/K |
| Voltage supply | 24 V DC ± 20 % |
| EMC standards | EN 61326-1 |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Insulation voltage | 2 kV inputs / outputs / power supply |
| Pollution severity | 2 |
| Rated voltage | 300 V |
| Surge voltage category | III |
| Test voltage | 0,3 kV |
| Type of connection | Screw connection |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_291155) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249218) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760054233) |
| Software | [ACT20P TOOL PACK version 2.3](https://mdcop.weidmueller.com/mediadelivery/asset/900_290562) |
| User Documentation | [instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_290648) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002919 |
| ETIM 7.0 | EC002919 |
| ETIM 8.0 | EC002919 |
| ETIM 9.0 | EC002919 |
| ECLASS 9.0 | 27-21-01-29 |
| ECLASS 9.1 | 27-21-01-29 |
| ECLASS 10.0 | 27-21-01-29 |
| ECLASS 11.0 | 27-21-01-29 |
| ECLASS 12.0 | 27-21-01-29 |
| ECLASS 13.0 | 27-21-01-29 |
| ECLASS 14.0 | 27-21-01-29 |
| Approvals |  |
| ROHS | Conform |
