ACT20X-HDI-SDO-RNO-P

EX signal isolating converter, Ex-input: NAMUR sensor/switch, Safe-output: relay, NO contact, 1-channel

Produkt ID 2456050000

Egenskaber

General ordering data

Version	EX signal isolating converter, Ex-input: NAMUR sensor/switch, Safe-output: relay, NO contact, 1-channel
Order No.	2456050000
Type	ACT20X-HDI-SDO-RNO-P
GTIN (EAN)	4050118471526
Qty.	1 Styk

Dimensions and weights

Depth	114,6 mm
Depth (inches)	4,512 inch
Height	127,3 mm
Height (inches)	5,012 inch
Width	22,5 mm
Width (inches)	0,886 inch
Net weight	177 g

Temperatures

Storage temperature	-20 °C...85 °C
Operating temperature	-20 °C...60 °C
Humidity	0...95 % (no condensation)

Probability of failure

SIL PAPER	[SIL certificate](PDF/Cert_Weidmueller_070902_P0002_C001_V2R1.pdf)
SIL in compliance with IEC 61508	2
MTBF	207 a

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	2f6dd957-421a-46db-a0c2-cf1609156924

Assembling

Mounting position	horizontal or vertical
Rail	TS 35
Type of mounting	Snap mounting support rail

Input EX

Input frequency	<20 Hz
Input resistance	1 kΩ
NAMUR supply	8 V DC / 8 mA
Output signal in case of wire break	<0.1 mA > 6.5 mA (in case of wire break)
Pulse duration	> 0.1 ms
Resistance	RP = 750 Ω / RS = 15kΩ
Sensor	NAMUR sensor, according to EN60947-5-6 switch with or without RS, RP
Sensor supply	8 V DC / 8 mA
Trigger level high	> 2.1 mA
Trigger level low	<1.2 mA
Type	intrinsically safe circuit

Digital output

Continuous current	≤ 2 A AC/DC (safe area, Zone 2 area)
Function	Output = input direct or inverse (configurable)
Max. switching frequency	20 Hz
Nominal switching voltage	≤ 250 V AC / 30 V DC (safe area) ≤ 32 V AC / 32 V DC (zone 2)
Switching capacity	500 VA / 60 W (safe area) 16 VA / 60 W (zone 2)
Type	Relay, 1 NC contact Switching frequency 20 Hz

Alarm output

Alarm function	Line interruption at the input Short circuit at input No supply voltage Device error
Continuous current	≤ 0.5 A AC / 0.3 A DC (safe zone) ≤ 0,5 A AC / 1 A DC (zone 2)
Nominal switching voltage	≤ 125 V AC / 110 V DC (safe area) ≤ 32 V AC / 32 V DC (zone 2)
Power rating	≤ 62.5 VA / 32 W (safe area) ≤ 16 VA / 32 W (Zone 2)
Type	Status relay 1 NC (voltage-free)

General specifications

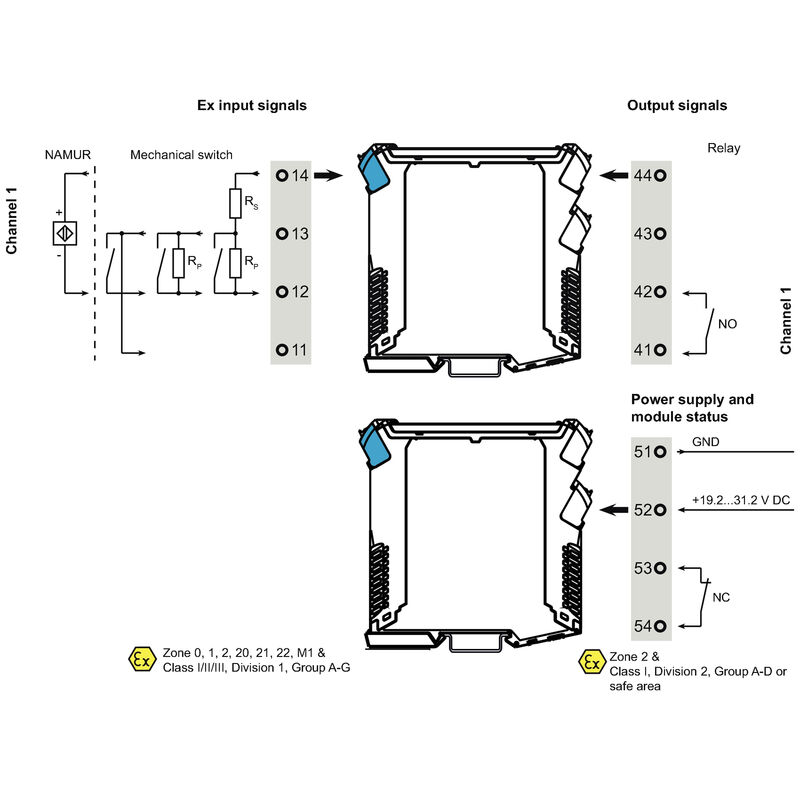

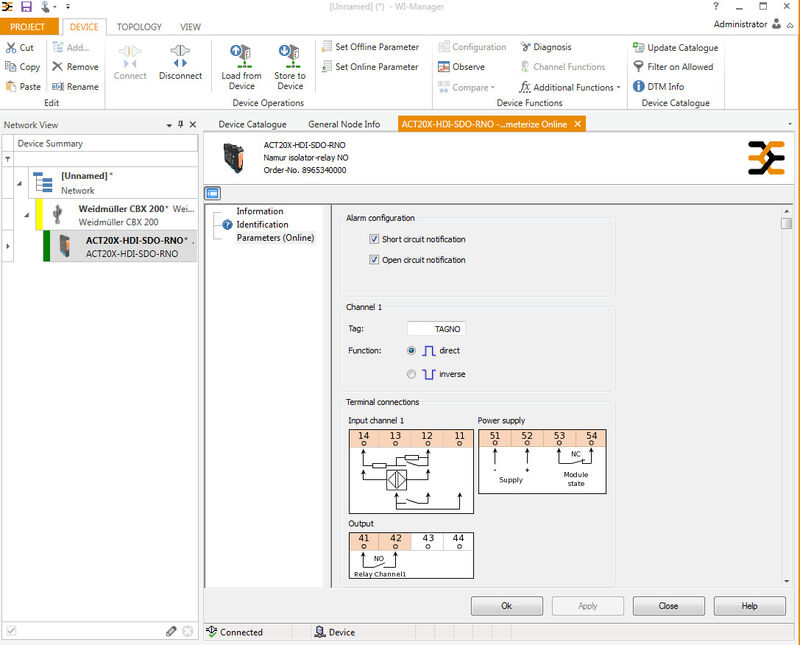

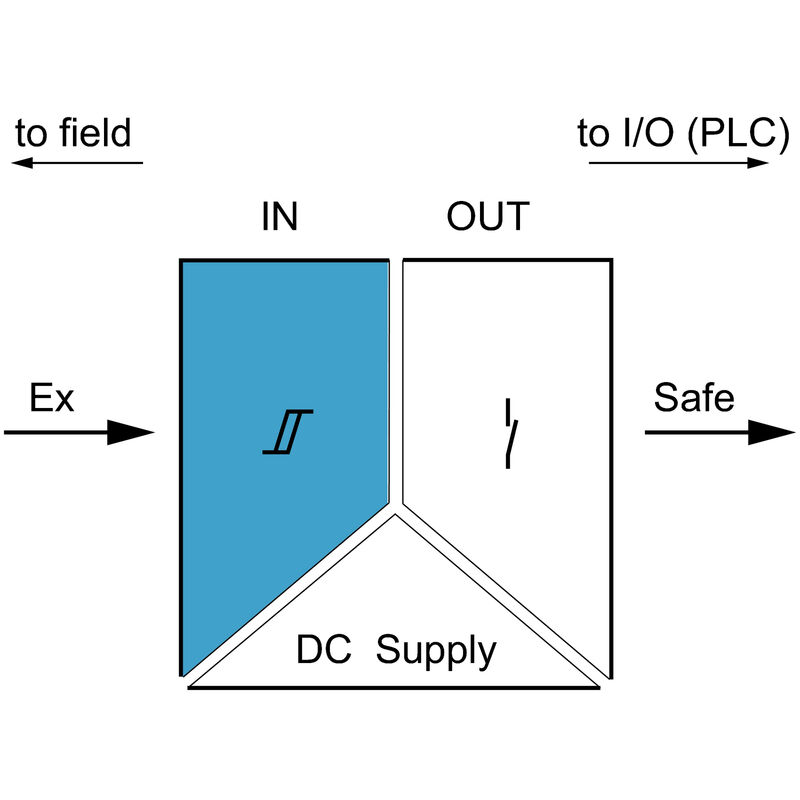

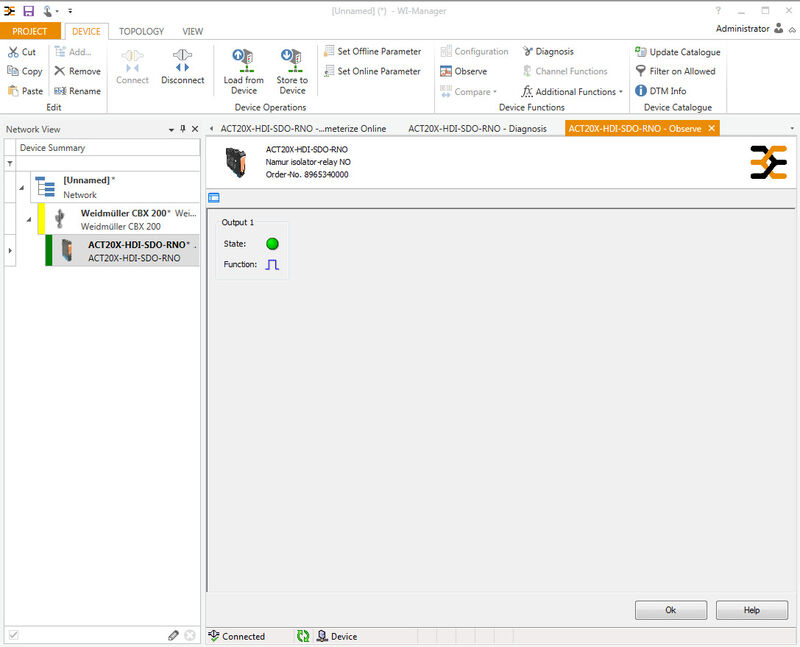

Configuration	With FDT/DTM software Requires configuration adapter 8978580000 CBX200 USB
Humidity	0...95 % (no condensation)
Operating altitude	≤ 2000 m
Power consumption	≤ 1.3 W
Protection degree	IP20
Type of connection	PUSH IN
Voltage supply	19.2…31.2 V DC

Insulation coordination

EMC standards	EN 61326-1
Insulation voltage	2.6 kV (input / output)
Rated voltage	300 V
Standards	EN 61010-1

Data for Ex applications (ATEX)

Current I₀	12 mA DC
Installation location	Device installed in safe area, zone 2
Marking	II (1) G [Ex ia Ga] IIC/IIB/IIA II (1) D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
Power P₀	32 mW
Voltage U₀	10.6 V DC

Safety-related basic specifications

Description of the "safe state"	de-energized (relay output)
Device type	B
Diagnostic test interval	10 s
T_proof	4 a
Total failure rate for safe detected failures (λ_SD)	0 FIT
Hardware fault tolerance (HFT)	0
Safety category	SIL 2
Relay lifetime	100000 times
Safe Failure Fraction (SFF)	90 %
Mean Time To Repair (MTTR)	8 h
Total failure rate for safe undetected failures (λ_SU)	289 FIT
Total failure rate for dangerous detected failures (λ_DD)	130 FIT
Total failure rate for dangerous undetected failures (λ_DU)	46 FIT
Probability of outage PFH	4.66 x 10^-8 h^-1
Demand mode	High
Demand rate	1.000 s
Demand response time	<10 ms (relay output)

Safe Failure Fraction (SFF)	90 %
Average Probability of Failure on Demand (PFD_avg)	2.04 x 10^-4 (T_proof = 1 year) 4.08 x 10^-4 (T_proof = 2 years) 1.02 x 10^-4 (T_proof = 5 years)

Connection data

Type of connection	PUSH IN
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, min.	0,2 mm²
Wire cross-section, solid, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,2 mm²
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²

Guarantee

Time interval

3 years

Downloads

Approval/Certificate/Document of Conformity	[Application notes -- Certification SIL](https://mdcop.weidmueller.com/mediadelivery/asset/900_35511) [Certification DNV GL](https://mdcop.weidmueller.com/mediadelivery/asset/900_42626) [Application notes -- Certification ATEX](https://mdcop.weidmueller.com/mediadelivery/asset/900_97039) [Application notes -- Certification IECEx](https://mdcop.weidmueller.com/mediadelivery/asset/900_97149) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35395)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66107)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2456050000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2456050000)
Software	[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364) [Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446)
User Documentation	[Application notes -- Safety Manual for SIL application](https://mdcop.weidmueller.com/mediadelivery/asset/900_40043) [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_80481) [Handbuch ACT20X- Serie, deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_102720) [Manual ACT20X- series, english](https://mdcop.weidmueller.com/mediadelivery/asset/900_102722) [20210120 Security Advisory - WI-Manager affected by MundM Software fdtCONTAINER vulnerability](https://mdcop.weidmueller.com/mediadelivery/asset/900_189001)
