Egenskaber
| Version | A-series, End bracket |
| Order No. | 2570260000 |

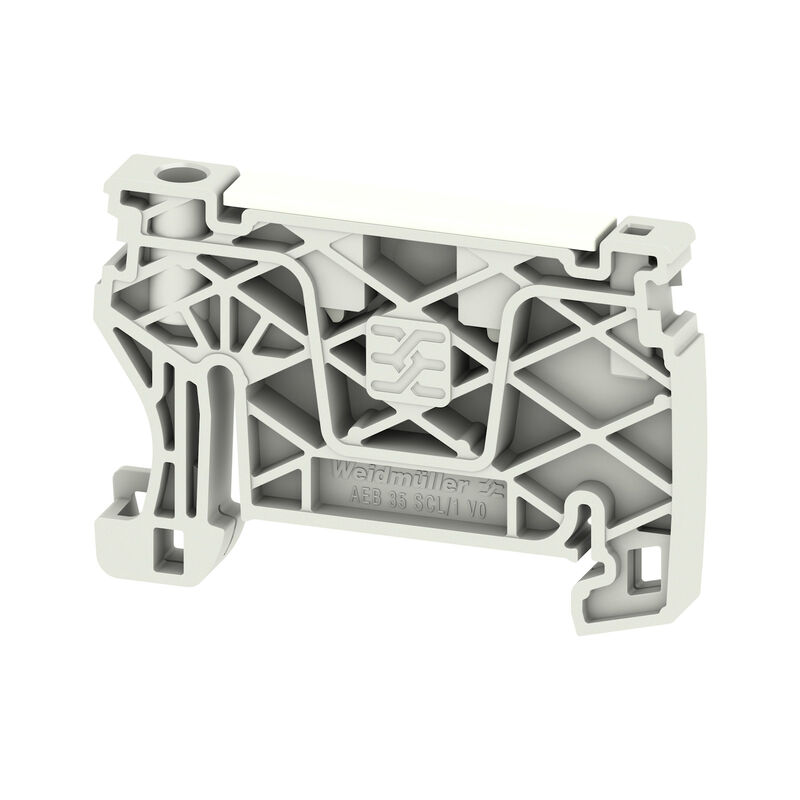

| Type | AEB 35 SCL/1 V0 GY DL |
| GTIN (EAN) | 4050118580273 |
| Qty. | 50 Styk |
| Depth | 36,5 mm |
| Depth (inches) | 1,437 inch |
| Depth including DIN rail | 37 mm |
| Height | 52,6 mm |
| Height (inches) | 2,071 inch |
| Width | 6 mm |
| Width (inches) | 0,236 inch |
| Net weight | 6,68 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Light Grey |
| UL 94 flammability rating | V-0 |
| Rail | TS 35 |
| Interlock | screwless |
| Type of mounting | Snap-on |
| Rail | TS 35 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74628) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2570260000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2570260000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2570260000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ECLASS 14.0 | 27-25-03-02 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:2749610000Pakningsenhed:1 Styk
Mounting tool, Blade width (B): 3.5 mm, Blade length: 100 mm, Blade thickness (A): 0.6 mm
Er tilbehør til
-
Produkt ID:2675300000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2675380000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2675400000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2718300000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, green
-
Produkt ID:2675410000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, blue
-
Produkt ID:2675390000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2675330000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, blue
-
Produkt ID:2675320000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2675310000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2464690000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:1988140000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2464740000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, Green/yellow
-
Produkt ID:1989780000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2464750000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2522830000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, blue
-
Produkt ID:2503650000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:1988130000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2712960000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2503870000Pakningsenhed:20 Styk
Modular distribution terminals, PUSH IN, 6 mm², 500 V, 41 A, dark beige
-
Produkt ID:2522720000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, blue
-
Produkt ID:2683430000Pakningsenhed:20 Styk
Supply terminal, PUSH IN, 6 mm², 500 V, 41 A, beige, dark beige
