Egenskaber
| Version | A-series, End plate |
| Order No. | 2898180000 |

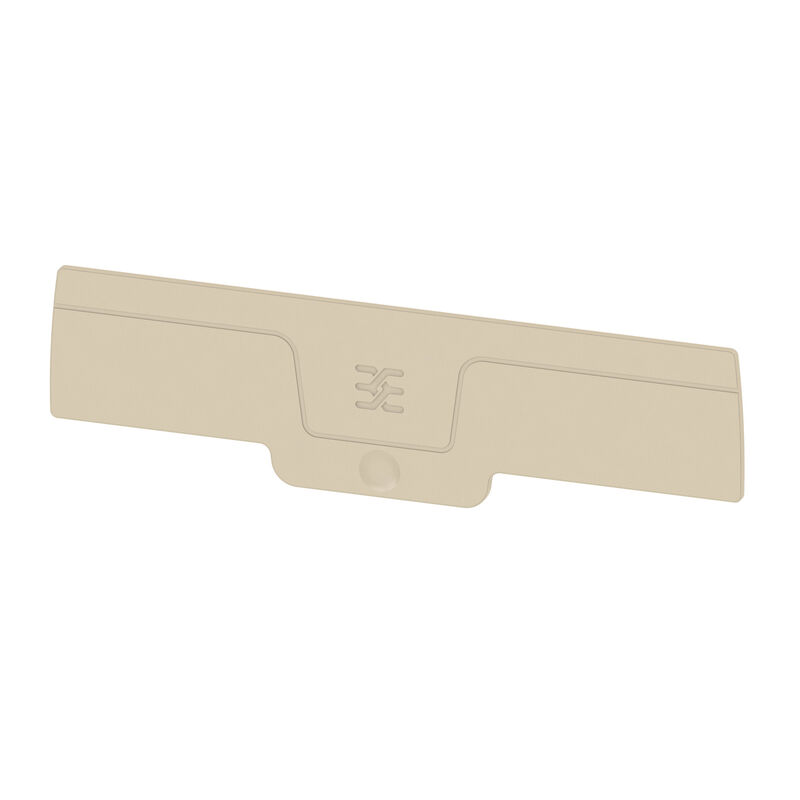

| Type | AEP PGTB 1.5 4C/4 |
| GTIN (EAN) | 4064675903277 |
| Qty. | 20 Styk |
| Depth | 26,3 mm |
| Depth (inches) | 1,035 inch |
| Height | 77,9 mm |
| Height (inches) | 3,067 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 2,1 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305143) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2898180000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2898180000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-33 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2898140000Pakningsenhed:50 Styk
Plug-in modular terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, Green/yellow
-
Produkt ID:2898130000Pakningsenhed:100 Styk
Plug-in modular terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, blue
-
Produkt ID:2898120000Pakningsenhed:100 Styk
Plug-in modular terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
Terminal BlocksUniversal rangePUSH IN technologyA-SeriesPluggable terminal blocks1-tier1.5 mm²
