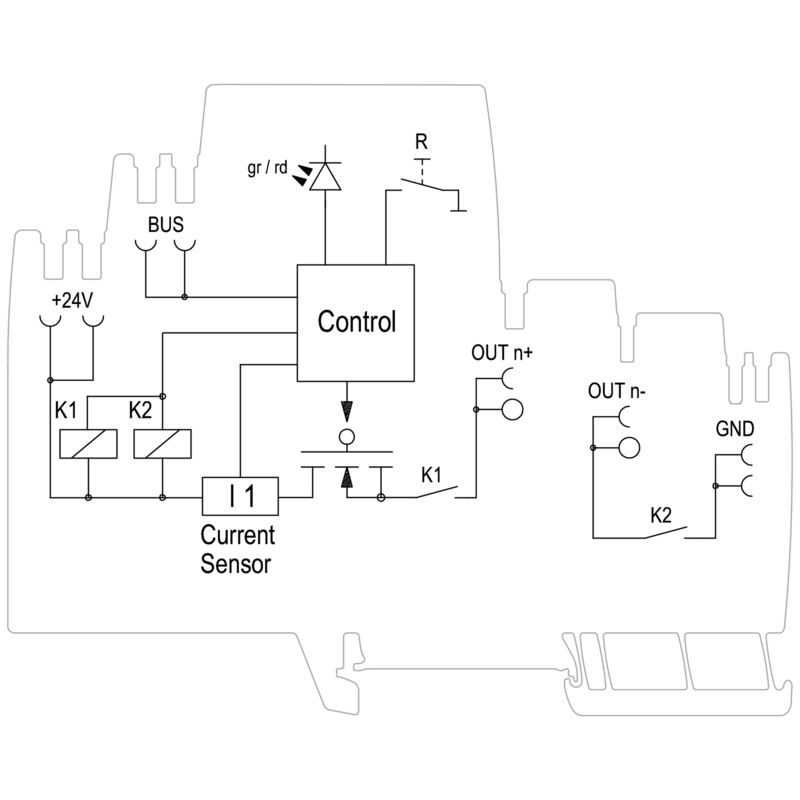

Electronic load monitoring, 10 A, 24 V DC

Tuotteen tunnus 2082470000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Ohjelmistotuki Tuotelataukset
Lisävarusteet 38 Samankaltaiset tuotteet 21
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input Output General data Insulation coordination Connection data (output) Signalling Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a141b9cd-a4d9-451f-8b4d-e03428dc3481/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E258476

General ordering data

Version
Electronic load monitoring, 10 A, 24 V DC
Order No.
2082470000
Type
AMG ELM-10D CO
GTIN (EAN)
4050118419603
Qty.
1 items

Dimensions and weights

Depth
96,5 mm
Depth (inches)
3,799 inch
Height
125 mm
Height (inches)
4,921 inch
Width
18,3 mm
Width (inches)
0,72 inch
Net weight
90 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
a7fff16c-85aa-4fb0-a206-7be03f41b0b7

Input

Current consumption (full load)
IOUT +50 mA
DC input voltage range
18…30 V DC
Input fuse (internal)
Yes
Rated input voltage
24 V DC
rizado residual máx. admisible en la entrada
100 mVpp
Spotřeba proudu (v klidovém stavu)
40 mA
Surge protection
Suppressor diode

Output

Capacitive load
20,000 µF
Märkström
10 A
Pегулируемый номинальный ток
Yes
Ritardo all'inserzione
1 s
Technique de raccordement
PUSH IN
Túlfeszültség-védelem
Suppressor diode

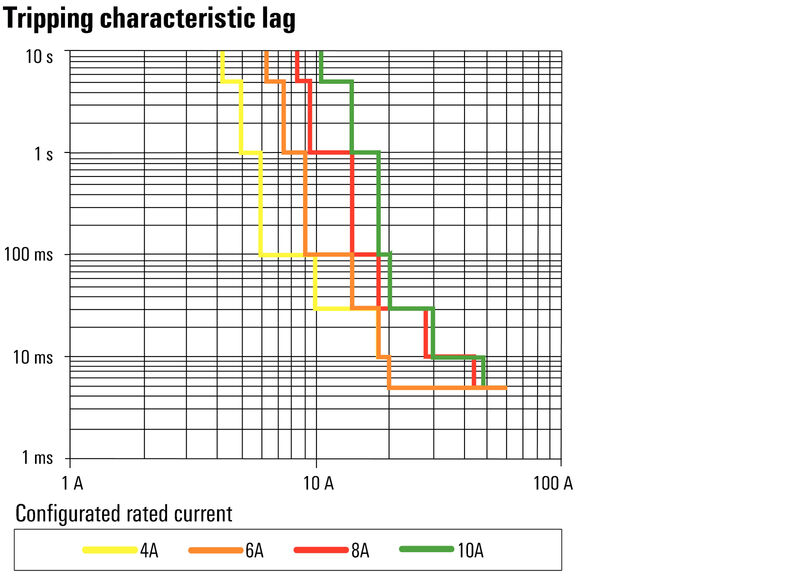

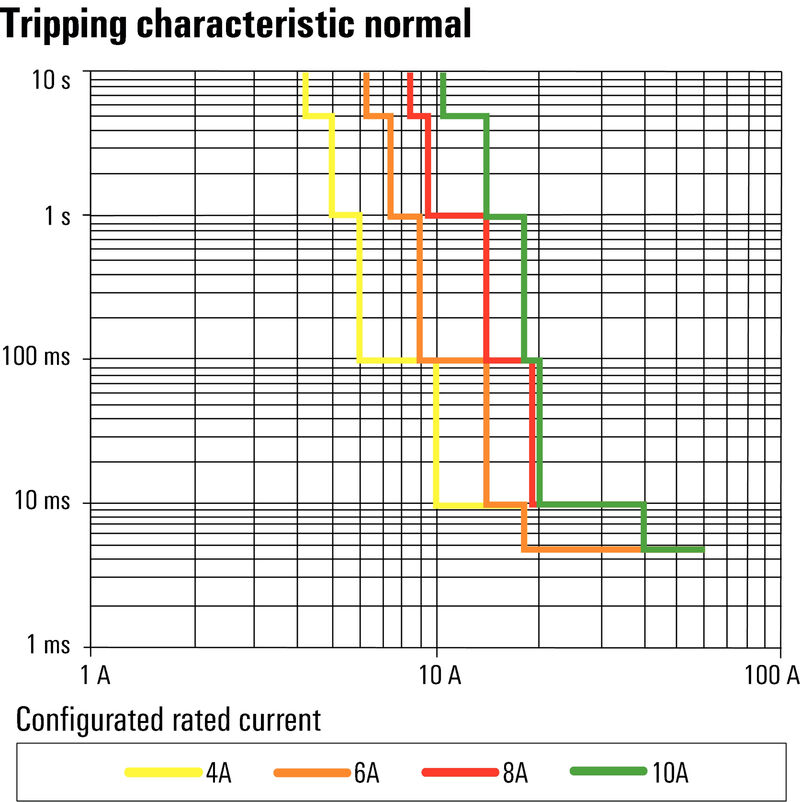

트리거링 특성
see characteristic curve

General data

Conformal coating
Yes
Function key
Activation time <3s
Reset
ON
MTTF
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    2 282 000 h
  • Ambient temperature:
    40 °C
  • Input voltage:
    24 V
  • Output power:
    240 W
  • Duty cycle:
    100 %
Power loss, idling
720 mW
Power loss, nominal load
2 600 mW
Protection degree
IP20
Relay to activate the output
Yes
Surge voltage category
III

Insulation coordination

Catégorie de surtension
III

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
26 AWG
Conductor cross-section, flexible , max.
2,5 mm²
Conductor cross-section, flexible , min.
0,14 mm²
Conductor cross-section, rigid , max.
2,5 mm²
Conductor cross-section, rigid , min.
0,14 mm²
Connection system
PUSH IN
Number of terminals
6 (3x + / 3x -)
Screwdriver blade
0.6 x 3.5

Signalling

LED green
Operation (failure-free)
Early warning: I Out > 90% I Rated (flashing)
Red LED
Load monitoring has disconnected
Load monitoring has triggered (flashing)
Internal error (rapid flashing)
Transistor output, positive-switching
Pre-warning
Alarm

Classifications

ETIM 8.0
EC003538
ETIM 9.0
EC003538
ETIM 10.0
EC003538
ECLASS 14.0
27-37-10-16
ECLASS 15.0
27-37-10-16
