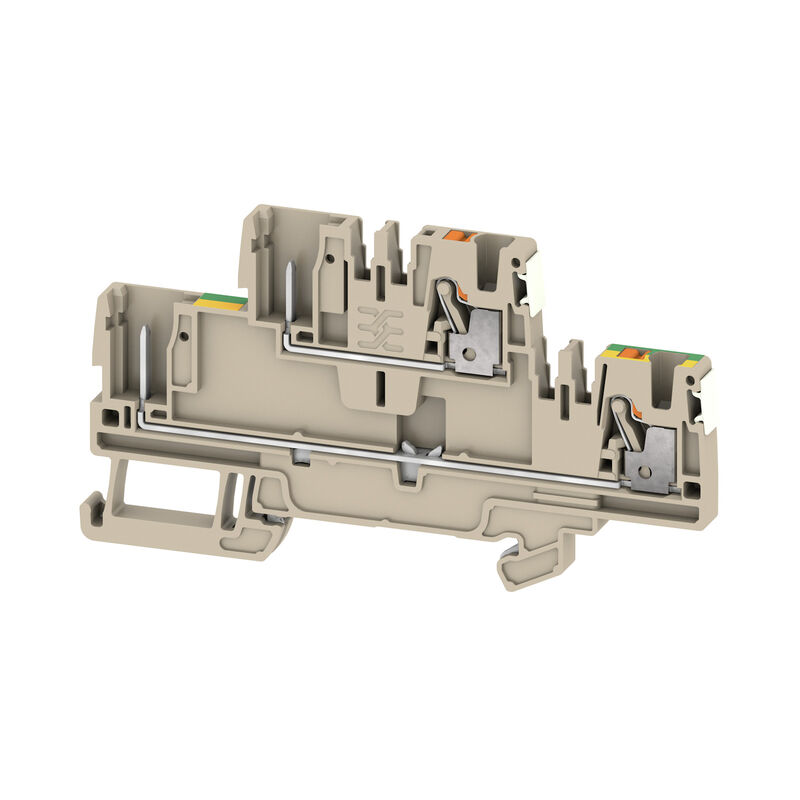

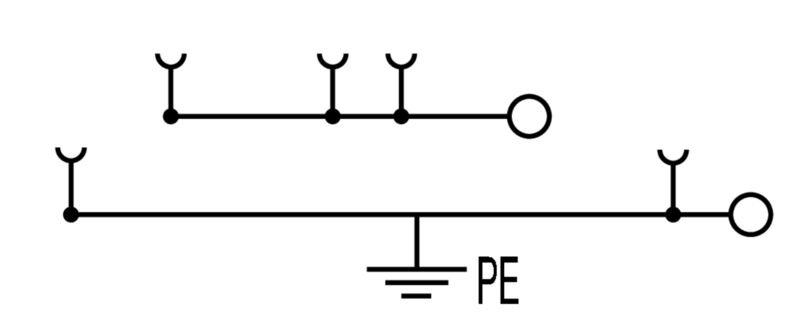

APGTB 2.5 2T FT-PE 4C/2 DL

Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige

Produkt ID 2675930000

Egenskaber

General ordering data

Version	Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
Order No.	2675930000
Type	APGTB 2.5 2T FT-PE 4C/2 DL
GTIN (EAN)	4050118716450
Qty.	50 Styk

Dimensions and weights

Depth	50,5 mm
Depth (inches)	1,988 inch
Depth including DIN rail	51 mm
Height	91 mm
Height (inches)	3,583 inch
Width	5,1 mm
Width (inches)	0,201 inch
Net weight	15,79 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7940U
Certificate No. (IECEX)	IECEXTUR16.0046U
Max. voltage (ATEX)	800 V
Current (ATEX)	15 A
Wire cross section max. (ATEX)	2.5 mm²
Max. voltage (IECEX)	800 V
Current (IECEX)	15 A
Wire cross section max. (IECEX)	2.5 mm²

System specifications

End cover plate required	Yes
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	Yes
Rail	TS 35
PE function	Yes
PEN function	No

Additional technical data

Explosion-tested version	No
Open sides	right
Snap-on	Yes
Type of fixing	Snap-on
Type of mounting	TS 35

Conductors for clamping (additional connection)

Connection type, additional connection

pluggable

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0,14 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	4
Stripping length	10 mm
Tube length for twin wire-end ferrule	Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0,5 mm² max.: 0,75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 8 mm max.: 6 mm Cross-section for conductor connection: min.: 0,34 mm² max.: 0,14 mm² Tube length: min.: 12 mm max.: 6 mm Cross-section for conductor connection: min.: 1 mm² max.: 0,5 mm² Tube length: min.: 12 mm max.: 8 mm Cross-section for conductor connection: min.: 2,5 mm² max.: 1,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 5 mm Cross-section for conductor connection: nominal: 0,25 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0,5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 2,5 mm²
Twin wire-end ferrules, max.	0,75 mm²
Twin wire-end ferrules, min.	0,5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	2,5 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

General

Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28

Rating data

Rated cross-section	2,5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	In accordance with IEC 60947-7-1
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	0,77 W
Pollution severity	3
Surge voltage category	III

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58119) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153861) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205849)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2675930000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2675930000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2675930000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-17
ECLASS 14.0	27-25-01-17

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
