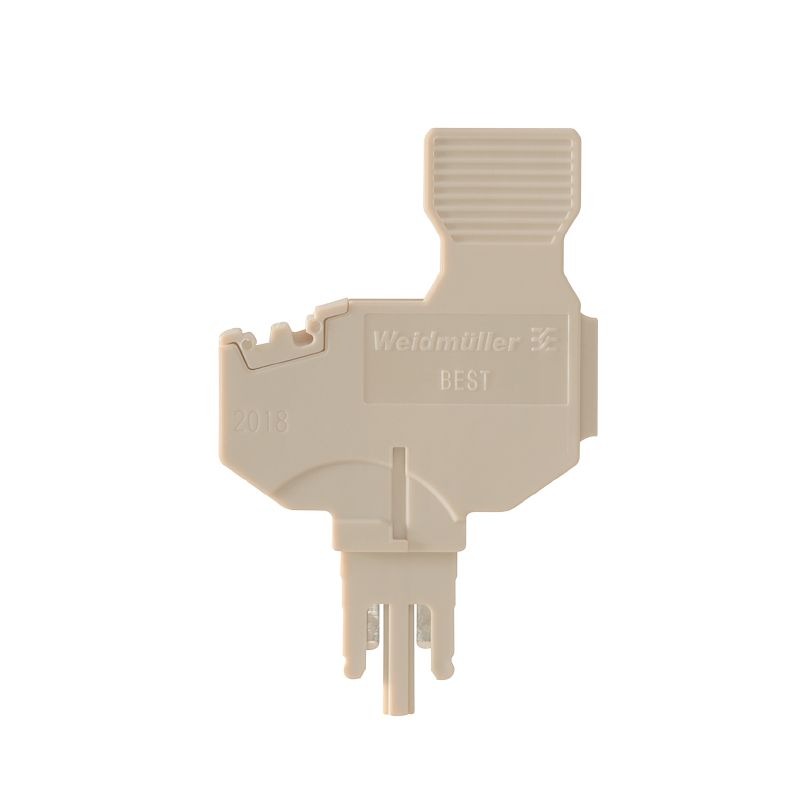

Egenskaber
| Version | Accessories, Component plug |
| Order No. | 1833100000 |
| Type | BEST |
| GTIN (EAN) | 4032248501014 |
| Qty. | 50 Styk |
| Depth | 63 mm |
| Depth (inches) | 2,48 inch |
| Height | 49,5 mm |
| Height (inches) | 1,949 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 3,72 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | beige |
| Version | Plug |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Type of connection | Miscellaneous |
| Pitch in mm (P) | 5,1 mm |
| Installation advice | Direct mounting |
| Rated voltage | 250 V |
| Engineering Data |
[CAD data -- 36278_BEST_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_36048)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64184) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1833100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1833100000) |
| Product Change Notification |
[PCN - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102090)
[PCN - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_151768) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002018 |
| ETIM 7.0 | EC002018 |
| ETIM 8.0 | EC002018 |
| ETIM 9.0 | EC002018 |
| ECLASS 9.0 | 27-14-11-49 |
| ECLASS 9.1 | 27-14-11-49 |
| ECLASS 10.0 | 27-14-11-49 |
| ECLASS 11.0 | 27-14-11-49 |
| ECLASS 12.0 | 27-14-11-49 |
| ECLASS 13.0 | 27-25-03-05 |
| ECLASS 14.0 | 27-25-03-05 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2744110000Pakningsenhed:50 Styk
Disconnect and modular disconnect terminal, PUSH IN, 2.5 mm², 400 V, 16 A, dark beige
-
Produkt ID:2744120000Pakningsenhed:50 Styk
Disconnect and modular disconnect terminal, PUSH IN, 2.5 mm², 400 V, 16 A, blue
-
Produkt ID:2744130000Pakningsenhed:50 Styk
Disconnect and modular disconnect terminal, PUSH IN, 2.5 mm², 800 V, 16 A, dark beige
-
Produkt ID:2744140000Pakningsenhed:50 Styk
Disconnect and modular disconnect terminal, PUSH IN, 2.5 mm², 400 V, 16 A, blue
-
Produkt ID:2456020000Pakningsenhed:25 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 17 A, 500 V, Number of connections: 3, Number of levels: 2, TS 32, TS 35, V-0, Wemid
-
Produkt ID:2456010000Pakningsenhed:25 Styk
Test-disconnect terminal, Screw connection, blue, 2.5 mm², 17 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, TS 35, V-0, Wemid
-
Produkt ID:2456030000Pakningsenhed:25 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 17 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, TS 35, V-0, Wemid
-
Produkt ID:2910900000Pakningsenhed:25 Styk
Test-disconnect terminal, Screw connection, blue, 2.5 mm², 17 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, TS 35, V-0, Wemid
-
Produkt ID:2456000000Pakningsenhed:25 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 17 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, TS 35, V-0, Wemid
-
Produkt ID:2429850000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, dark beige
-
Produkt ID:2429880000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, blue
-
Produkt ID:2898740000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2898750000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2898760000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2429890000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, orange
-
Produkt ID:2898770000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1833640000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid
-
Produkt ID:1833600000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1247290000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1247430000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid
-
Produkt ID:1247420000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid
-
Produkt ID:1247310000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:8728450000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige
-
Produkt ID:1831280000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige
-
Produkt ID:7920950000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, dark beige
-
Produkt ID:7920940000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, orange
-
Produkt ID:8731680000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, orange
-
Produkt ID:8731710000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, blue
-
Produkt ID:7920930000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, blue
-
Produkt ID:1831130000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, without, dark beige
-
Produkt ID:8731690000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, orange
-
Produkt ID:7920900000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, dark beige
-
Produkt ID:8731730000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, blue
-
Produkt ID:8731720000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige
-
Produkt ID:2675230000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:2675210000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:2675220000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, blue
-
Produkt ID:2892740000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2675240000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, dark beige
-
Produkt ID:8731670000Pakningsenhed:100 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:8731700000Pakningsenhed:100 Styk
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2898690000Pakningsenhed:50 Styk
Basic terminal for component plug, PUSH IN, 20, 2
-
Produkt ID:2898710000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989840000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, blue
-
Produkt ID:2898720000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989950000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:2898700000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989940000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:1989810000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, blue
-
Produkt ID:2898730000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989870000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, blue
-
Produkt ID:1989800000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:1989880000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, orange
-
Produkt ID:2898680000Pakningsenhed:50 Styk
Basic terminal for component plug, PUSH IN, 20, 2
-
Produkt ID:2430040000Pakningsenhed:50 Styk
Disconnect and modular disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, blue
-
Produkt ID:1989930000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:1989860000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:2898670000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989830000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
-
Produkt ID:1989820000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, orange
-
Produkt ID:2898660000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1989850000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, orange
-
Produkt ID:2893730000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid
-
Produkt ID:1023830000Pakningsenhed:50 Styk
Test-disconnect terminal, Tension-clamp connection, 6 mm², 690 V, 32 A, Pivoting, dark beige
-
Produkt ID:2974120000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, orange, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2974130000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:3016740000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 4
-
Produkt ID:2974170000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:3016730000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 3
-
Produkt ID:2983260000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 2
-
Produkt ID:3016700000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2974150000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:3016710000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 2
-
Produkt ID:2983280000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 3
-
Produkt ID:2983270000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 2
-
Produkt ID:2974140000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, orange, 2.5 mm², 20 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2974160000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, orange, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2983290000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 3
-
Produkt ID:3016680000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2983730000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 4
-
Produkt ID:2983740000Pakningsenhed:50 Styk
Basic terminal for component plug, SNAP IN, 500, 20, 4
-
Produkt ID:3016670000Pakningsenhed:50 Styk
Test-disconnect terminal, SNAP IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2436360000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1905080000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1193450000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, blue, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:7910190000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, blue, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1364720000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, grey, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1905110000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2436390000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1905100000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:7910210000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:7910220000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, blue, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1361910000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, green, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1474620000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, grey, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:7910180000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1231330000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, blue, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2436380000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1905090000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2436420000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, dark beige, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1361900000Pakningsenhed:50 Styk
Test-disconnect terminal, Screw connection, red, 4 mm², 27 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
