BLF 3.50/06/180 SN BK BX

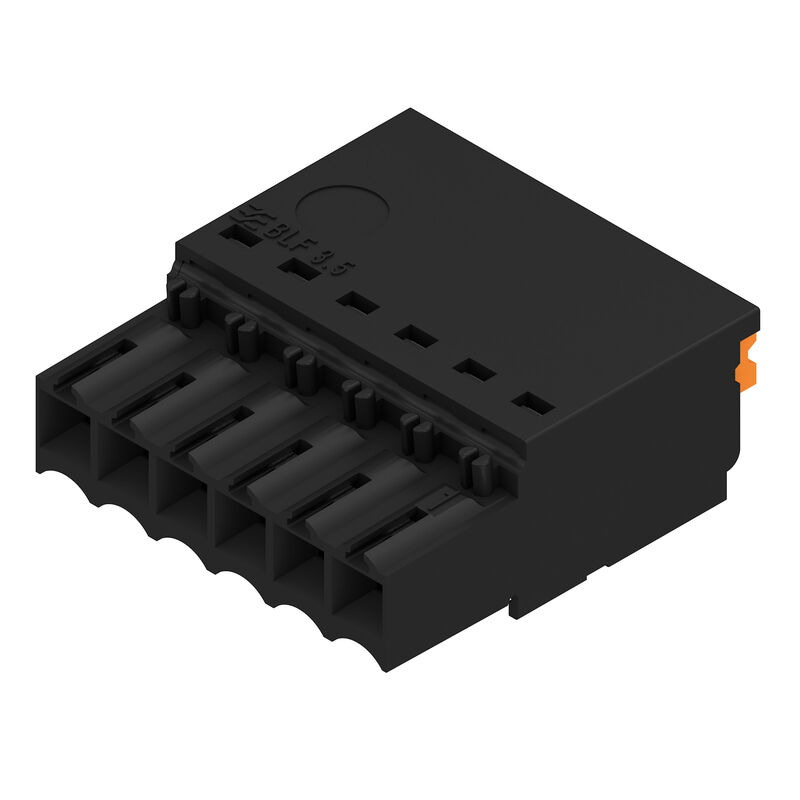

Product image
simillar to illustration
BLF 3.50/06/180 SN BK BX

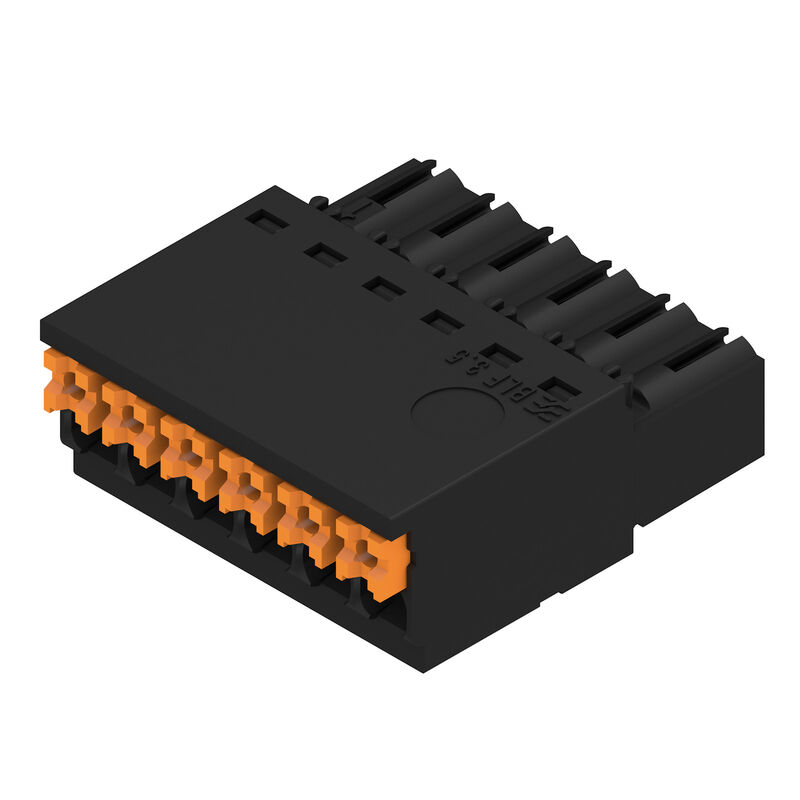

Product image
BLF 3.50/06/180 SN BK BX

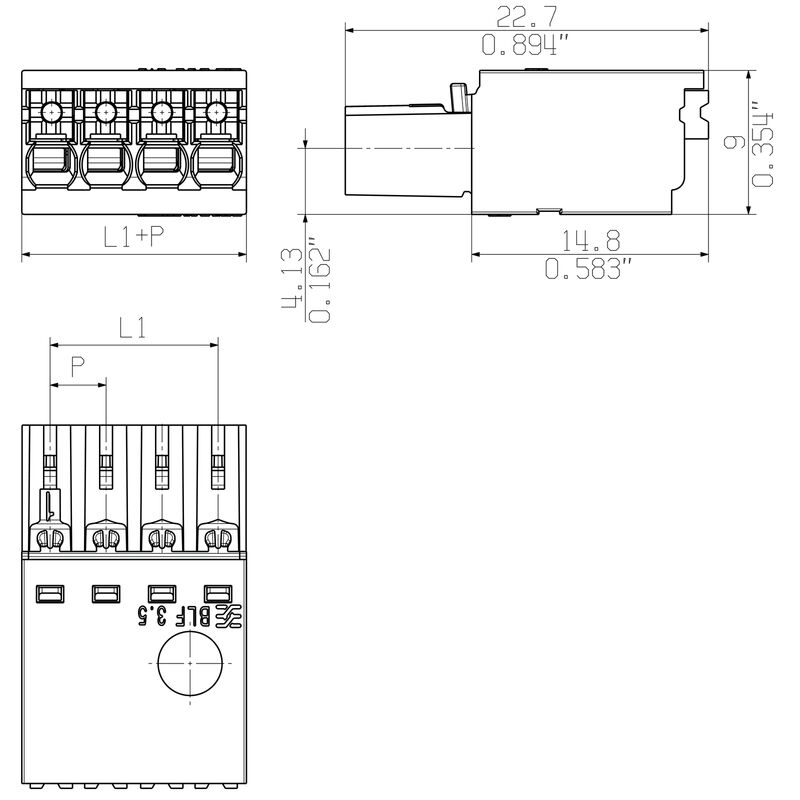

Dimensional drawing
BLF 3.50/06/180 SN BK BX
Visszaszabályozási görbe
BLF 3.50/06/180 SN BK BX
Visszaszabályozási görbe
BLF 3.50/06/180 SN BK BX
A termék előnyei
  • Teljes körű biztonság
  • Nemesacél kalickás ház

BLF 3.50/06/180 SN BK BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 6, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box

Ürün No. 2459320000
Veri sayfasını indir Tekninen tuki Tuotelataukset
Vastineet 16 Samankaltaiset tuotteet 33
Approvals General ordering data Dimensions and weights Экологическое соответствие изделия Системные параметры Данные о материалах Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Упаковка Типовые испытания Important note Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

버전
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 6, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box
주문 번호
2459320000
유형
BLF 3.50/06/180 SN BK BX
GTIN (EAN)
4050118474671
Qty.
84 items
Product data
IEC: 320 V / 17.5 A / 0.14 - 1.5 mm²
UL: 300 V / 10 A / AWG 26 - AWG 16
Packaging
Box

Dimensions and weights

깊이
22,7 mm
Depth (inches)
0,894 inch
높이
9 mm
Height (inches)
0,354 inch
너비
21 mm
Width (inches)
0,827 inch
Масса нетто
4,2 g

Экологическое соответствие изделия

RoHS 준수 상태
Соответствует без исключения
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,201 kg CO2 eq.

Системные параметры

Termékcsalád
OMNIMATE Signal — серия BL/SL 3.50
Csatlakozás típusa
Field connection
Técnica de conexión de conductores
PUSH IN with actuator
Paso en mm (P)
3,5 mm
Paso en pulgadas (P)
0,138 "
Dirección de salida de conductor
180°
Pólusszám
6
L1, mm
17,5 mm
L1, inch
0,689 "
Sorok száma
1
Érintkezősorok száma
1
Névleges keresztmetszet
1,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Érintésvédelem a DIN VDE 0470 szerint
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Objemový odpor
≤5 mΩ
Kódolható
Yes
Stripping length
8 mm
Stripping length tolerance
  • min.:
    0 mm
  • max.:
    1 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264-A
Plugging cycles
25
Plugging force/pole, max.
6 N
Pulling force/pole, max.
6 N

Данные о материалах

Insulating material
PA GF
Colour
black
Colour of operational elements
orange
Tabela kolorów (podobny)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 400
≤ 600
UL 94 flammability rating
V-0
Материал контакта
Cu-alloy
Powierzchnia styku
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Диапазон зажима, мин.
0,14 mm²
Диапазон зажима, макс.
1,5 mm²
Поперечное сечение подключаемого провода AWG, мин.
AWG 26
Поперечное сечение подключаемого провода AWG, макс.
AWG 16
jednodrutowe, min. H05(07) V-U
0,14 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,14 mm²
Flexibilis, max. H05(07) V-K
1,5 mm²
С наконечником DIN 46 228/4, мин.
0,28 mm²
műanyag galléros érvéghüvellyel, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
med ändhylsa enligt DIN 46 228/1, max.
1 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0463000000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
14,7 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
17,1 A
Rated current, max. number of poles (Tu=40°C)
13,1 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
320 V
Névleges feszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
2,5 kV
odporność na zwarcia
1 x 1s with 120 A

Rated data acc. to CSA

Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Intensidad nominal (Use Group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 16
Wire cross-section, AWG, max.
AWG 26

Rated data acc. to UL 1059

Intézet (cURus)
CURUS
Tanúsítvány száma (cURus)
E60693
Névleges feszültség (B felhasználási csoport / UL 1059)
300 V
Névleges feszültség (C felhasználási csoport / UL 1059)
50 V
Névleges feszültség (D felhasználási csoport / UL 1059)
300 V
Névleges áram (B felhasználási csoport/ UL 1059)
10 A
Névleges áram (D felhasználási csoport/ UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Vezeték keresztmetszet, AWG, max.
AWG 16
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Упаковка

Packaging
Ящик
VPE length
348 mm
VPE Breite
138 mm
VPE height
30 mm

Типовые испытания

Visual and dimensional test
  • Standard:
    IEC 60512-1-1:2002-02
  • Test:
    dimensional inspection
  • Evaluation:
    passed
  • Standard:
    IEC 60512-1-2:2002-02
  • Test:
    weight check
  • Evaluation:
    passed
  • Standard:
    IEC 61984:2001-10 section 6.2
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Durability of markings
  • Standard:
    IEC 60068-2-70:1995-12 test Xb
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking CSA, durability
  • Evaluation:
    available
Test: Misengagement (Non-interchangeability)
  • Standard:
    IEC 60512-13-5:2006-02
  • Test:
    intentional plugging
  • Evaluation:
    passed
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    IEC 60999-1:1999-11 section 9.1, IEC 60947-1:2011-03 section 8.2.4.5.1
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1:1999-11 section 9.4 bzw. section 8.10
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    IEC 60999-1:1999-11 section 9.5
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed

Important note

Соответствие IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
