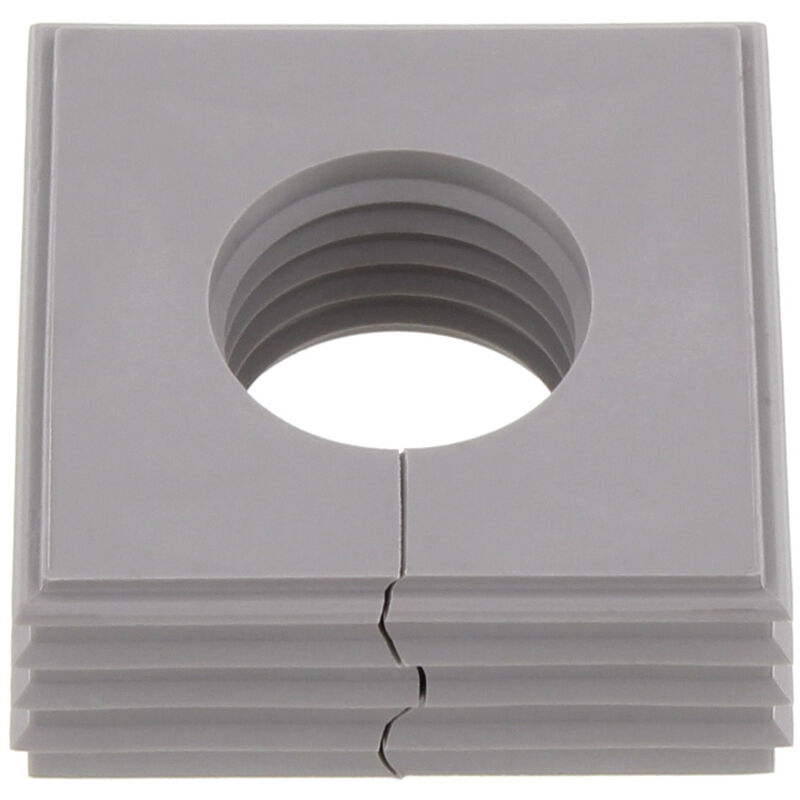

CABTITE SE 21-22 LRG GY
Similar to illustration

CABTITE SE 21-22 LRG GY

Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…90 °C, IP66

Produkt ID 2584440000
Download datablad Engineering Support Product Downloads
Anvendte produkter 22
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Versión
Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…90 °C, IP66
Código
2584440000
Tipo
CABTITE SE 21-22 LRG GY
GTIN (EAN)
4050118616484
Qty.
10 Styk

Dimensions and weights

Profundidad
17,7 mm
Depth (inches)
0,697 inch
Wysokość
42,8 mm
Height (inches)
1,685 inch
Anchura
42,8 mm
Width (inches)
1,685 inch
Net weight
26,3 g

Temperatures

Operating temperature
-40 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Dichtelement
1 large sealing element
Halogen
No
Klasifikace hořlavosti UL 94
V-0
Outer cable diameter, max.
22 mm
Outer cable diameter, min.
21 mm
Silicone
No
Stupeň krytí
IP66
Werkstoff
TPE

Classifications

ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07
