Properties
| Version | MetalliCard, Device markers, silver |
| Order No. | 1474420000 |

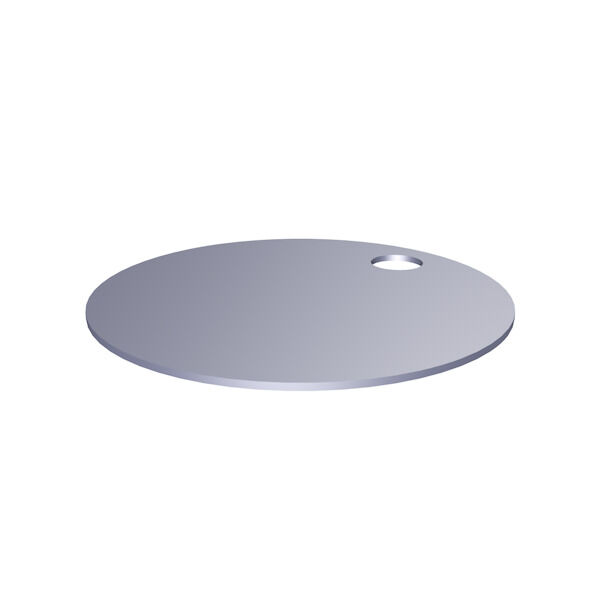

| Type | CC-M DIA 30 ST SDR |
| GTIN (EAN) | 4050118290608 |
| Qty. | 1 items |
| Depth | 0.5 mm |
| Depth (inches) | 0.02 inch |
| Diameter | 30 mm |
| Net weight | 2.68 g |
| Operating temperature range | -55...130 °C |
| Colour | silver |
| Material |
Micro-etched stainless steel 1.4301 (ST)
Stainless steel 1.4301 |
| Number of markers per combination | 1 MetalliCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Size of labelling field | 28.2 x 28.2 mm |
| Diameter | 30 mm |
| Drill-hole diameter | 4.2 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1474420000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1474420000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
