Egenskaber
| Version | Heavy duty connector assemblies, Pin, Socket connector, Helukabel JZ-600 7G4 or similar, Shielded: No, Number of poles: 6 |
| Order No. | 2712310100 |

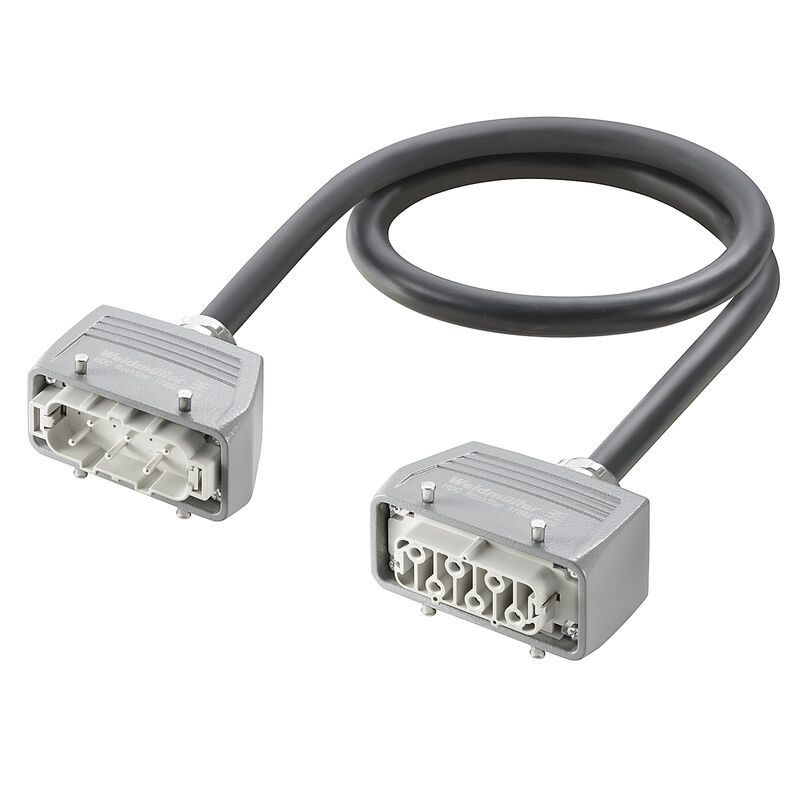

| Type | CH-HIAC-HIAD-06-0100-AC |
| GTIN (EAN) | 4050118751437 |
| Qty. | 1 Styk |
| Net weight | 1.106,64 g |
| Limit temperature | -40 °C ... 80 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | ef244396-ddde-4d05-9b64-973eef6c7a15 |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Protection degree | IP65 |
| Rated voltage | 400 V |
| Connector |
|
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 |
| Core cross-section | 4 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Helukabel JZ-600 7G4 or similar |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001576 |
| ETIM 7.0 | EC001576 |
| ETIM 8.0 | EC001576 |
| ETIM 9.0 | EC001576 |
| ECLASS 9.0 | 27-06-04-02 |
| ECLASS 9.1 | 27-06-91-90 |
| ECLASS 10.0 | 27-06-04-02 |
| ECLASS 11.0 | 27-06-04-02 |
| ECLASS 12.0 | 27-06-04-02 |
| ECLASS 13.0 | 27-06-04-02 |
| ECLASS 14.0 | 27-06-04-02 |
| ROHS | Conform |
