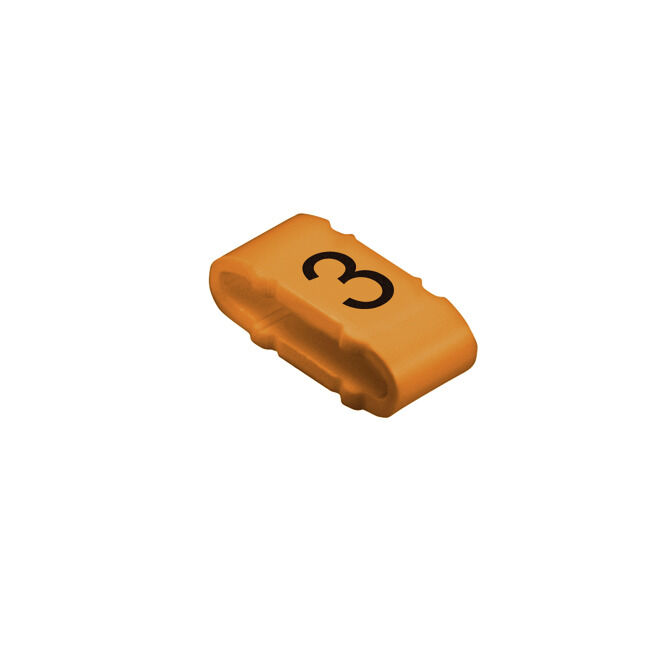

CLI M 2-4 OR/SW 3 MP
CLI M 2-4 OR/SW 3 MP

CLI M 2-4 OR/SW 3 MP

CableLine, Repères de fils et de câbles, 10 - 317 mm, 4 x 11.3 mm, Orange

Ürün No. 1733651512
Veri sayfasını indir Productdownloads Mühendislik desteği
İlgili ürünler 8
Omologazioni Informations générales de commande Dimensions and weights 온도 Conformité environnementale du produit Obecné údaje Označení vodičů a kabelů Besorolások

Omologazioni

ROHS
Conforme

Informations générales de commande

Version
CableLine, Repères de fils et de câbles, 10 - 317 mm, 4 x 11.3 mm, Orange
Order No.
1733651512
Type
CLI M 2-4 OR/SW 3 MP
GTIN (EAN)
4032248451135
수량
100 items

Dimensions and weights

Depth
3 mm
Profondeur (pouces)
0,118 inch
Height
4 mm
Magasság (coll)
0,157 inch
Width
11,3 mm
폭 (인치)
0,445 inch
순중량
0,12 g

온도

Operating temperature range
-30...80 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC superiori a 0,1 wt%

Obecné údaje

Basic material
PVC, měkké, bez kadmia
Colour
Oranžová
Colour of printing
černá
Halogen
Ja
Imprint
3
Material colour according to resistance code
3
Number of markers per combination
1 Einzelteil = Leiter- und Kabelmarkierer
Number of markers per packaging unit
  • Lieferform:
    Einzelteil
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-30 °C
Orientation of print
horizontal
Printed characters
Números
Printing method
impreso por calor
Recommended industries
Procesos
Maquinaria
Type of printing
Standard
UL 94 flammability rating
V-0
Version
MultiPack
Width
11,3 mm

Označení vodičů a kabelů

Conductor cross-section, max.
500 mm²
Conductor cross-section, min.
16 mm²
Conductor O.D.
10 - 317 mm
Conductor O.D., max.
317 mm
Conductor O.D., min.
10 mm
Cross-section for connected wire
16 - 500 mm²
Halogen
Yes

Besorolások

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
