Egenskaber

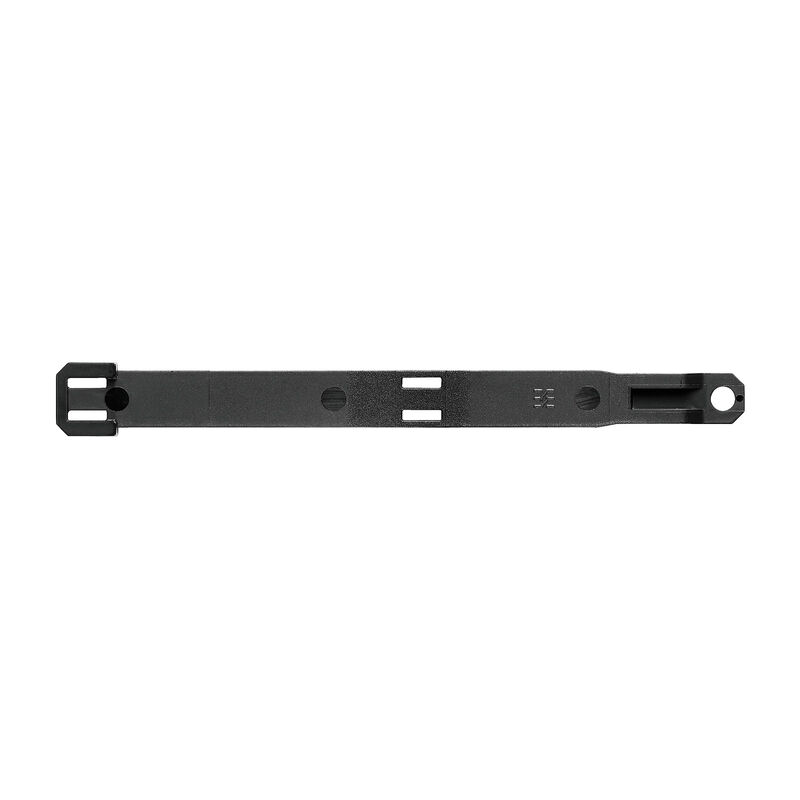

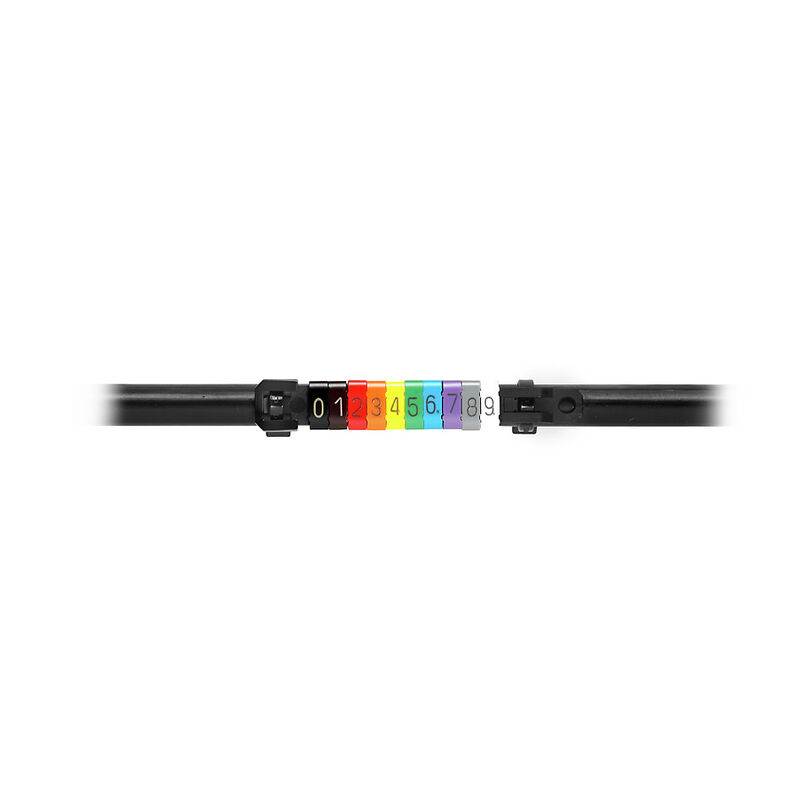

| Version | CableLine, Accessories, 10 - 317 mm, 70 x 11.3 mm, black |
| Order No. | 0524400000 |
| Type | CLI MH 70 HSTR |
| GTIN (EAN) | 4008190075057 |
| Qty. | 100 Styk |
| Depth | 3 mm |
| Depth (inches) | 0,118 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 11,3 mm |
| Width (inches) | 0,445 inch |
| Net weight | 0,81 g |
| Operating temperature range | -30...100 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | black |
| Material | Polyamide 66 |
| Material colour according to resistance code | 0 |
| Number of markers per combination | 1 Component part = Accessories |
| Number of markers per packaging unit |
|
| Operating temperature range | -30...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -30 °C |
| Recommended industries |
Process
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Version | halogen-free |
| Width | 11,3 mm |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 10 - 317 mm |
| Conductor O.D., max. | 317 mm |
| Conductor O.D., min. | 10 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0524400000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
