Egenskaber
| Version | CableLine, Mounting mandrel |
| Order No. | 0572901666 |

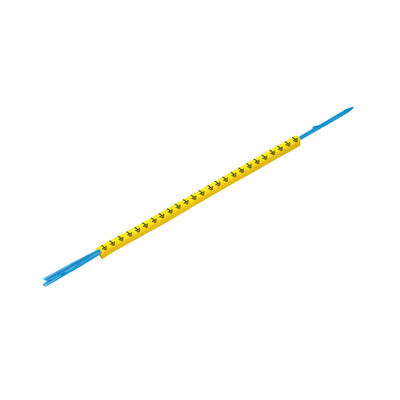

| Type | CLI R 1-3 GE/SW O |
| GTIN (EAN) | 4008190099855 |
| Qty. | 10 Styk |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 3 mm |
| Height (inches) | 0,118 inch |
| Width | 4,2 mm |
| Width (inches) | 0,165 inch |
| Net weight | 2,4 g |
| Operating temperature range | -30...80 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | yellow |
| Colour of printing | black |
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Material colour according to resistance code | 4 |
| Number per mandrel | 25 |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Orientation of print | horizontal |
| Printed characters | Upper-case letters |
| Printing | O |
| Printing method | hot-embossing |
| Recommended industries |
Process
Machinery |
| Type of printing | Standard |
| UL 94 flammability rating | V-0 |
| Version | MultiPack |
| Width | 4,2 mm |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.5 - 5 mm |
| Conductor O.D., max. | 5 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 1.5 - 4 mm² |
| Halogen | Yes |
| Product Change Notification |
[49687](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[49688](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
