Egenskaber

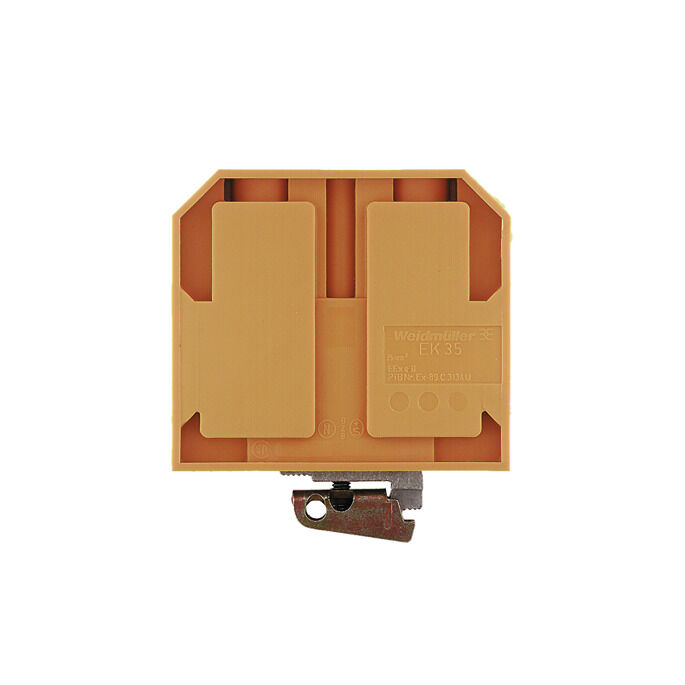

| Version | PE terminal, Screw connection, yellow, green, 35 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66 |
| Order No. | 0354760000 |
| Type | EK 35 |
| GTIN (EAN) | 4008190187972 |
| Qty. | 20 Styk |
| Depth | 67,5 mm |
| Depth (inches) | 2,657 inch |
| Height | 58 mm |
| Height (inches) | 2,283 inch |
| Width | 16 mm |
| Width (inches) | 0,63 inch |
| Net weight | 95,05 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | PA 66 |
| Colour |
yellow
green |
| UL 94 flammability rating | V-2 |
| Certificate No. (ATEX) | TUEV18ATEX8207U |
| Certificate No. (IECEX) | IECEXTUR18.0017U |
| Wire cross section max. (ATEX) | 50 mm² |
| Wire cross section max. (IECEX) | 50 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
With PE connection One end without connector |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | Yes |
| Rail | TS 32 |
| N-function | No |
| PE function | Yes |
| PEN function | Yes |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | when screwed in |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 35 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 6.5 x 1.0 mm |
| Clamping range, max. | 50 mm² |
| Clamping range, min. | 6 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 50 mm² |
| Connection cross-section, stranded, min. | 16 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B9 |
| Number of connections | 2 |
| Stripping length | 20 mm |
| Tightening torque, max. | 6 Nm |
| Tightening torque, min. | 6 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 10 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 6 mm² |
| Certificate No. (CSA) | 12400-127 |
| Current size C (CSA) | 145 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 2 AWG |
| Wire cross section min. (CSA) | 6 AWG |
| Installation advice | Direct mounting |
| Rail | TS 32 |
| Standards | IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 8 |
| Rated short-time current | 4200 A (35 mm²) |
| Centre screw on PE terminals | M 3.5 |
| Tightening torque range for fixing screw | 0.8...1.6 Nm |
| PEN function | Yes |
| Rated cross-section | 35 mm² |
| Rated voltage to adjoining terminal | 800 V |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 0,26 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 2 AWG |
| Conductor size Factory wiring min. (UR) | 6 AWG |
| Conductor size Field wiring max. (UR) | 2 AWG |
| Conductor size Field wiring min. (UR) | 6 AWG |
| Approval/Certificate/Document of Conformity |
[Attestation Of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37743)
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_207456) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253946) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89280) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89282) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207097) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_207098) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253947) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36570) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59052) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0354760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0354760000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[NTI SAK 16/32](https://mdcop.weidmueller.com/mediadelivery/asset/900_207107) [NTI SAK 35/32](https://mdcop.weidmueller.com/mediadelivery/asset/900_207109) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000901 |
| ETIM 7.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| ECLASS 9.0 | 27-14-11-41 |
| ECLASS 9.1 | 27-14-11-41 |
| ECLASS 10.0 | 27-14-11-41 |
| ECLASS 11.0 | 27-14-11-41 |
| ECLASS 12.0 | 27-14-11-41 |
| ECLASS 13.0 | 27-25-01-03 |
| ECLASS 14.0 | 27-25-01-03 |
| Approvals |          |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
