Egenskaber
| Version | 120mm², Trapezoidal crimp |
| Order No. | 1502090000 |

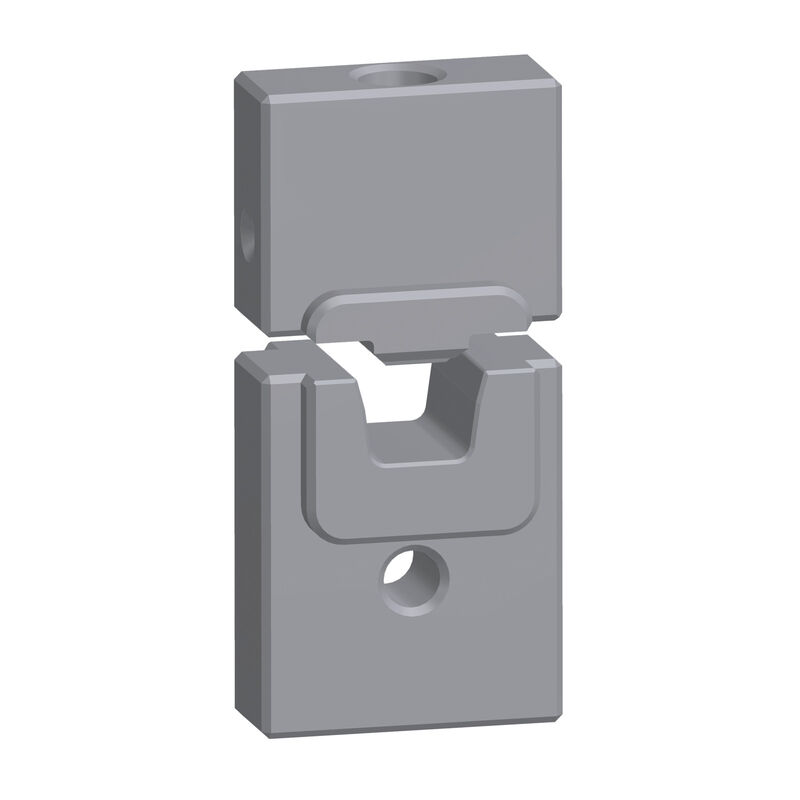

| Type | ES APG 80 AEH 120 |
| GTIN (EAN) | 4050118310146 |
| Qty. | 1 Styk |
| Net weight | 386 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Crimp cross-section copper | 120 |
| Crimping width | 24 mm |
| Crimping width in mm | 24 |
| Conductor cross-section, max. AWG | 4/0 |
| Crimping range, max. | 120 mm² |
| Cable lug cross section |
|
| Crimping type/profile | Trapezoidal crimp |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
