Egenskaber

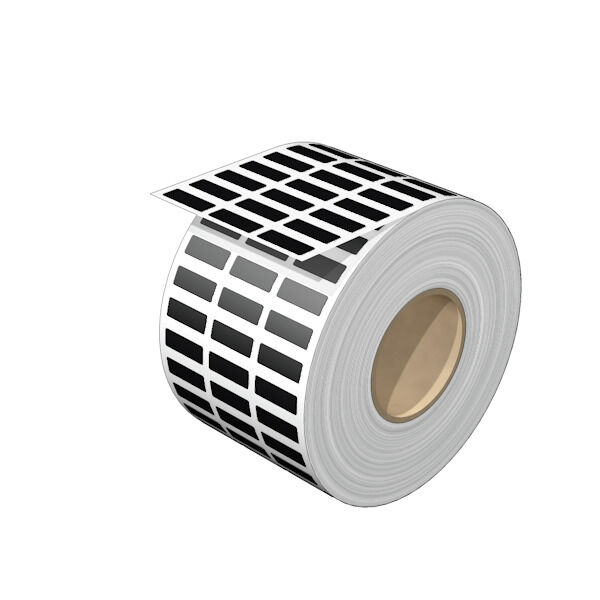

| Version | ESG, Device markers, 6 x 17 mm, black |
| Order No. | 2005130000 |
| Type | ESG 6/17 MM SW |
| GTIN (EAN) | 4050118390612 |
| Qty. | 3.000 Styk |
| Depth | 0,1 mm |
| Depth (inches) | 0,004 inch |
| Height | 6 mm |
| Height (inches) | 0,236 inch |
| Width | 17 mm |
| Width (inches) | 0,669 inch |
| Net weight | 0,04 g |
| Operating temperature range | -40...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | black |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |
| Number of markers per combination | 1 Label reel = 3000 Device markers |
| Number of markers per packaging unit |
|
| Number per roll | 3000 |
| Operating temperature range | -40...120 °C |
| Operating temperature range, max. | 120 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-0 |
| Version |
Self-adhesive
halogen-free |
| Width | 17 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65658) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2005130000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2005130000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
