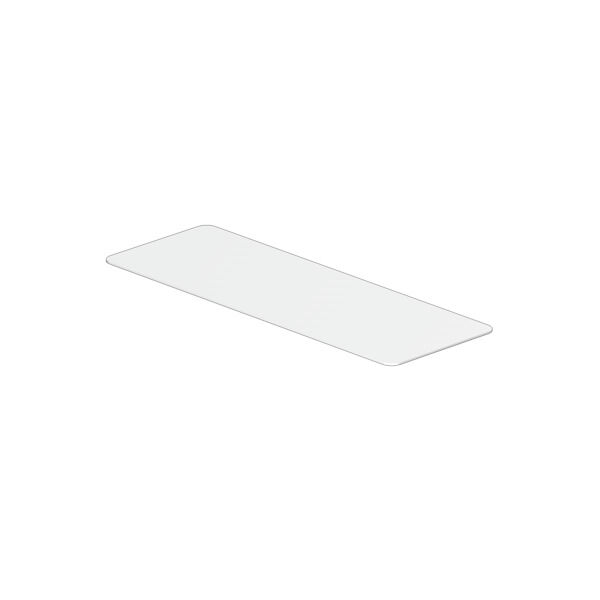

ESG 6/17 MM WS

ESG, Device markers, 6 x 17 mm, white

Produkt ID 2005100000

Egenskaber

General ordering data

Version	ESG, Device markers, 6 x 17 mm, white
Order No.	2005100000
Type	ESG 6/17 MM WS
GTIN (EAN)	4050118390728
Qty.	3.000 Styk

Dimensions and weights

Depth	0,1 mm
Depth (inches)	0,004 inch
Height	6 mm
Height (inches)	0,236 inch
Width	17 mm
Width (inches)	0,669 inch
Net weight	0,039 g

Temperatures

Operating temperature range

-40...120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Adhesive	Acrylate adhesive
Approval acc. to UL 969	Yes
Colour	white
compatible printer	[THM MULTIMARK](~/p/2599430000) [THM MULTIMARK PLUS](~/p/2599440000)
Halogen	No
Material	Polyester

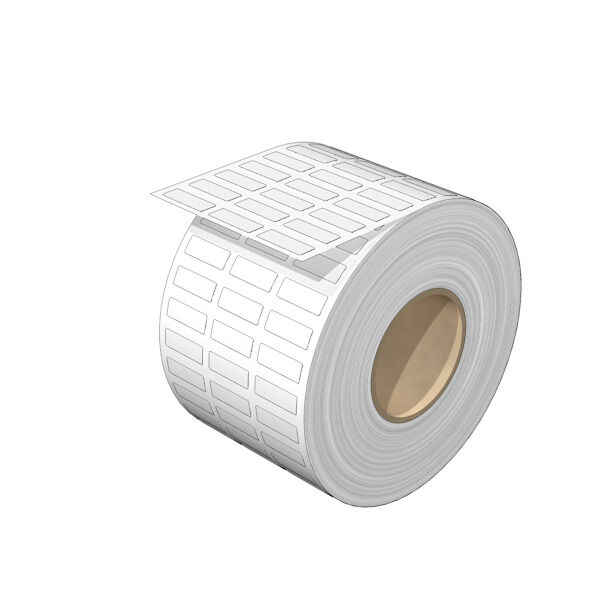

Number of markers per combination	1 Label reel = 3000 Device markers
Number of markers per packaging unit	Form of supply: Label reel Number of markers per combination: 3000
Number per roll	3000
Operating temperature range	-40...120 °C
Operating temperature range, max.	120 °C
Operating temperature range, min.	-40 °C
UL 94 flammability rating	V-0
Version	Self-adhesive halogen-free
Width	17 mm

Device markers

Halogen

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65652)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2005100000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2005100000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001288
ETIM 7.0	EC001288
ETIM 8.0	EC001288
ETIM 9.0	EC001288
ECLASS 9.0	27-40-06-29
ECLASS 9.1	27-40-06-29
ECLASS 10.0	27-40-06-29
ECLASS 11.0	27-28-11-04
ECLASS 12.0	27-28-11-04
ECLASS 13.0	27-28-11-04
ECLASS 14.0	27-28-11-04

Approvals

ROHS

Conform
