Egenskaber

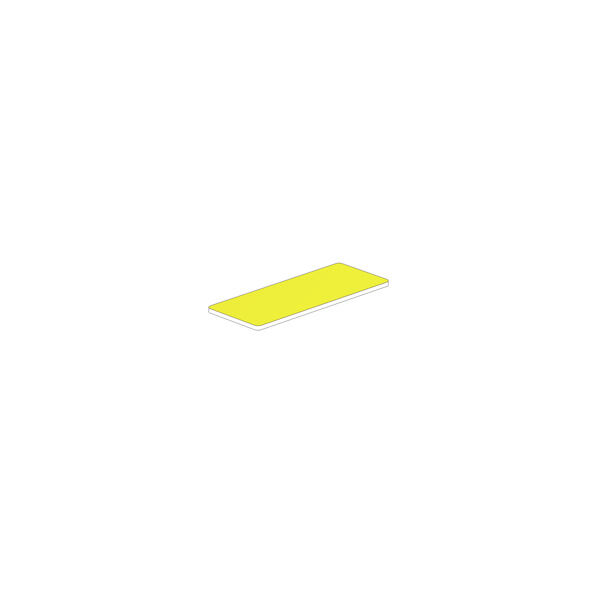

| Version | ESG, Device markers, 8 x 20 mm, yellow |
| Order No. | 2620960000 |
| Type | ESG-FO 8/20 MM GE |
| GTIN (EAN) | 4050118626025 |
| Qty. | 1.000 Styk |
| Depth | 0,55 mm |
| Depth (inches) | 0,022 inch |
| Height | 8 mm |
| Height (inches) | 0,315 inch |
| Width | 20 mm |
| Width (inches) | 0,787 inch |
| Net weight | 0,05 g |
| Operating temperature range | -30...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | PE-foam with acrylic adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |

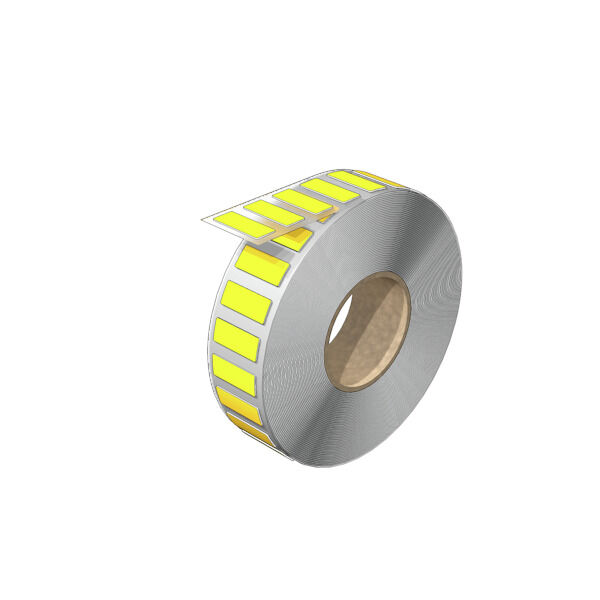

| Number per roll | 1000 |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Size of labelling field | 8 x 20 mm |
| UL 94 flammability rating | V-0 |
| Version |
Self-adhesive
halogen-free |
| Width | 20 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2620960000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
