ESG-FO 8/20 MM WS
ESG-FO 8/20 MM WS

ESG-FO 8/20 MM WS

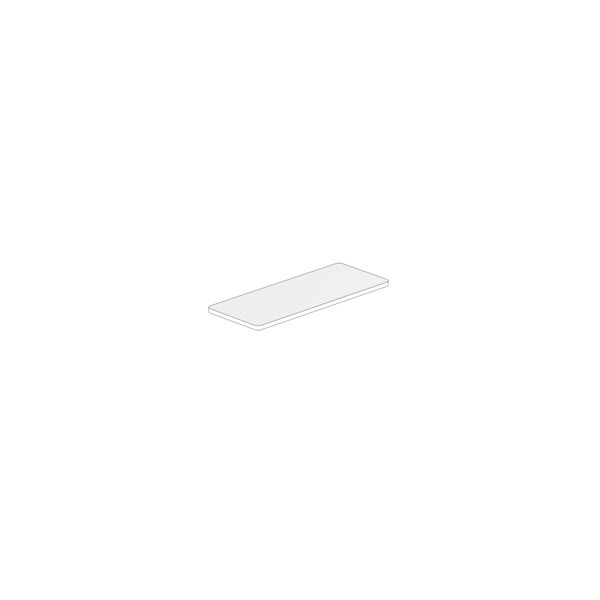

ESG, Device markers, 8 x 20 mm, white

Produkt ID 2620950000
Download datablad Produktdownloads Engineering-support
Tilbehør 3 Er tilbehør til 1 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Versione
ESG, Device markers, 8 x 20 mm, white
Rendelési szám
2620950000
Tipo
ESG-FO 8/20 MM WS
GTIN (EAN)
4050118626032
Qty.
1 000 Styk

Dimensions and weights

Profondità
0,55 mm
Depth (inches)
0,022 inch
Posizione verticale
8 mm
Height (inches)
0,315 inch
Larghezza
20 mm
Width (inches)
0,787 inch
Net weight
0,05 g

Temperatures

Operating temperature range
-30...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Approval acc. to UL 969
Yes
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)

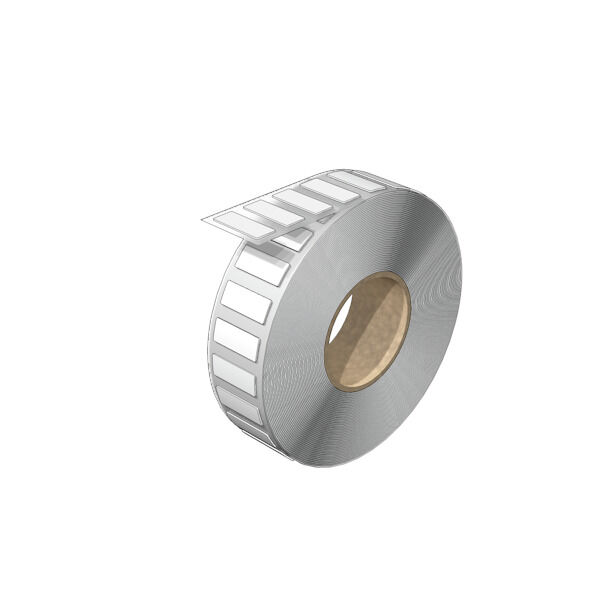

Number per roll
1000
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Size of labelling field
8 x 20 mm
UL 94 flammability rating
V-0
Version
Self-adhesive
halogen-free
Width
20 mm
zakres temperatur roboczych, min.
-30 °C
Галогены
No
Напечатанные символы
without
Основной материал
Polyester
Цветовой код
white
접착물
PE-foam with acrylic adhesive

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
