Egenskaber

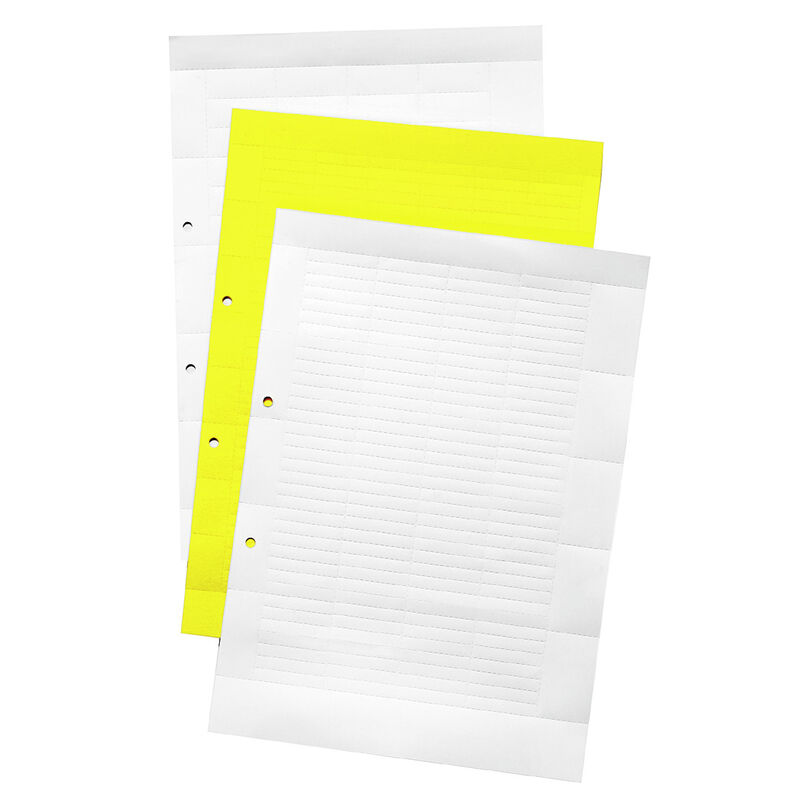

| Version | Terminal markers, Insert markers, 500 x 12.5 mm, white |
| Order No. | 0139000000 |
| Type | ESO/SCHS1 500X12,5X0,3 |
| GTIN (EAN) | 4008190047252 |
| Qty. | 100 Styk |
| Depth | 1 mm |
| Depth (inches) | 0,039 inch |
| Height | 500 mm |
| Height (inches) | 19,685 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 2,46 g |
| Operating temperature range | -40...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Material | Paper |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 Label sheet = Insert markers |
| Number of markers per packaging unit |
|
| Number per sheet | 1 |
| Operating temperature range | -40...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -40 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| UL 94 flammability rating | HB |
| Width | 12,5 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0139000000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
