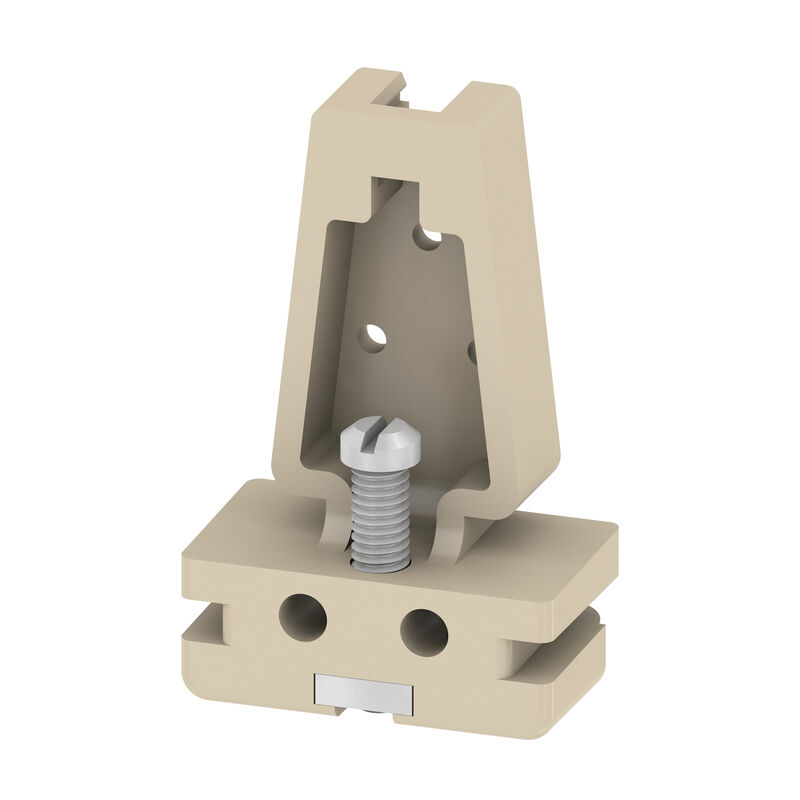

EWK 2

EWK 2

Denna produkt är snart inte tillgänglig längre.

Viimeinen tilauspäivä: /Date(1798671600000)/

Alternativ produkt: 0206160000

End bracket, beige, TS 32, V-0, Wemid, Width: 15 mm, 100 °C

Tuotteen tunnus 0199360000
Lataa tietosivu 엔지니어링 지원 제품 다운로드
Lisävarusteet 6 On lisävaruste 83 Samankaltaiset tuotteet 47
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) General Classifications

Approvals

ROHS
Conform

General ordering data

Wersja
End bracket, beige, TS 32, V-0, Wemid, Width: 15 mm, 100 °C
Order No.
0199360000
Тип
EWK 2
GTIN (EAN)
4008190023546
Qty.
50 items

Dimensions and weights

Głębokość
42 mm
Depth (inches)
1,654 inch
Высота
27 mm
Height (inches)
1,063 inch
Ширина
15 mm
Width (inches)
0,591 inch
Čistá hmotnost
7,12 g

Temperatures

Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
beige
UL 94 flammability rating
V-0

System specifications

Version
For the terminals
Nosná lišta
TS 32

Additional technical data

Installation advice
Direct mounting
Locking
for screw fixing
Type of mounting
when screwed in

Conductors for clamping (rated connection)

Tightening torque, min.
0,5 Nm
Åtdragningsmoment, max.
1 Nm

General

Указание по установке
Direct mounting
Укомплектованная монтажная рейка
TS 32

Classifications

ETIM 8.0
EC001041
ETIM 9.0
EC001041
ETIM 10.0
EC001041
ECLASS 14.0
27-25-03-02
ECLASS 15.0
27-25-03-02
