Egenskaber
| Version | , 4-channel distributor LIMITER, IP65, IP66, Round |
| Order No. | 2624380000 |

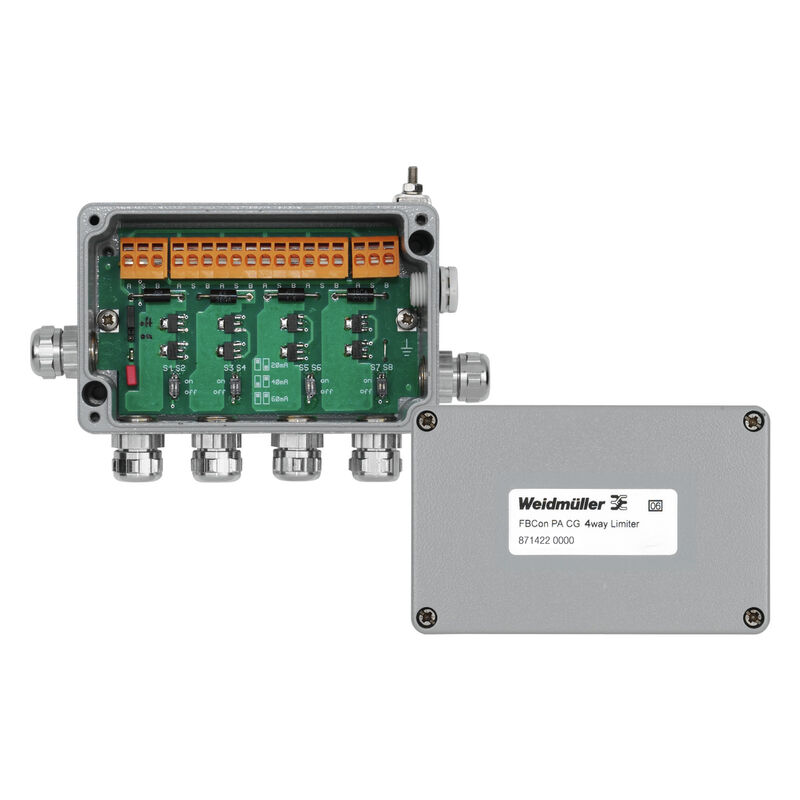

| Type | FBCON PA CG 4WAY LIMITER |
| GTIN (EAN) | 4050118627909 |
| Qty. | 1 Styk |
| Height | 34 mm |
| Height (inches) | 1,339 inch |
| Width | 125 mm |
| Width (inches) | 4,921 inch |
| Length | 80 mm |
| Length (inches) | 3,15 inch |
| Net weight | 688 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3a5f5913-76fc-4ff5-8563-4463f80bbe02 |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable entry | Round |
| Cable glands | Brass cable gland |
| Connection type PE | Spur line with cable gland |
| Current limiting |
adjustable
20 mA, 40 mA, 60 mA |
| Design of housing | With pressure compensation element |
| Housing main material | Aluminium |
| Housing surface | powder coating |
| Number of poles | 3 |
| Operating voltage |
10 ... 31 V DC
30 V UC |
| Operating voltage Umax, max. | 30 V DC |
| Pollution severity | 3 |
| Power consumption in standby mode | 7 mA |
| Protection degree |
IP65
IP66 |
| Type of distribution | 4-channel distributor LIMITER |
| Type of mounting | surface-mounted |
| Approval/Certificate/Document of Conformity |
[Certification UL for Canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_317640)
[Certification UL for US](https://mdcop.weidmueller.com/mediadelivery/asset/900_317641) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_313469) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_234184) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2624380000) |
| User Documentation |
[Application-Guide-Planning and installing Fieldbus networks-using-FBCon_english_deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_90760)
[FBCon Segment Calculator_english](https://mdcop.weidmueller.com/mediadelivery/asset/900_101984) [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_313848) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate no. (cULus) | E141197 |
