Egenskaber

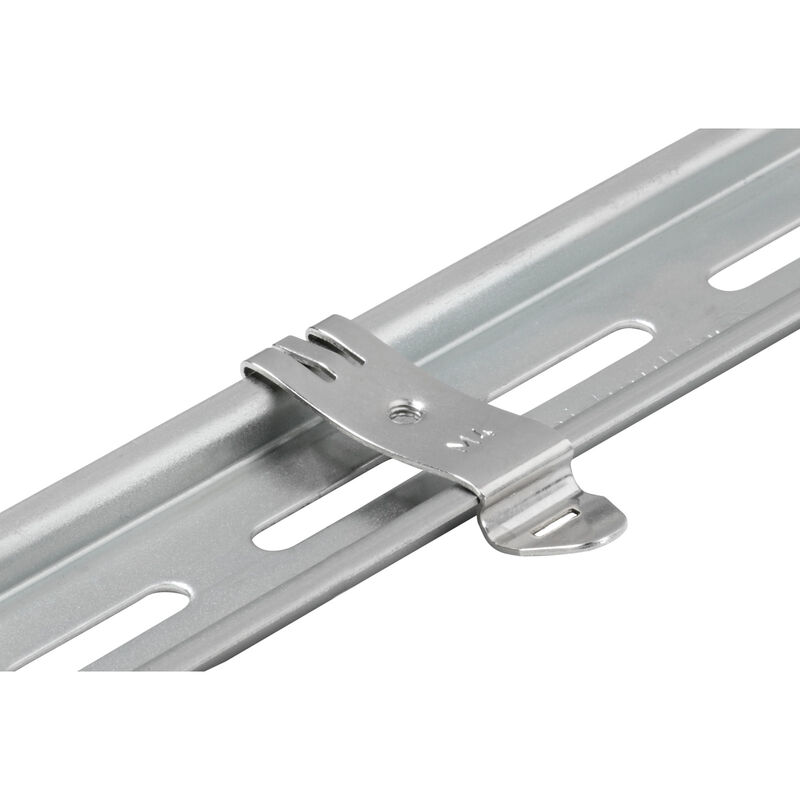

| Version | Mounting foot on mounting rail, silver, Steel, bright finish, M 4, Width: 14 mm |
| Order No. | 0687900000 |
| Type | FM 4/TS35 |
| GTIN (EAN) | 4008190086459 |
| Qty. | 40 Styk |

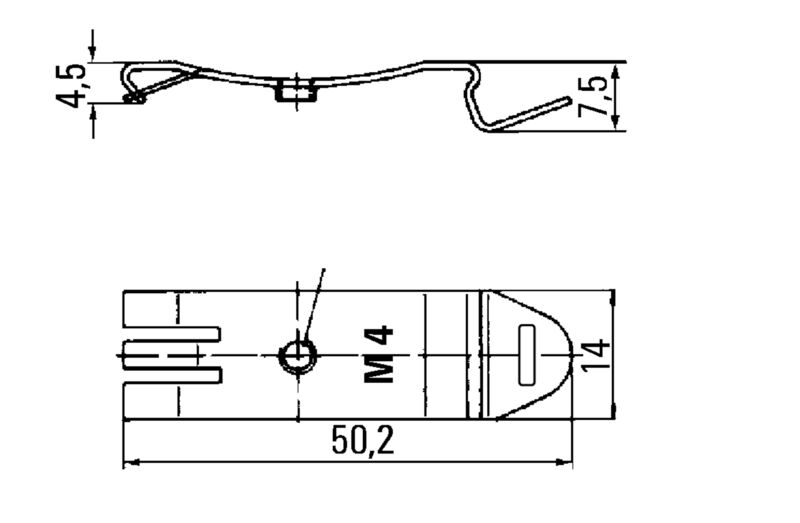

| Depth | 7 mm |
| Depth (inches) | 0,276 inch |
| Height | 50,2 mm |
| Height (inches) | 1,976 inch |
| Width | 14 mm |
| Width (inches) | 0,551 inch |
| Net weight | 4,708 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel, bright finish |
| Surface finish | nickel-plated |
| Colour | silver |
| Version | For the mounting rails |
| Rail | TS 35 |
| Explosion-tested version | No |
| Type of fixing | Snap-on |
| Internal thread | M 4 |
| Pitch in mm (P) | 14 mm |
| Rail | TS 35 |
| Surface finish | nickel-plated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_49021) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0687900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0687900000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002625 |
| ETIM 7.0 | EC002625 |
| ETIM 8.0 | EC002625 |
| ETIM 9.0 | EC002625 |
| ECLASS 9.0 | 27-18-28-07 |
| ECLASS 9.1 | 23-15-90-90 |
| ECLASS 10.0 | 27-18-28-07 |
| ECLASS 11.0 | 27-18-28-07 |
| ECLASS 12.0 | 27-18-28-07 |
| ECLASS 13.0 | 27-18-28-07 |
| ECLASS 14.0 | 27-18-28-07 |
| ROHS | Conform |
