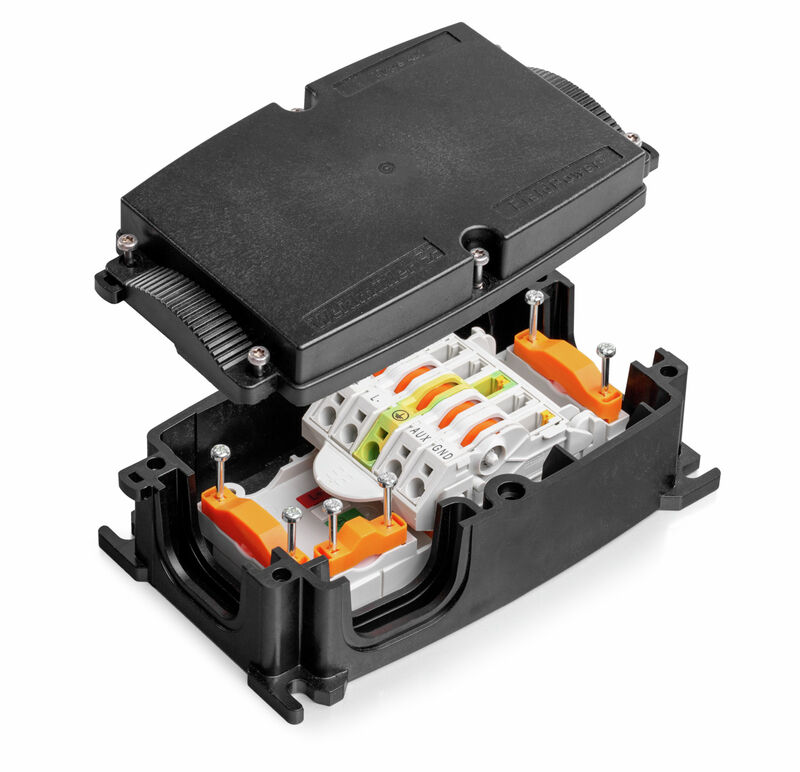

FP BOX DCM

FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, Insulation displacement connection (IDC), PUSH IN

Produkt ID 3021790000

Egenskaber

General ordering data

Version	FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, Insulation displacement connection (IDC), PUSH IN
Order No.	3021790000
Type	FP BOX DCM
GTIN (EAN)	4099986937857
Qty.	1 Styk

Dimensions and weights

Depth	67 mm
Depth (inches)	2,638 inch
Height	181 mm
Height (inches)	7,126 inch
Width	104 mm
Width (inches)	4,094 inch
Net weight	542,93 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

General data

Material	Polycarbonate, glass fibre reinforced
Insulating material	Polycarbonate
Enclosure material	glass-fibre reinforced polycarbonate
Silicone	No
Colour	black
Protection degree	IP65 in complete state
UL 94 flammability rating	5VA
Torque for lid screws	2 Nm
Lid attachment	TX20 screws
Type of mounting	Screw mounting Fixing lugs
Installation advice	Lid screws included
Can be coded	Coded on PE + GND
Voltage type	AC
Number of poles	5
Number of connections / pole	1
Wire connection method	Insulation displacement connection (IDC) PUSH IN

Rated data acc. to UL

Standards

UL 2237

Downloads

Catalogues

[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000214
ETIM 7.0	EC000214
ETIM 8.0	EC000214
ETIM 9.0	EC000214
ECLASS 9.0	27-14-24-09
ECLASS 9.1	27-14-24-09
ECLASS 10.0	27-14-24-09
ECLASS 11.0	27-14-24-09
ECLASS 12.0	27-14-24-09
ECLASS 13.0	27-14-24-09
ECLASS 14.0	27-14-24-09
