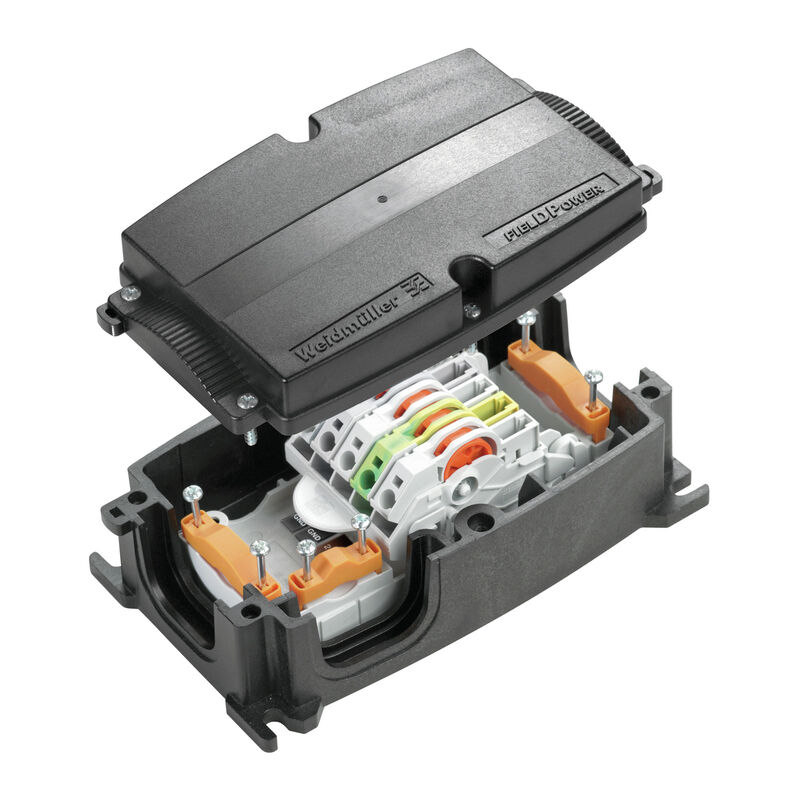

FP BOX MPB

FieldPower® power distribution box, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC)

Item No. 1180300000

Properties

General ordering data

Version	FieldPower® power distribution box, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC)
Order No.	1180300000
Type	FP BOX MPB
GTIN (EAN)	4032248972012
Qty.	1 items

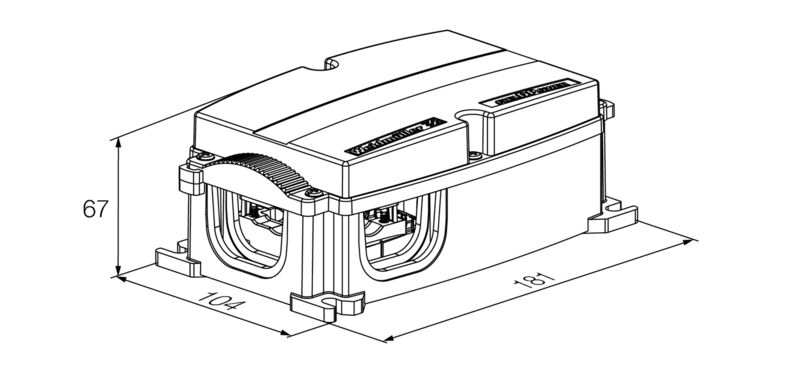

Dimensions and weights

Depth	67 mm
Depth (inches)	2.638 inch
	181 mm
Height (inches)	7.126 inch
Width	104 mm
Width (inches)	4.094 inch
Net weight	548.81 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	5f19cd84-8946-4797-9386-3ac323b95c10

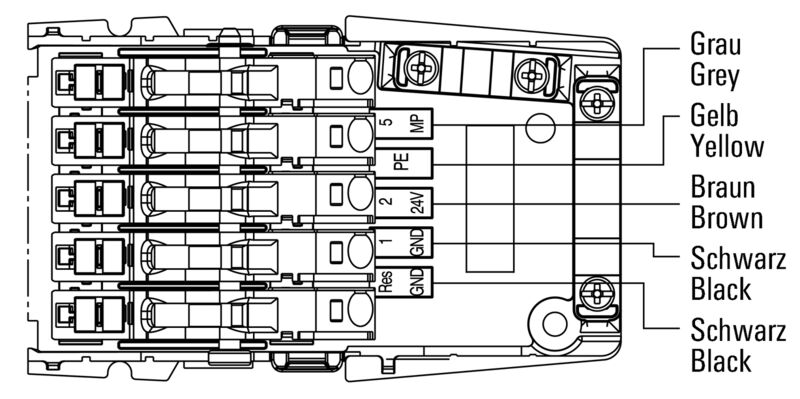

Clamping capacity

Connection data - contact element power bus

Wire connection method:

Insulation displacement connection (IDC)
Blade size of operating tool:

0.6 x 3.5 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

1.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

2.5 mm²
Conductor connection cross-section, finely stranded, max.:

6 mm²
Conductor connection cross-section, finely stranded, min.:

2.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

2.5 mm²

Connection data - contact element Branch / Feed-in

Wire connection method:

PUSH IN
Blade size of operating tool:

0.6 x 3.5 mm
Stripping length:

14 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

0.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

0.5 mm²
Conductor connection cross-section, finely stranded, max.:

10 mm²
Conductor connection cross-section, finely stranded, min.:

0.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

0.5 mm²
Conductor connection cross-section with wire end ferrule:
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  Twin wire-end ferrules
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²

General data

Material	Polycarbonate, glass fibre reinforced
Insulating material	Polycarbonate
Enclosure material	glass-fibre reinforced polycarbonate
Silicone	No
Colour	black
Protection degree	IP65 in complete state
UL 94 flammability rating	5VA
Torque for lid screws	2 Nm
Lid attachment	TX20 screws
Type of mounting	Screw mounting Fixing lugs
Installation advice	Lid screws included
Can be coded	Yes
Number of poles	5
Number of connections / pole	1
Wire connection method	PUSH IN Insulation displacement connection (IDC)

Rated data acc. to IEC

Rated data acc. to IEC for contact element

Standard:

IEC 60947-7-1, IEC 60947-7-2
Rated voltage:

800 V
Rated impulse withstand voltage:

8 kV
Rated current (3 loaded poles):

41 A
Rated current (4 loaded poles):

25 A

Rated data acc. to UL

Rated data acc. to UL for contact element	Standard: UL 1059 Note: for use with UL-listed TC-ER cables Conductor connection cross-section, AWG, max.: AWG 10 Conductor connection cross-section, AWG, min.: AWG 14 Rated voltage: 600 V Rated current: 30 A
Standards	not UL approved

Downloads

Approval/Certificate/Document of Conformity	[Manufacturer's Declaration FieldPower® BOX, BOX FUSE and Terminal variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_42270)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_95947)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1180300000)
Product Change Notification	[Product Change Notification FieldPower® box base](https://mdcop.weidmueller.com/mediadelivery/asset/900_90698) [Produktänderungsmitteilung FieldPower® Box Unterschale](https://mdcop.weidmueller.com/mediadelivery/asset/900_90699) [Produktänderungsmitteilung FieldPower® Box Schrauben](https://mdcop.weidmueller.com/mediadelivery/asset/900_244950) [Product Change Notification FieldPower® box screws](https://mdcop.weidmueller.com/mediadelivery/asset/900_244951) [Technical change to FieldPower® (GHDE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_306319)
User Documentation	[Manual FieldPower® Box](https://mdcop.weidmueller.com/mediadelivery/asset/900_252971)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000214
ETIM 7.0	EC000214
ETIM 8.0	EC000214
ETIM 9.0	EC000214
ECLASS 9.0	27-14-24-09
ECLASS 9.1	27-14-24-09
ECLASS 10.0	27-14-24-09
ECLASS 11.0	27-14-24-09
ECLASS 12.0	27-14-24-09
ECLASS 13.0	27-14-24-09
ECLASS 14.0	27-14-24-09
