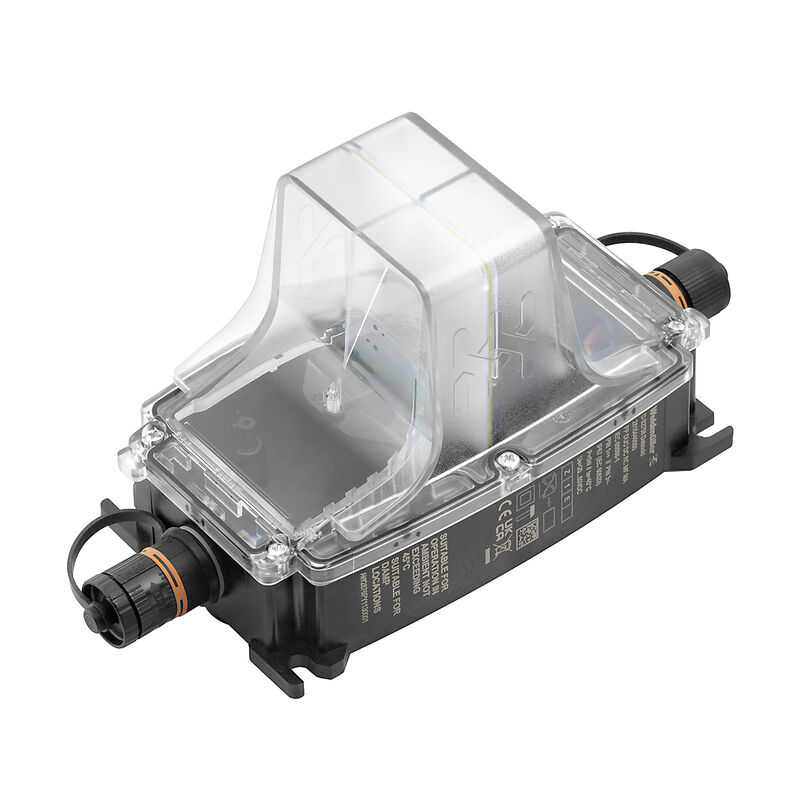

Tuotteen tunnus 2815580000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 5 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Rated data acc. to IEC 60598-1 Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E345151

General ordering data

Order No.
2815580000
Type
FP DUO DC RC MF SP
GTIN (EAN)
4064675303671

Dimensions and weights

Depth
104 mm
Depth (inches)
4,094 inch
Height
121 mm
Height (inches)
4,764 inch
Width
238 mm
Width (inches)
9,37 inch
Net weight
546,48 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...55 °C
Humidity
92 % @ 25 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
4d250b5c-eac1-4909-8961-91bf1e921213

General data

Altitude
≤ 3000 m
Amplitude of deflection
1.5 mm (2-9 Hz)
Connector cross-section, max.
2,5 mm²
Couleur (TCC)
Cool White, 6000K
6000K
Durata di servizio LED
> 50.000 h
Gyorsulás mértéke
5 m/s² (@ 9-200 Hz)
Halogen
No
Insulation voltage
<500 V (housing/PE)
Klasa energetyczna (zgodnie z dyrektywą UE nr 874/2012)
Not required
LED 모듈 형태
Other

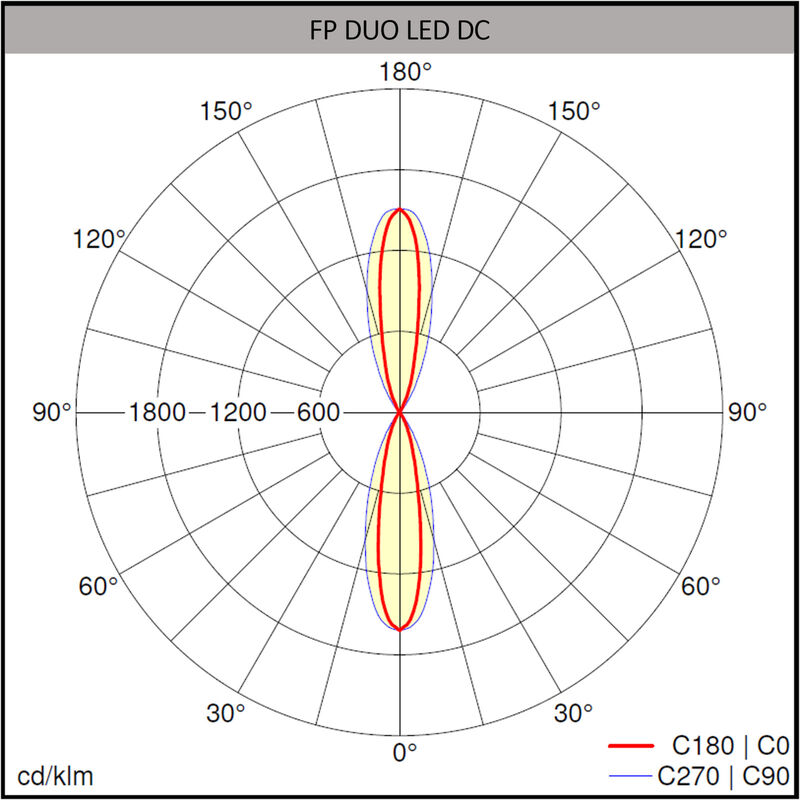

Light current
496 lm
Ljusstyrka
5 000 cd
Mounting position, installation notice
Arbitrary
Nominal voltage
24 V
Peak acceleration, type L
70 m/s²
Pollution severity
2
Protección contra cortocircuito
Yes
internal
Protection class
II
Protection degree
IP67
Sección de conductor, mín.
0,5 mm²
Shock resistance EN 60721-3-3
Class 3M3 portable
Silicone
No
Surge voltage category
II
Type of connection
Plug-in round connector with fixed number of poles
Type of mounting
Screw mounting
UL 94 flammability rating
V-0
Vibration resistance EN 60721-3-3
Class 3M3 sinusoidal, stationary
光電流（両方向の合計）
496 lm

Rated data acc. to IEC 60598-1

DC input voltage range
20...60 V DC
Input voltage
20…60 V DC
Nominal current
20 mA
Power rating
5 W

Classifications

ETIM 8.0
EC000996
ETIM 9.0
EC000996
ETIM 10.0
EC000996
ECLASS 14.0
27-11-06-35
ECLASS 15.0
27-11-06-35
