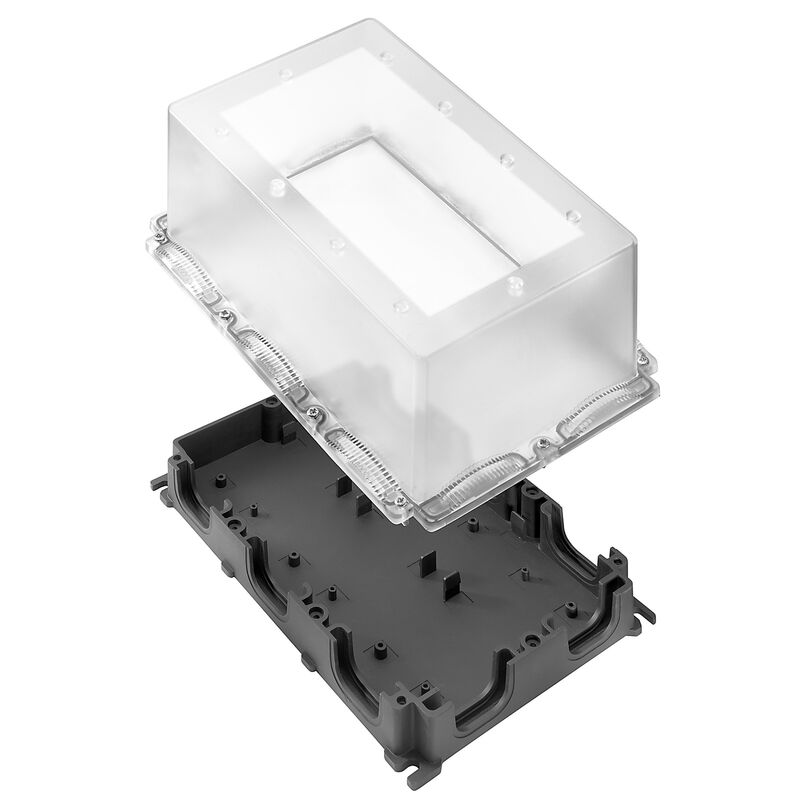

FP ENC BSTS 155 3M

FieldPower® enclosures, 196 mm, 284 mm, 155 mm, IP65, in closed state, Polycarbonate, glass-fibre reinforced polycarbonate, black, Transparent

Produkt ID 2632940000

Egenskaber

General ordering data

Version	FieldPower® enclosures, 196 mm, 284 mm, 155 mm, IP65, in closed state, Polycarbonate, glass-fibre reinforced polycarbonate, black, Transparent
Order No.	2632940000
Type	FP ENC BSTS 155 3M
GTIN (EAN)	4050118664492
Qty.	1 Styk

Dimensions and weights

Depth	155 mm
Depth (inches)	6,102 inch
Height	196 mm
Height (inches)	7,717 inch
Width	284 mm
Width (inches)	11,181 inch
Net weight	990,86 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	5f19cd84-8946-4797-9386-3ac323b95c10

General data

Material	Polycarbonate, glass fibre reinforced Polycarbonate
Enclosure material	Polycarbonate glass-fibre reinforced polycarbonate
Silicone	No
Colour	black Transparent
Protection degree	IP65 in closed state
UL 94 flammability rating	V-0
Torque for lid screws	2 Nm
Lid attachment	TX20 screws
Type of mounting	Screw mounting Fixing lugs
Installation advice	Lid screws included

Downloads

Approval/Certificate/Document of Conformity	[UL Certificate FieldPower® complete enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_252846) [Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205605) [Application notes -- Application note FieldPower® size 2 and 3 plastic enclosure temperature information](https://mdcop.weidmueller.com/mediadelivery/asset/900_245107) [Application notes -- Applikationshinweis FieldPower® Größe 2 und 3 Kunststoffgehäuse Temperaturbewertung](https://mdcop.weidmueller.com/mediadelivery/asset/900_245108) [Application note FieldPower® ur20 and uc20](https://mdcop.weidmueller.com/mediadelivery/asset/900_256407) [Applikationshinweis FieldPower® ur20 und uc20](https://mdcop.weidmueller.com/mediadelivery/asset/900_256408)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2632940000)
User Documentation	[Manual FieldPower® enclosure size 3](https://mdcop.weidmueller.com/mediadelivery/asset/900_79207)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000261
ETIM 7.0	EC000261
ETIM 8.0	EC000261
ETIM 9.0	EC000261
ECLASS 9.0	27-18-01-01
ECLASS 9.1	27-18-92-90
ECLASS 10.0	27-18-01-01
ECLASS 11.0	27-18-01-01
ECLASS 12.0	27-18-01-01
ECLASS 13.0	27-18-01-01
ECLASS 14.0	27-18-01-01

Approvals

Approvals	![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E256877
