Egenskaber

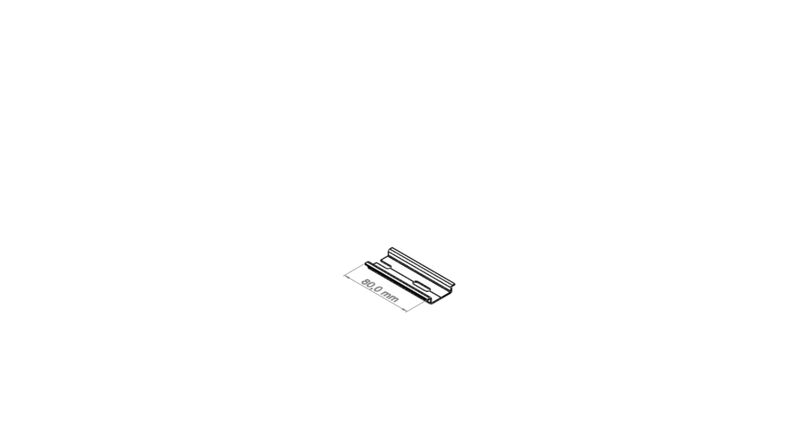

| Version | Field Power® terminal rail, Steel, galvanized, 80 mm, for aluminium lid |
| Order No. | 2633730000 |
| Type | FP ENC DR07 080 XC A |
| GTIN (EAN) | 4050118664379 |
| Qty. | 5 Styk |
| Depth | 7,5 mm |
| Depth (inches) | 0,295 inch |
| Height | 35 mm |
| Height (inches) | 1,378 inch |
| Width | 80 mm |
| Width (inches) | 3,15 inch |
| Net weight | 26 g |
| Operating temperature | -40 °C...85 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Installation advice | Screws included |
| Insulating material | Steel |
| Material | Steel, galvanized |
| Colour | silver |
| Material | Steel, galvanized |
| Insulating material | Steel |
| Colour | silver |
| Type of mounting | Screw mounting |
| Mounting position, installation notice | for aluminium lid |
| Installation advice | Screws included |
| Version | with slot |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ROHS | Conform |
Tilbehør
Er tilbehør til
-
Produkt ID:2659740000Pakningsenhed:1 Styk
FieldPower® enclosures, 191 mm, 191 mm, 178 mm, IP65, in complete state, Aluminium, Aluminium
-
Produkt ID:8000051702Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC
-
Produkt ID:8000044517Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 20A, 24 V, DC
-
Produkt ID:8000044515Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC
-
Produkt ID:8000051770Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 48 V, DC
-
Produkt ID:8000044520Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 48 V, DC
-
Produkt ID:2632950000Pakningsenhed:1 Styk
FieldPower® enclosures, 196 mm, 284 mm, 220 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, Aluminium, black, Aluminium
-
Produkt ID:2632840000Pakningsenhed:1 Styk
FieldPower® enclosures, 191 mm, 279 mm, 178 mm, IP65, in complete state, Aluminium, Aluminium
-
Produkt ID:2659770000Pakningsenhed:1 Styk
FieldPower® enclosures, 196 mm, 196 mm, 220 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, Aluminium, black, Aluminium
-
Produkt ID:2887620000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in complete state, 10A, 48 V, DC, PUSH IN
-
Produkt ID:2887610000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 20A, 24 V, DC, PUSH IN
-
Produkt ID:2887630000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 48 V, DC, PUSH IN
-
Produkt ID:2887580000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC, PUSH IN
-
Produkt ID:2887590000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC, PUSH IN
-
Produkt ID:2887600000Pakningsenhed:1 Styk
FieldPower® power supply unit, IP65, in closed state, in complete state, 20A, 24 V, DC, PUSH IN
Enkeltdele
-
Produkt ID:1274150000Pakningsenhed:1 Styk
Klippon EB (Essential Box), Mounting screw, Height: 13.3 mm, Width: 8.5 mm, Depth: 8.5 mm, Material: Steel, galvanized, galvanic zinc plated and passivated, silver
