Egenskaber
| Order No. | 1221590000 |

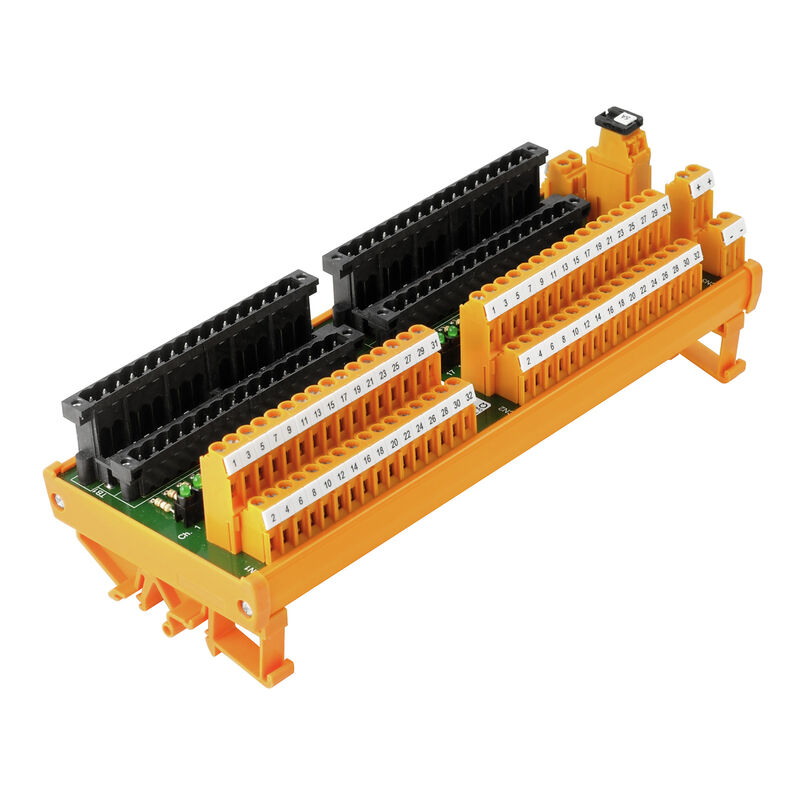

| Type | FTA-C300-32DO-LD-S |
| GTIN (EAN) | 4050118005097 |
| Qty. | 1 Styk |
| Depth | 65 mm |
| Depth (inches) | 2,559 inch |
| Height | 87 mm |
| Height (inches) | 3,425 inch |
| Width | 216 mm |
| Width (inches) | 8,504 inch |
| Net weight | 410 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2e4a427f-c282-4ebf-8ee2-8af7c9348f4e |
| LED status display per channel | green |
| Type of test point | No |
| Fuse per channel | No |
| LED status of the supply voltage | yellow |
| Power supply fuse | 5 A |
| Connection on control side | SLDV-THR 5.08 |
| Operating voltage | 24 V DC ± 10% |
| Max. current per channel | 1 A |
| Rated insulation voltage | < 50 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 0,8 kV |
| Insulation test voltage AC | 0,35 kV |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 6 mm² |
| Product Change Notification | [20220524 Technical change to FTA-C300](https://mdcop.weidmueller.com/mediadelivery/asset/900_257204) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-24-22-16 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E141197 |
