Egenskaber

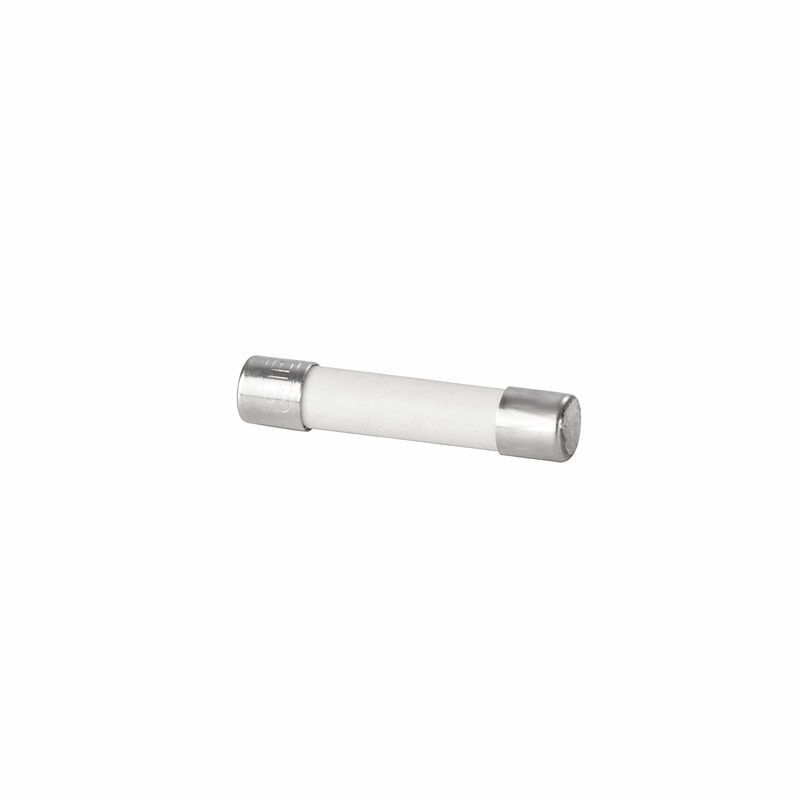

| Version | Miniature fuse, quick-acting, 4 A, G-Si. 5 x 25 |
| Order No. | 0192800000 |
| Type | G 25/4.00A/F BR |
| GTIN (EAN) | 4008190115319 |
| Qty. | 10 Styk |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,24 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Light Grey |
| Version | Fuse accessories |
| Cartridge fuse | G-Si. 5 x 25 |
| Characteristics | quick-acting |
| Colour | Light Grey |
| Colour of the indicator | brown |
| Current | 4 A |
| Melting integral | 40 A²s |
| Optical function display | Yes |
| Power output (@ 1.5 In) | 1,3 W |
| Rated breaking capacity | 1,5 kA |
| Version | Fuse accessories |
| Voltage drop | 180 mV |
| Rated voltage | 250 V |
| Rated current | 4 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ECLASS 14.0 | 27-14-20-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:0225820000Pakningsenhed:10 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 6.3 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
-
Produkt ID:0667420000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 1 x 1/4
-
Produkt ID:0501620000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
-
Produkt ID:1826200000Pakningsenhed:20 Styk
Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, black, Direct mounting
-
Produkt ID:0191120000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 32, V-0, 5VA, KrG, G-Si. 5 x 25
-
Produkt ID:0667520000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 6.3 x 32
-
Produkt ID:0501500000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, dark beige, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 25
-
Produkt ID:0501520000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 25
-
Produkt ID:1730900000Pakningsenhed:50 Styk
Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
-
-
-
Produkt ID:1820950000Pakningsenhed:20 Styk
Z-series, Fuse terminal, Rated cross-section: 6 mm², Tension-clamp connection, black
-
Produkt ID:0178220000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 16 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 10 x 38 mm
-
Produkt ID:0328920000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 30
