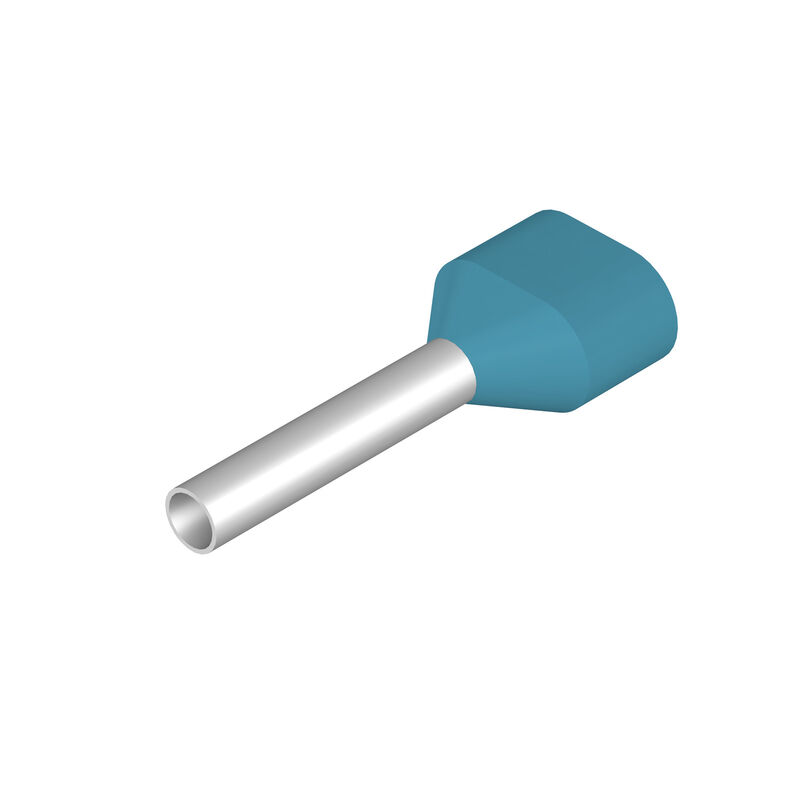

| Utförande | Ändhylsa, Tvilling-ändhylsa, 13 mm, 10 mm, ljusblå |
| Art.nr. | 9005140000 |
| Typ | H0,75/16T ZH HBL SV |
| GTIN (EAN) | 4008190482725 |
| Förp. | 500 items |
| Förpackning | Multipackpåse |
| Nettovikt | 0,15 g |
| RoHS-kompatibilitetsstatus | Kompatibel utan undantag |
| REACH SVHC | No SVHC above 0.1 wt% |
| Artikelbeskrivning | Dubbel-ändhylsa, färg ljusblå |
| Utförande | Tvilling-ändhylsa |
| Avisoleringslängd | 13 mm |
| färgkod | Telemecanique |
| Kontaktytans diameter (D1) | 1,7 mm |
| Kontaktytans längd (L2) | 10 mm |
| Kragbredd (B) | 3 mm |
| Kraghöjd | 5,5 mm |
| L1 i mm | 16 mm |
| Ledardiameter | 0,75 mm² |
| Ledardiameter, AWG, max | AWG 18 |
| Metallkapseltjocklek (S1) | 0,15 mm |
| Tjocklek plastkrage (S2) | 0,3 mm |
| Godkännande/Certifikat/Dokument om överensstämmelse | |
| Teknikuppgifter Data | |
| Eplan Data Portal | |
| CADENAS eCATALOG | |
| WSCAD Universe | |
| Användardokumentation | |
| Kataloger |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
| ROHS | Uppfyllelse |
-
