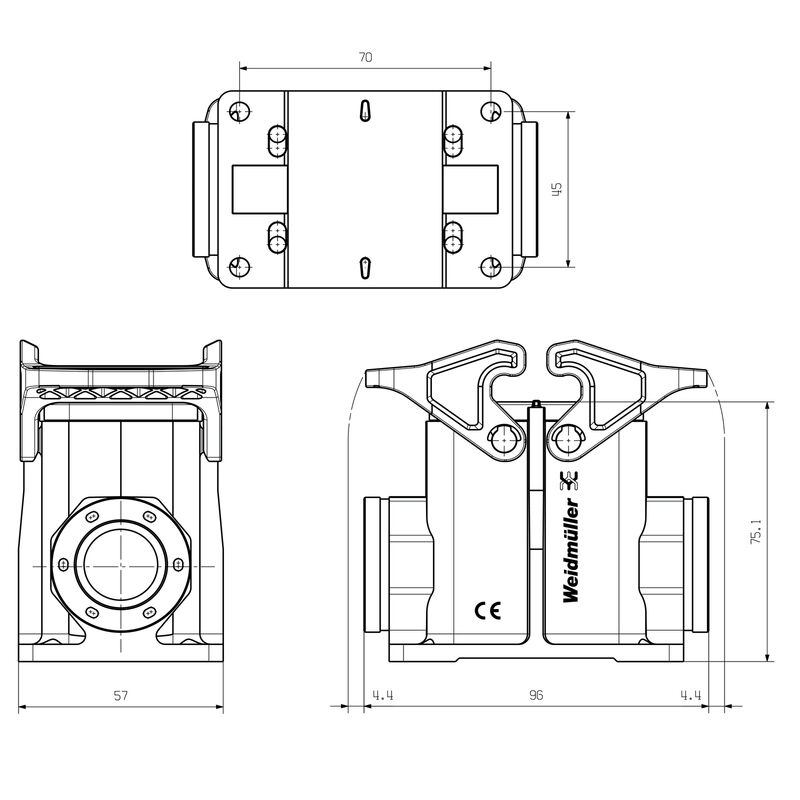

Drawing

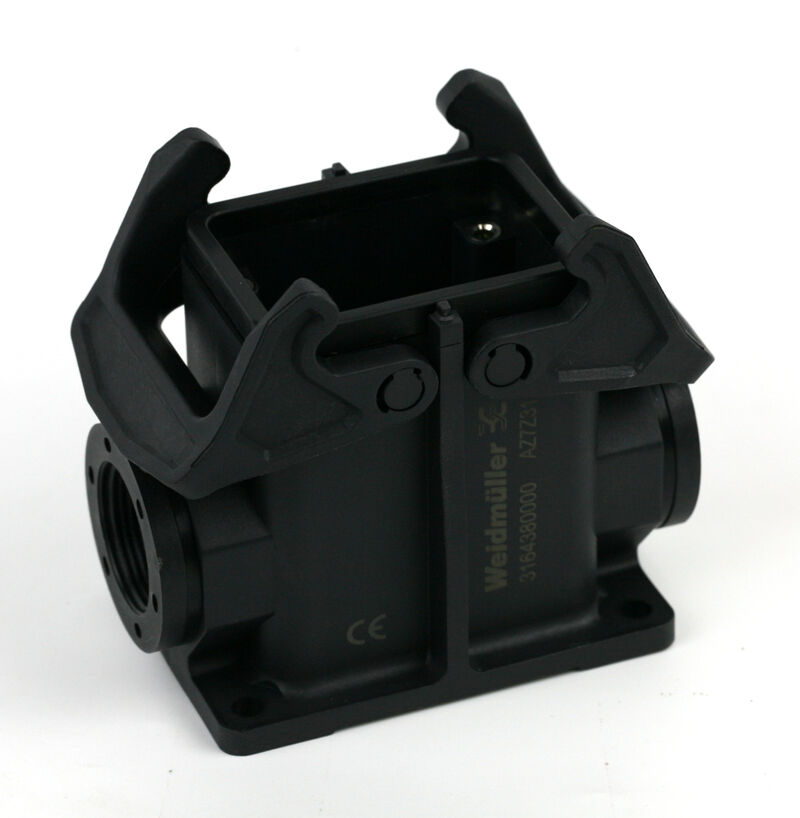

HDC 06B SBU 2M25 BP

HDC enclosures, Installation size: 3, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: 1*M25, M 25, M 32

Item No. 3164380000
Download data sheet Engineering Support
Accessories 7 Is accessory of 4 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 3, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: 1*M25, M 25, M 32
Order No.
3164380000
Type
HDC 06B SBU 2M25 BP
GTIN (EAN)
4099987800624
Qty.
1 items

Dimensions and weights

Depth
96 mm
Depth (inches)
3,78 inch
Height
75,1 mm
Height (inches)
2,957 inch
Width
57 mm
Width (inches)
2,244 inch
Net weight
225 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Cable entry
w. thread
Total length housing
96 mm

General data

Protection degree
IP65
in plugged condition
Surface finish
Plastic-coated
UL 94 flammability rating
V-0

Version

Abdeckung
without cover
BG
3
Clamp version
Side-locking clamp
Colour (RAL)
RAL 9005
Gänga (inre)
M 25
Horní část/dolní část/víčko
lower part
Number of cable entry sideways
2
Número de entradas de cable en la parte superior
0
Rögzítőrendszer kivitele
Side-locking clamp on lower side
Size of cable entries
1*M25
M 25
M 32
Suitable for ModuPlug®
Yes
uszczelka
NBR
Version boîtier
Base housing
Резьба (наружная)
M 25
설계
Standard
설치 사이즈
3
유형
Base housing
케이블 인입
w. thread

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
