Egenskaber
| Version | HDC enclosures, Size: 3, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, End-locking clamp, lower side, high, Size of cable entries: M 32 |
| Order No. | 2543960000 |
| Type | HDC 16D TSLU 1M32G EMC |
| GTIN (EAN) | 4050118648713 |
| Qty. | 1 Styk |

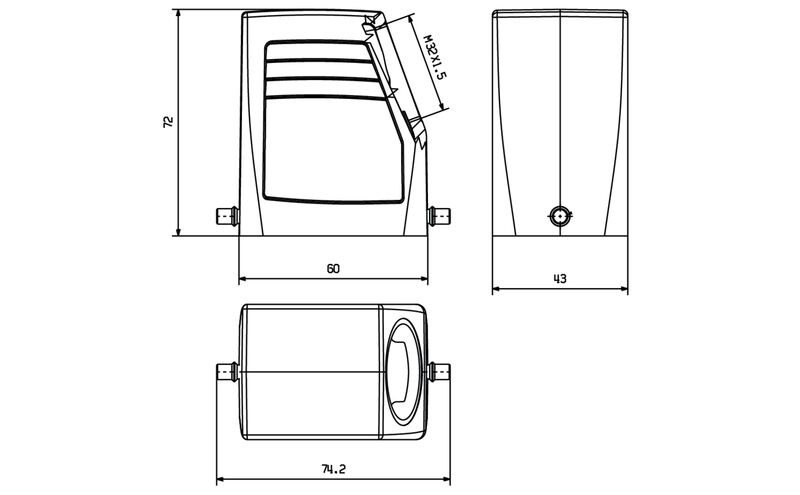

| Depth | 60 mm |
| Depth (inches) | 2,362 inch |
| Height | 72 mm |
| Height (inches) | 2,835 inch |
| Width | 43 mm |
| Width (inches) | 1,693 inch |
| Net weight | 164 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Cable entry | w. thread |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| UL 94 flammability rating | V-0 |
| BG | 3 |
| Cable entry | w. thread |
| Clamp version | End-locking clamp |
| Colour (RAL) | RAL 9011 |
| Design | high |
| Design of housing |
Cable entry from side
Plug housing |
| Design of locking system | End-locking clamp, lower side |
| Internal thread | M 32 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Sealing | FPM |
| Size | 3 |
| Size of cable entries | M 32 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | upper part |
| Type | Plug |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72309) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2543960000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2543960000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
