HDC 24B SLU 1M25G

HDC 24B SLU 1M25G

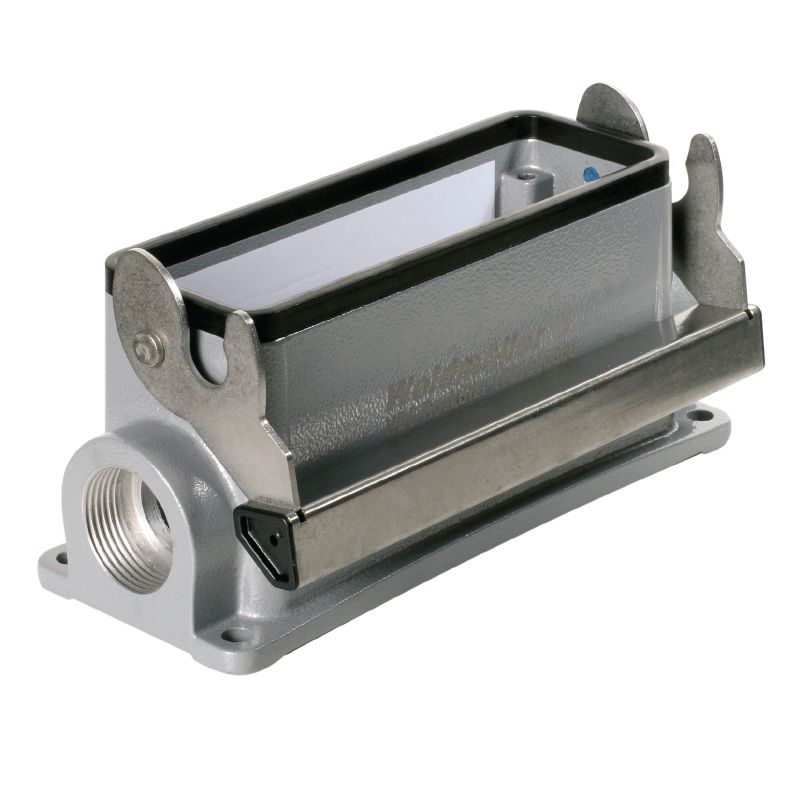

HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Base housing, End-locking clamp, lower side, Standard, Size of cable entries: M 25

Produkt ID 1901560000
Download datablad Engineering-support Produktdownloads
Tilbehør 25 Er tilbehør til 18 Anvendte produkter 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E92202

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Base housing, End-locking clamp, lower side, Standard, Size of cable entries: M 25
Código
1901560000
Type
HDC 24B SLU 1M25G
GTIN (EAN)
4032248521395
Qty.
1 Styk

Dimensions and weights

Height
64 mm
Height (inches)
2,52 inch
Width
76,8 mm
Width (inches)
3,024 inch
Medida de fijación, altura
45 mm
Mounting dimension - width
132 mm
Net weight
426 g

Temperatures

Hőmérsékleti határérték
-40 °C ... 125 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Cable entry
w. thread
Height of base B1
5 mm
Height of housing B
64 mm
Hole pitch length A2
132 mm
Total length housing
120 mm
Width base C1
57,5 mm
Width housing C
43 mm

General data

IP65
in plugged condition
Surface finish
Powder coating

Version

BG
8
Cable entry
w. thread
Clamp version
End-locking clamp
Colour (RAL)
RAL 7035
Cover
without cover
Design
Standard
Design of housing
Base housing
Design of locking system
End-locking clamp, lower side
Installation size
8
Internal thread
M 25
Number of cable entry on top
0
Number of cable entry sideways
1
Sealing
NBR
Size of cable entries
M 25
Suitable for ModuPlug®
No
Top part/bottom part/lid
lower part
Type
Base housing

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
