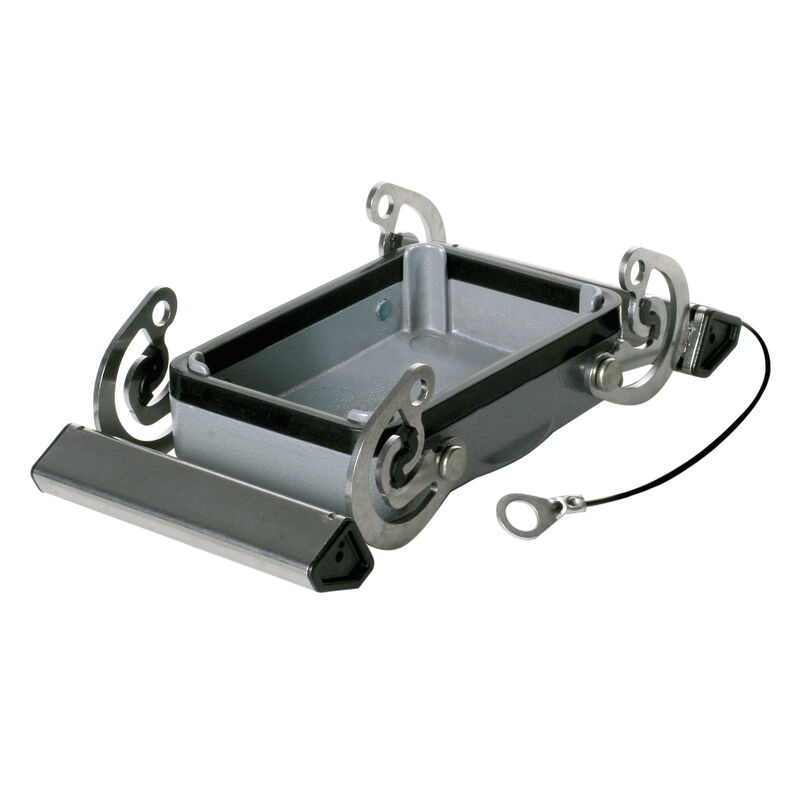

HDC 32A DMDQ 2QB
HDC 32A DMDQ 2QB

HDC 32A DMDQ 2QB

HDC enclosures, Installation size: 7, Protection degree: IP65, in plugged condition, Cover for upper part of housing, Side-locking clamp on lower side, Standard, Size of cable entries: none

Ürün No. 1665930000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 7 aksesuarıdır 11 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Versión
HDC enclosures, Installation size: 7, Protection degree: IP65, in plugged condition, Cover for upper part of housing, Side-locking clamp on lower side, Standard, Size of cable entries: none
Order No.
1665930000
Type
HDC 32A DMDQ 2QB
GTIN (EAN)
4008190422967
Qté.
1 adet

Dimensions and weights

Height
22 mm
Height (inches)
0,866 inch
Width
68 mm
Larghezza (pollici)
2,677 inch
Net weight
168 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

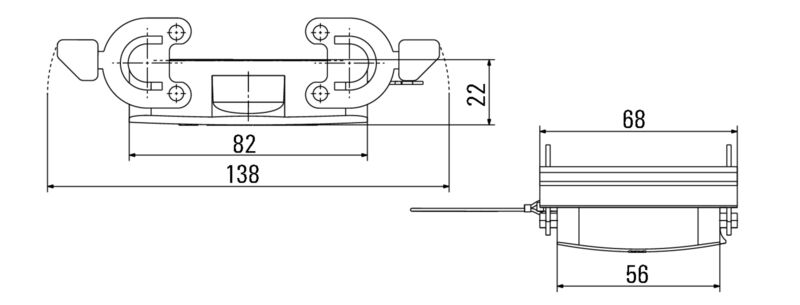

Dimensions

Cable entry
For hoods
Height of housing B
22 mm
Total length housing
82 mm
Width housing C
56 mm

General data

EMC housings
No
Housing main material
diecast aluminium
Material of locking element
Stainless steel, rust-proof
Protection degree
IP65
in plugged condition
Surface finish
Powder coating
Tightening torque
1,2 Nm

Version

BG
7
Cable entry
For hoods
Clamp version
Side-locking clamp
Cover
with cover
Design
Standard
Design of housing
Cover for upper part of housing
Design of locking system
Side-locking clamp on lower side
Dichtung
NBR
Farbe (RAL)
RAL 7035
Geeignet für ModuPlug®
No
Installation size
7
Number of cable entry sideways
0
Size of cable entries
none
Tightening torque
1,2 Nm
Top part/bottom part/lid
Cover
Type
Cover

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
