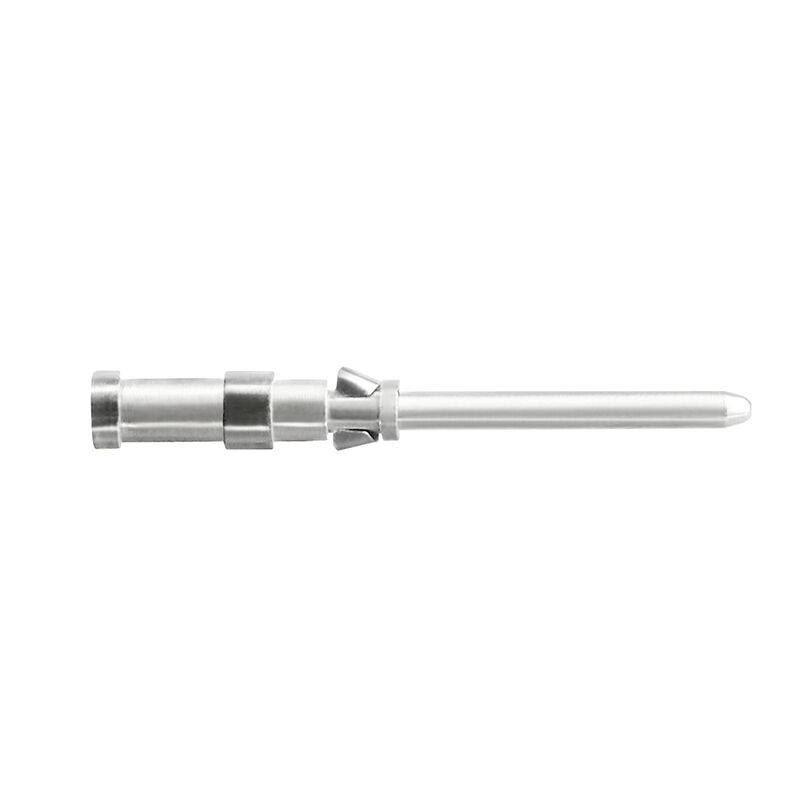

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy

Ürün No. 1651530000
Veri sayfasını indir Engineering Support Produkt Downloads
Aksesuarlar 5 aksesuarıdır 37 İlgili ürünler 20
Approvals General ordering data Dimensions and weights Environmental Product Compliance Общие данные Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
Référence
1651530000
Тип
HDC-C-HD-SM0.5AG
GTIN (EAN)
4008190400200
Qty.
100 adet

Dimensions and weights

Diameter
3,2 mm
Net weight
0,59 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c
REACH SVHC
Lead 7439-92-1
SCIP
6eabd5ae-2d6b-409e-8bdf-87c27ee10e40

Общие данные

Basic material
Copper alloy
Conductor cross-section, min.
0,5 mm²
Contact diameter, male Ø
1,6 mm
Cross-section for connected wire
0.5 - 0.5 mm²
Délka odizolování, jmenovité připojení
8 mm
Material of contact
Copper alloy
Objemový odpor
≤4 mΩ
Plugging cycles
≥ 500
Production methods
turned
Průřez vodiče, max.
0,5 mm²
Series
HD
Surface finish
silver
Typ připojení
Crimp connection
Type
Male
Verze – vložka
HD
HDD
HQ
MixMate

Classifications

ETIM 8.0
EC000796
ETIM 9.0
EC000796
ETIM 10.0
EC000796
ECLASS 14.0
27-44-02-04
ECLASS 15.0
27-44-02-04
