Download datablad Anvendte produkter

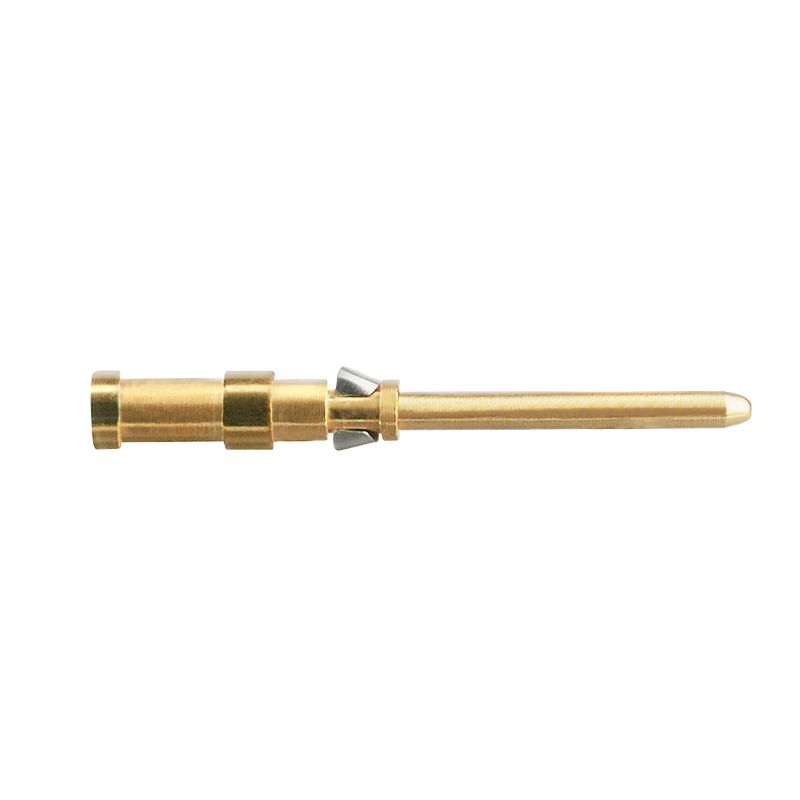

HDC-C-HD-SM2.5AU

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy

Produkt ID 1651660000

Egenskaber

General ordering data

Version	Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
Order No.	1651660000
Type	HDC-C-HD-SM2.5AU
GTIN (EAN)	4008190400330
Qty.	100 Styk

Dimensions and weights

Diameter	3,2 mm
Net weight	0,643 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	6eabd5ae-2d6b-409e-8bdf-87c27ee10e40

General data

Conductor cross-section, max.	2,5 mm²
Contact diameter, male Ø	1,6 mm
Contact material	Copper alloy
Cross-section for connected wire	2.5 mm²
Material	Copper alloy
Plugging cycles	≥ 500
Production methods	turned
Series	HD
Stripping length, rated connection	8 mm
Surface finish	gold
Type	Male
Type of connection	Crimp connection
Version insert	HD HDD HQ MixMate
Volume resistance	≤4 mΩ

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96186)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1651660000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1651660000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000796
ETIM 7.0	EC000796
ETIM 8.0	EC000796
ETIM 9.0	EC000796
ECLASS 9.0	27-44-02-04
ECLASS 9.1	27-44-02-04
ECLASS 10.0	27-44-02-04
ECLASS 11.0	27-44-02-04
ECLASS 12.0	27-44-02-04
ECLASS 13.0	27-44-02-04
ECLASS 14.0	27-44-02-04

Approvals

ROHS

Conform
