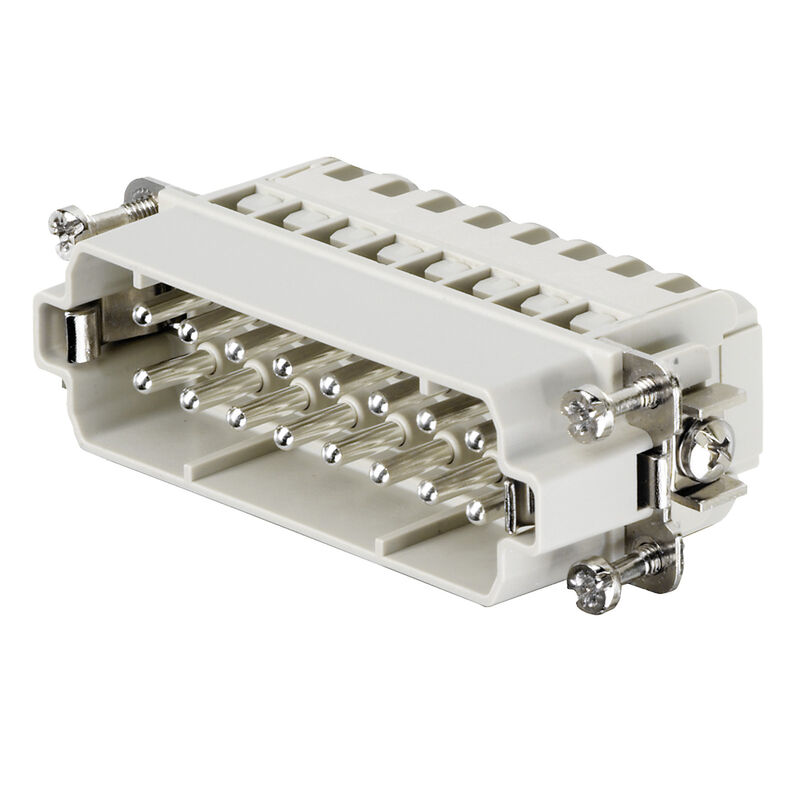

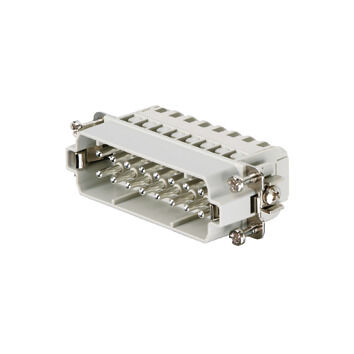

HDC HA 16 MT

HDC insert, Male, 250 V, 16 A, Number of poles: 16, Tension-clamp connection, Size: 5

Produkt ID 1896830000

Version	HDC insert, Male, 250 V, 16 A, Number of poles: 16, Tension-clamp connection, Size: 5
Order No.	1896830000
Type	HDC HA 16 MT
GTIN (EAN)	4032248592432
Qty.	1 Styk

Limit temperature

-40 °C ... 125 °C

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1 Potassium perfluorobutane sulfonate 29420-49-3
SCIP	b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance	Substance: Acetone Chemical resistance: Resistant Substance: Ammonia, watery Chemical resistance: Conditionally resistant Substance: Petrol Chemical resistance: Resistant Substance: Benzene Chemical resistance: Resistant Substance: Diesel oil Chemical resistance: Conditionally resistant Substance: Acetic acid, concentrated Chemical resistance: Resistant Substance: Potassium hydroxide Chemical resistance: Conditionally resistant Substance: Methanol Chemical resistance: Conditionally resistant Substance: Motor oil Chemical resistance: Conditionally resistant Substance: Lye, diluted Chemical resistance: Resistant Substance: Hydrochlorofluorocarbons Chemical resistance: Conditionally resistant Substance: Outdoor use Chemical resistance: Conditionally resistant

BG	5
Colour	beige
Conductor cross-section	2,5 mm²
Insulating material	PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group	IIIa
Insulation strength	10¹⁰ Ω
Low smoke acc. DIN EN 45545-2	Yes
Material	Copper alloy
Number of poles	16
Plugging cycles, silver	≥ 500
Pollution severity	3
Rated current (cUR)	Wire connection cross section AWG: AWG 14 Rated current: 14,5 A Wire connection cross section AWG: AWG 16 Rated current: 11,5 A Wire connection cross section AWG: AWG 18 Rated current: 9,5 A Wire connection cross section AWG: AWG 20 Rated current: 7,4 A
Rated current (DIN EN 61984)	16 A
Rated current (UR)	Wire connection cross section AWG: AWG 14 Rated current: 15 A Wire connection cross section AWG: AWG 16 Rated current: 10 A Wire connection cross section AWG: AWG 18 Rated current: 7 A Wire connection cross section AWG: AWG 20 Rated current: 5 A
Rated impulse voltage (DIN EN 61984)	4 kV
Rated voltage (DIN EN 61984)	250 V
Rated voltage according to UL/CSA	600 V AC/DC
Series	HA
Size	5
Surface finish	Silver passivated
Type	Male
Type of connection	Tension-clamp connection
UL 94 flammability rating	V-0
Volume resistance	≤2 mΩ

Blade size, slotted (PE connection)	SD 0.8 x 4.0
Connection type PE	Screw connection
Fixing screw	M 4
Rated cross-section	2,5 mm²
Stripping length PE connection	10 mm
Tightening torque, max. PE connection	1,5 Nm
Tightening torque, min. PE connection	1,2 Nm
Wire cross section, AWG (PE), max.	AWG 14
Wire cross section, AWG (PE), min.	AWG 20

BG	5
Blade size, slotted (screw connection)	SD 0.5 x 3.0
Conductor cross-section, max.	2,5 mm²
Conductor cross-section, min.	0,25 mm²
Material	Copper alloy
Size	5
Stripping length, rated connection	8 mm
Surface finish	Silver passivated
Type of connection	Tension-clamp connection
Volume resistance	≤2 mΩ
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 24
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire cross-section, solid, max.	2,5 mm²
Wire cross-section, solid, min.	0,5 mm²

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_73355)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1896830000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1896830000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1896830000&norm=0)
Technical Documentation	[1896830000_HDC_HA_16_MT_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_36019)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Approvals	![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202
