Egenskaber

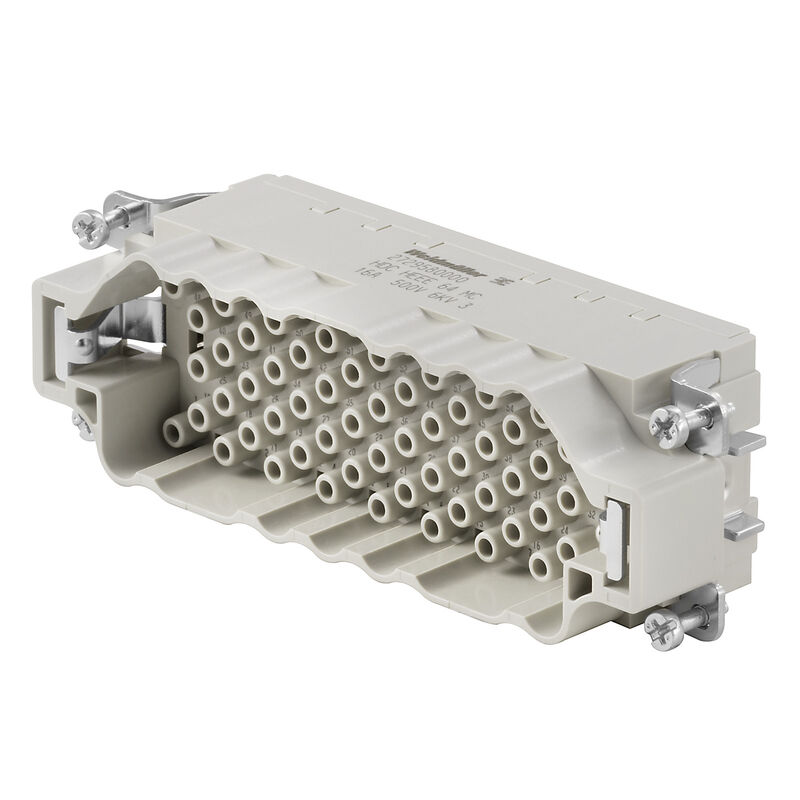

| Version | HDC insert, Male, 500 V, 16 A, Number of poles: 64, Crimp connection, Size: 8 |
| Order No. | 2729580000 |
| Type | HDC HEEE 64 MC |
| GTIN (EAN) | 4064675010449 |
| Qty. | 1 Styk |
| Net weight | 68,6 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 1609748e-c278-4c9b-b3d1-e6215d2988cd |
| BG | 8 |
| Colour | beige |
| Insulating material | PC |
| Insulating material group | IIIa |
| Insulation strength | 1010 Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Copper alloy |
| Number of poles | 64 |
| Pollution severity | 3 |
| Rated current (cUR) |
|
| Rated current (DIN EN 61984) | 16 A |
| Rated current (UR) |
|
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage (DIN EN 61984) | 500 V |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Series | HEEE |
| Size | 8 |
| Type | Male |
| Type of connection | Crimp connection |
| UL 94 flammability rating | V-0 |
| Connection type PE | Screw connection |
| Stripping length PE connection | 10 mm |
| BG | 8 |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Material | Copper alloy |
| Size | 8 |
| Stripping length, rated connection | 7,5 mm |
| Type of connection | Crimp connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 4 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177550) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2729580000) |
| Product Change Notification | [20200914 Technical change to HDC HEEE 4064 INSERTS](https://mdcop.weidmueller.com/mediadelivery/asset/900_174792) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC000438 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-05 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-05 |
| ECLASS 11.0 | 27-44-02-05 |
| ECLASS 12.0 | 27-44-02-05 |
| ECLASS 13.0 | 27-44-02-05 |
| ECLASS 14.0 | 27-44-02-05 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
Tilbehør
-
-
Produkt ID:1200700000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Produkt ID:1200800000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Produkt ID:1651460000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 4, turned, Copper alloy
-
Produkt ID:1116540000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 4.65, turned, Copper alloy
-
Produkt ID:1651440000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Produkt ID:1200600000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Produkt ID:1651450000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Produkt ID:1200500000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
-
Produkt ID:1200900000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 4, turned, Copper alloy
-
Produkt ID:1651430000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Produkt ID:1651420000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
-
Produkt ID:1471500000Pakningsenhed:100 Styk
Heavy-duty connectors, Accessories, Coding element
-
Produkt ID:1471300000Pakningsenhed:100 Styk
Heavy-duty connectors, Accessories, Coding System
-
Produkt ID:9018490000Pakningsenhed:1 Styk
Pressing tool, Crimping tool for contacts, 0.14mm², 4mm², W crimp
-
Produkt ID:9205430000Pakningsenhed:1 Styk
Pressing tool, Crimping tool for contacts, 0.14mm², 6mm², 4-indent crimp
-
Produkt ID:1003240000Pakningsenhed:100 Styk
Heavy-duty connectors, Accessories, Coding System
